K9AY++, 4-WAY beverage system and 7ANT - Remote Control

We offer classic and remote versions of our K9AY++, 4-WAY beverage system and 7ANT RF controllers. Classic version has got front panel knobs for control, remote version offers also remote control. There is rear panel D-SUB 15 male connector - when you apply +12 V voltage to any direction pin - controller disables front panel knobs and all is done by the voltages at remote control connector.

LED indicators works in all cases. If you want to use the manual control again, the remote one must be switched off (no voltage at direction pins).

Jump to

Remote Controllers
Your own controller
Our IP

Remote control UI examples
Connecton between controllers
What to buy for

K9AY++
4-WAY beverage system
7ANT


Remote controllers

1. Your own controller/existing system
2. Our IP controllers


Your own controller

  • You can use your own remote system. You are able to integrate our equipment into your existing system. For example, you have your own IP relays that control an existing part of your hamshack. Our controllers need a positive voltage (12 ~ 14 V, preferably 13.8 V) to activate the remote control and switch the different functions, see picture (you can find more in manuals):

example of remote control qro.cz hamparts.shop

Our IP controllers

  • We do have our own controllers, which are directly assigned for our RF hardware. You just need one connecting cable (D-SUB 15 female). Controllers offer web-based classic User Interface (UI) which looks like the controller front panel and also Beam Map UI - map with control buttons and right direction. Also custom solution is possible - Stream Deck console, NodeRed system etc.

There is no need to upload new firmware to the device - all new modifications and features are automatically added to the web environment without your intervention.

Advantages:

- Web-based application with automated updates
- No configuration or firmware upload needed
- Custom button labels by parameter
- Customise your UI or use our control view
- Can be controlled by Stream Deck and touchportal
- System is part of our station automation infrastructure by DM5XX's RemoteSwitch.de system
- We recommend a VPN while using remote access from outside your network in general
- Easy configuration with EASY ASSISTANT

OLI IP 12

Simply controller for one device. This small box is directly designed for our K9Y++, 4-WAY beverage system and 7ANT. Simple connection with one D-SUB 15 female cable and a well protected 10/100 Mbit LAN.

This controller allows you to connect one K9AY++, 4-WAY beverage system or 7ANT.

OLI IP 12 remote controller for K9AY++ remote antenna, for 4-WAY beverage remote system, for 7ANT remote control controllers byl qro.cz hamparts.shop

REMOTIUS 64

It is a multi-purpose IP controller. It allows you to connect more of our products directly, also your products or external relays to control different devices. Up to three K9AY++, 4-WAY systems or 7ANT can be directly connected to banks 1 to 3 - also in various combinations. Bank 4 has 16 universal outputs. The controller also allows multiple temperature sensors to be connected and gated on a web page.

REMOTIUS 64  remote controller for K9AY++ remote antenna, for 4-WAY beverage remote system, for 7ANT remote control controllers byl qro.cz hamparts.shop


Remote control UI examples

Blog post will come soon

Three basic ways to go:

- Classic UI - looks like the RF controller front panel
- Beam Map - Azimuthal map with control buttons
- Custom - Stream Deck, NodeRed etc.

remote control options qro.cz hamparts.shop

K9AY example remote controller options qro.cz hamparts.shop

7ANT remote controller remote control options qro.cz hamparts.shop

beam map remote control option qro.cz hamparts.shop

Mike DM5XX has prepared Entry Point and Easy Assistant pages. This is the best way to go, see all possibilities of our UIs.
Please, start with ENTRY POINT manual page
QUICK UI setup link is there: EASY ASSIST
Please, follow our YouTube channel


Connection between controllers

You need to connect RF controller to the IP one by the 15 pin D-SUB cable
D-SUB connectors are included but you have to solder wires to connectors
Or you can use another solution:

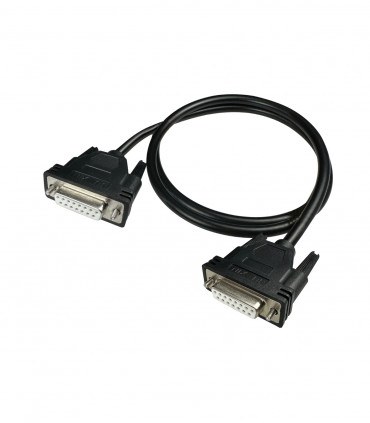

- Ready to use 1m cable

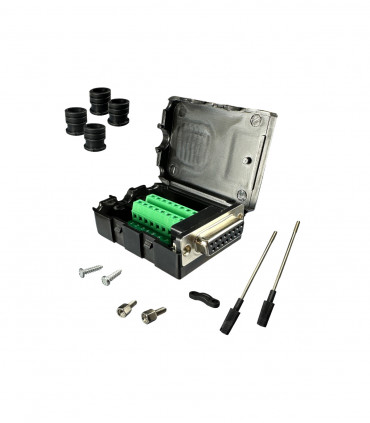

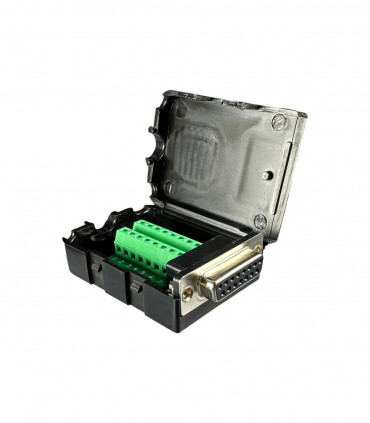

- D-SUB connectors with screw terminal - PCB or enclosure version


What to buy for:

There are the parts you need to have complete working remote system

K9AY++



4-WAY beverage system



7ANT - 7 RX antenna switch or system



Related articles
Related products
185.13 € (tax incl.)
This is IP controller designed for direct connection to K9AY++ and 7ANT RC controllers.
326.70 € (tax incl.)
This is IP controller designed for direct connection with our K9AY++/4-way and 7ANT controllers.
333.96 € (tax incl.)
This is an interesting antenna controller with built in BPF, preamp, protections, bias tee, RX/TX antenna switch and much more. It is designed for K9AY (and similar loops) and for the four-way Beverage system....
459.80 € (tax incl.)
This is small four directional RX antenna for lower HF bands. Ideal for portable use as well as for home installation. Antenna has got Band Pass Filters and Preamplifier in the feed point of the loops. It is advantage...
96.80 € (tax incl.)
This is a switching power supply with a fixed voltage of 13.8 V. Maximum current 30 A and the possibility of changing the switching frequency and thus possible interference.
108.90 € (tax incl.)

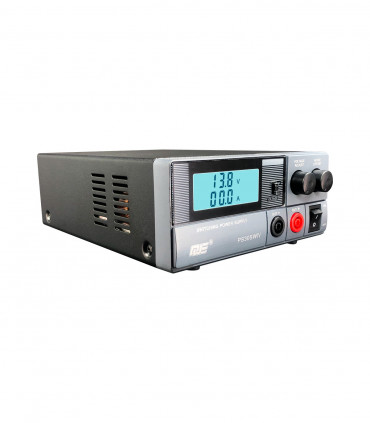

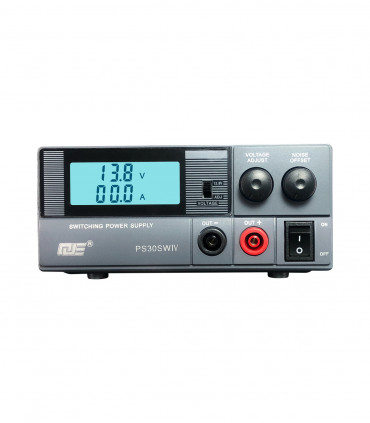

This is a switching power supply with a varibale output voltage from 9 to 15 V and switch for fixed voltage of 13.8 V. Maximum current 30 A and the possibility of changing the switching frequency and thus possible...
