Single wire Beverage MK2 BOG

Single wire Beverage MK2 BOG

Single wire Beverage RX antenna on ground

Read moreShow less

88.33 € (tax incl.)

88.33 €
73.00 € (without tax)

connector

in stock, shipped in 2-3 days

Price history

The lowest price in the 30 last days was 88.33 €

Brand:

Add to compare0

Love

Add to wishlist

Description

The classic single-wire Beverage antenna consists of a long conductor placed very close to (on/under) the ground. The element of this antenna must be considerably shorter than that of a traditional Beverage antenna with an elevated wire. Here, the overall length is a crucial factor — exceeding it can cause the antenna to stop operating correctly. The optimal length depends on soil characteristics and the chosen frequency band, and it can vary significantly with location (QTH) and seasonal conditions, particularly between dry and wet periods.

Beverage antennas offer an exceptionally affordable and reliable solution for enhancing long-distance (DX) reception on low-frequency bands.

The MK2 version features an enhanced transformer box design, adds a 180-degree phase rotation option, and maintains multiple protection circuits along with a common-mode filter. It also provides the ability to select between two impedance ratios. With the 0–180° phase shift capability, the Beverage kit can be integrated into a phased array system — operating as a Broad-Side configuration at 0°, or as an End-Fire system when using both 0° and 180° phases.

The universal terminator uses a set of 1W resistors that can be configured via jumpers to achieve resistance values from 240 to 900 Ohms, with an additional 50 Ohm option. It is compatible not only with Beverage antennas but also with BOG setups and various loop designs such as DHDL and K9AY. The unit also includes multiple built-in protection features.

Using

Low band receiving antenna
Lower noise, better directivity
Allows phased array: Broad-side, End-Fire
Universal terminator

Main functions

Broadband 0.1 to 30 MHz
Single directional
Low noise
Protections - high voltage/current
Termination resistance - universal terminator
Two different impedance ratios: 1:4 or 1:6.25
Common-mode coax choke included
Electrostatic protection with neon lamps
Overvoltage protection: GDT 75V
High power protection with SuperFuse
DC voltage isolation
Stainless screws
High quality connectors
IP56 boxes - recommended to protect it against water
Feeder size 100x100 mm
Terminator size 64x58 mm
ASSEMBLED VERSION

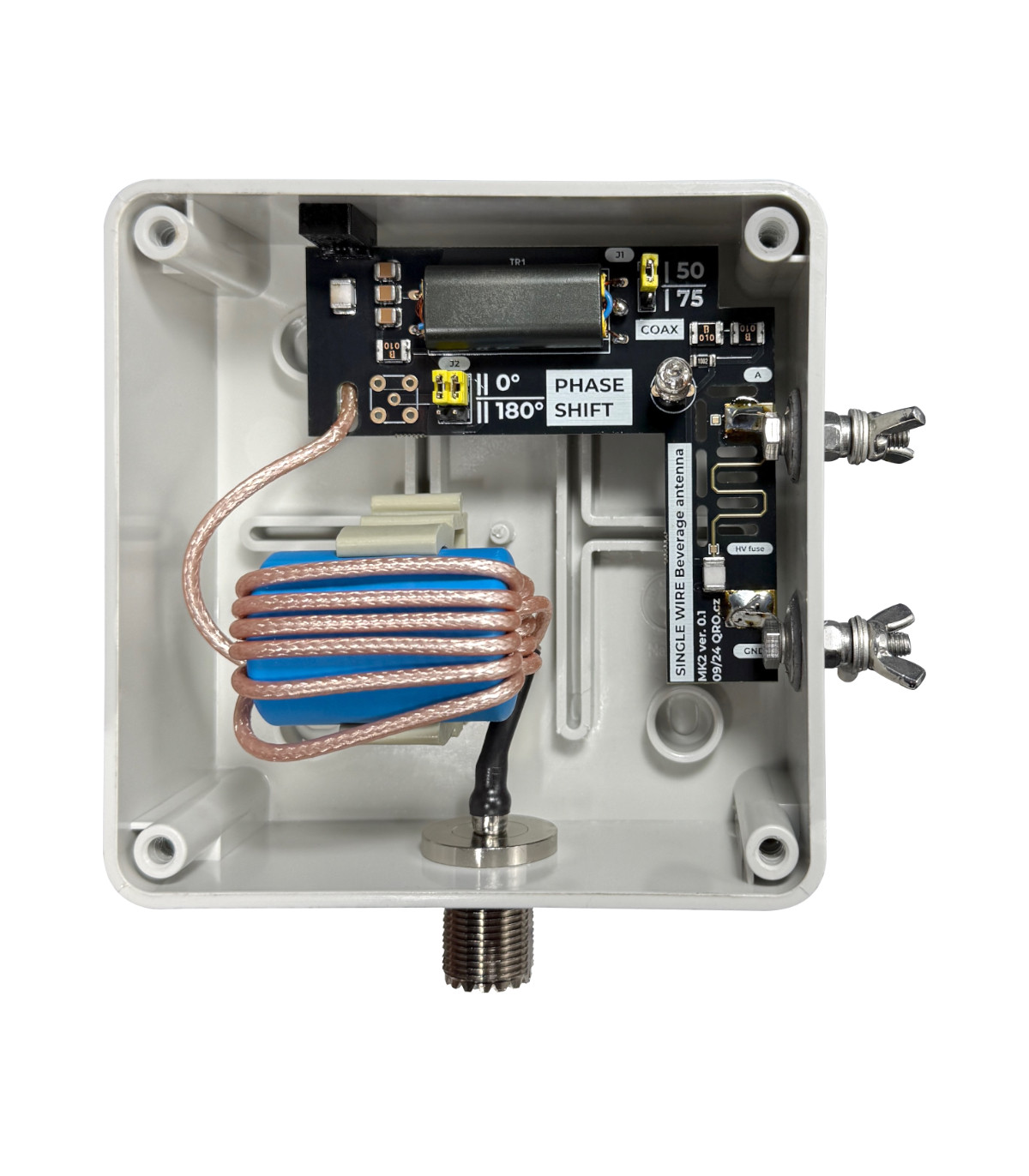

Parameters - Feed point BOX

Transformer with 1:4 or 1:6.25 ration (by jumper)
Coax impedance 50 or 75 Ohm (internal jumper)
Gas Discharge Tube 75V
Neon lamp 60V
SuperFuse 100mA
Common-mode choke (50Ohm coax)
Phase 0 or 180 deg.: by jumper
DC voltage isolation
SO-239 output connector
Feeder size 100x100 mm

Parameters - Universal Terminator BOX

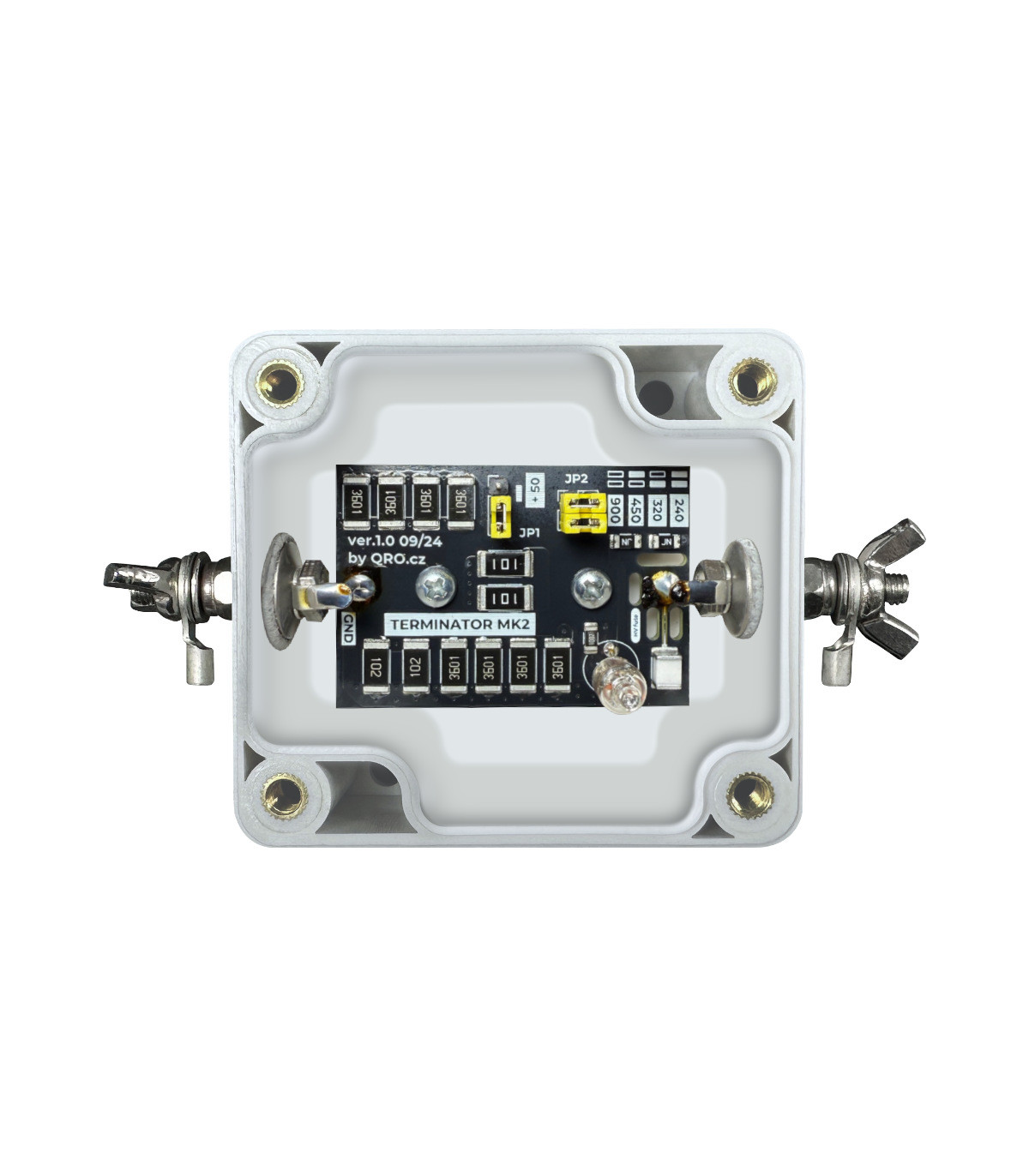

Selectable: 240, 320, 450, 900 Ohm
Easy to add + 50 Ohm by jumper
Gas Discharge Tube 75V
Neon lamp 60V
SuperFuse 100mA
Power rating up to 5W
Resistors rating 8W
Can be used for BOG, classic, Loops etc.
Terminator size 64x58 mm

PHASING into array

Can be simply phased into an array
2 or 3el Broad-Side with 0deg. settings
2el End-Fire with 0 and 180deg.
More in manual and technical article

Available as

ASSEMBLED: ready to use

Included in package

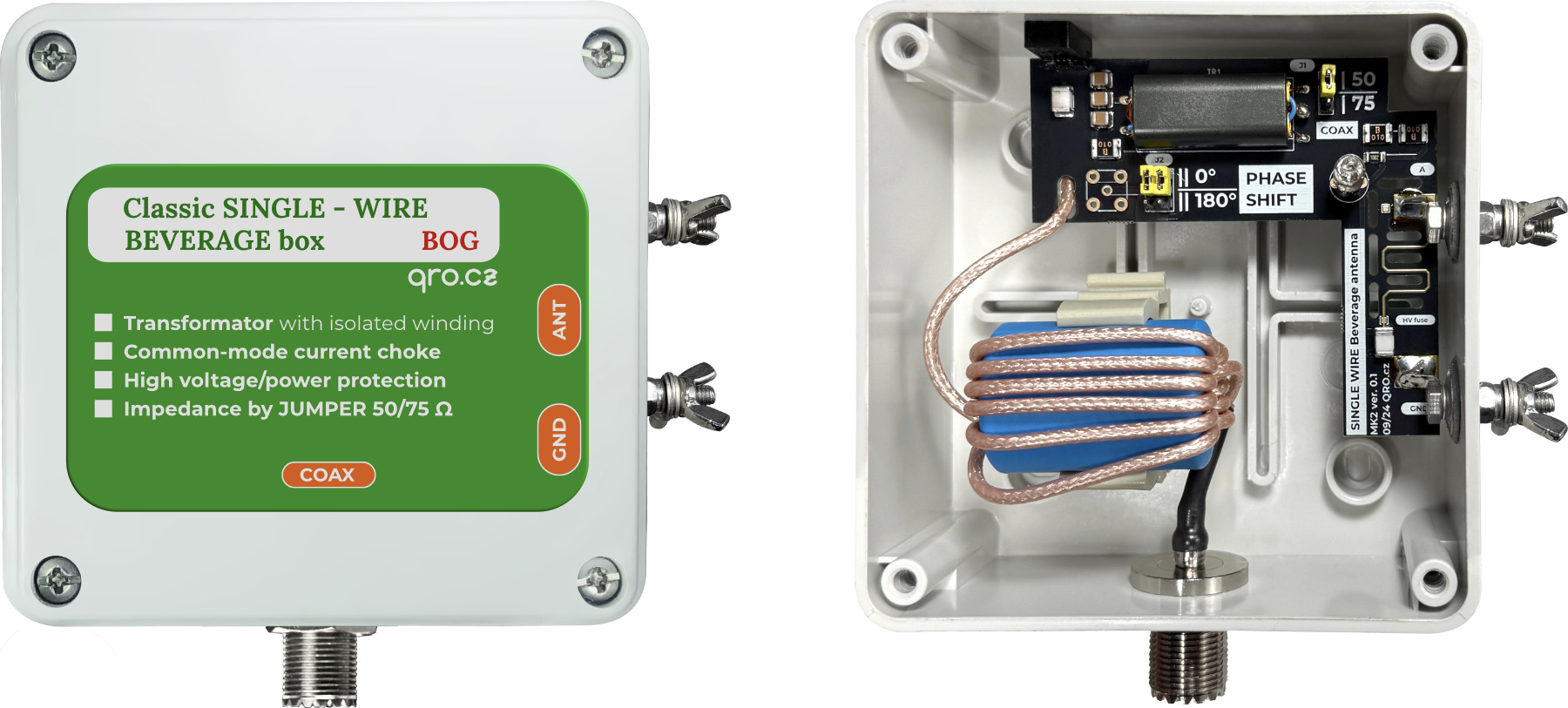

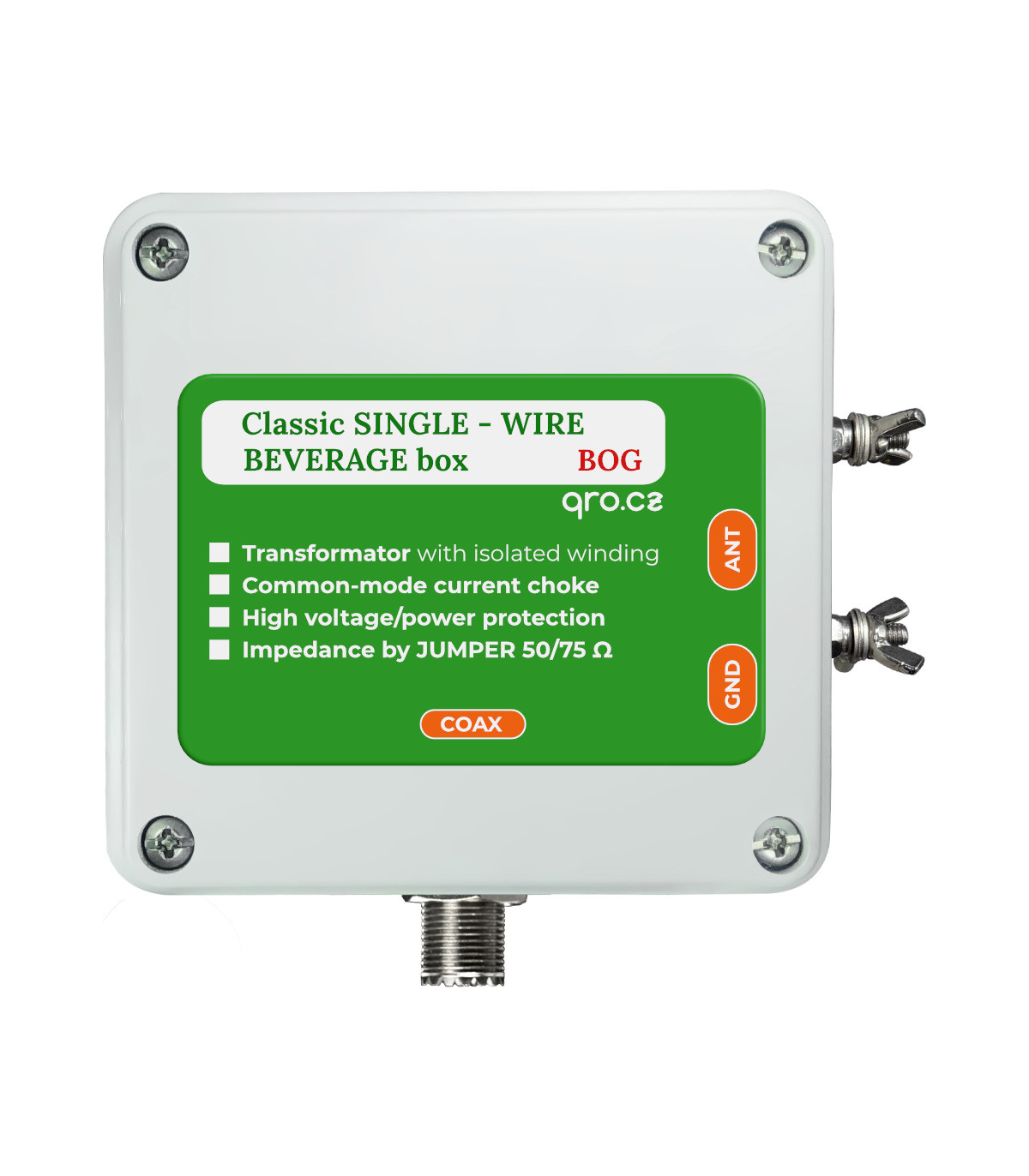

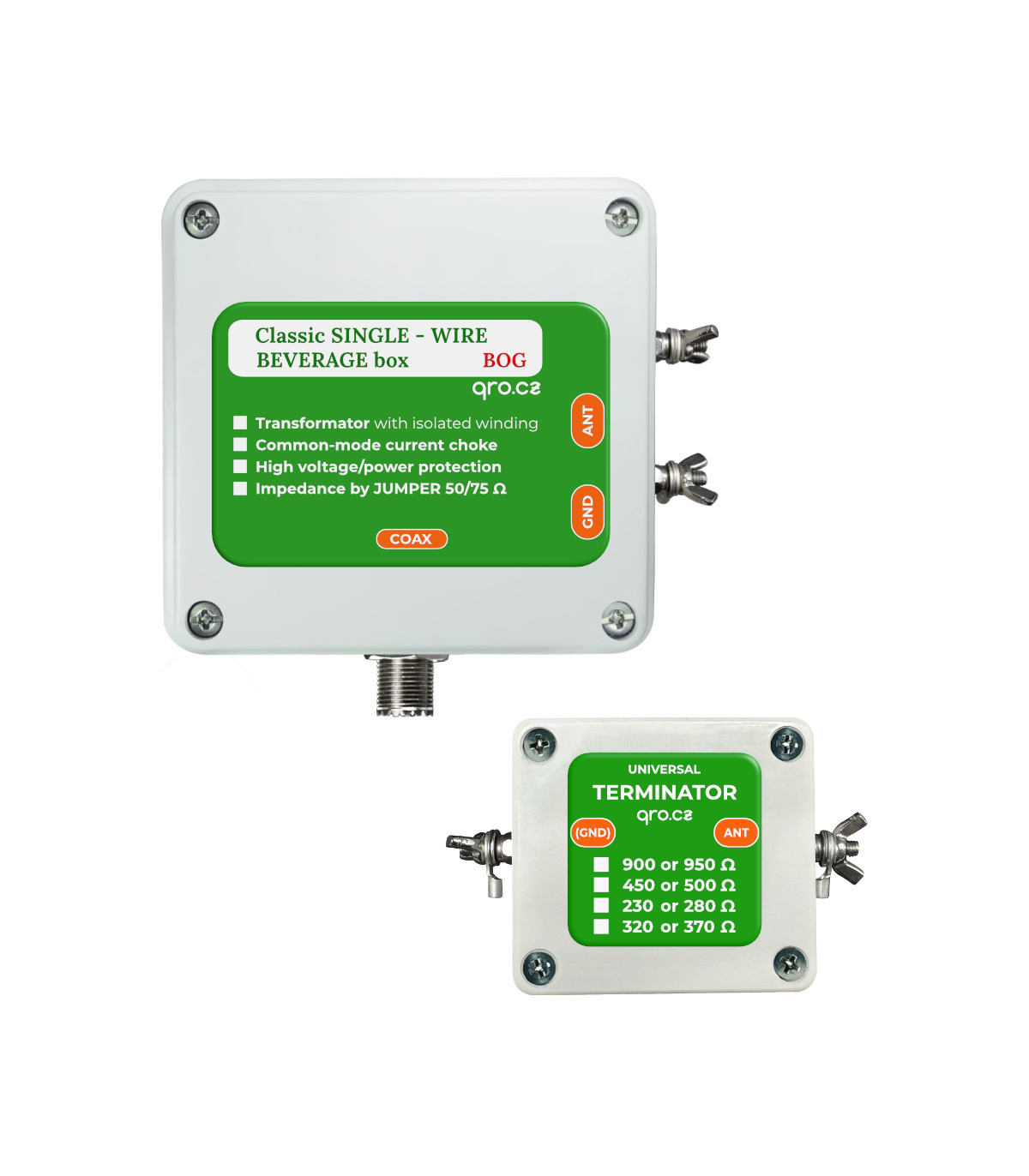

Single wire box assembled and tested

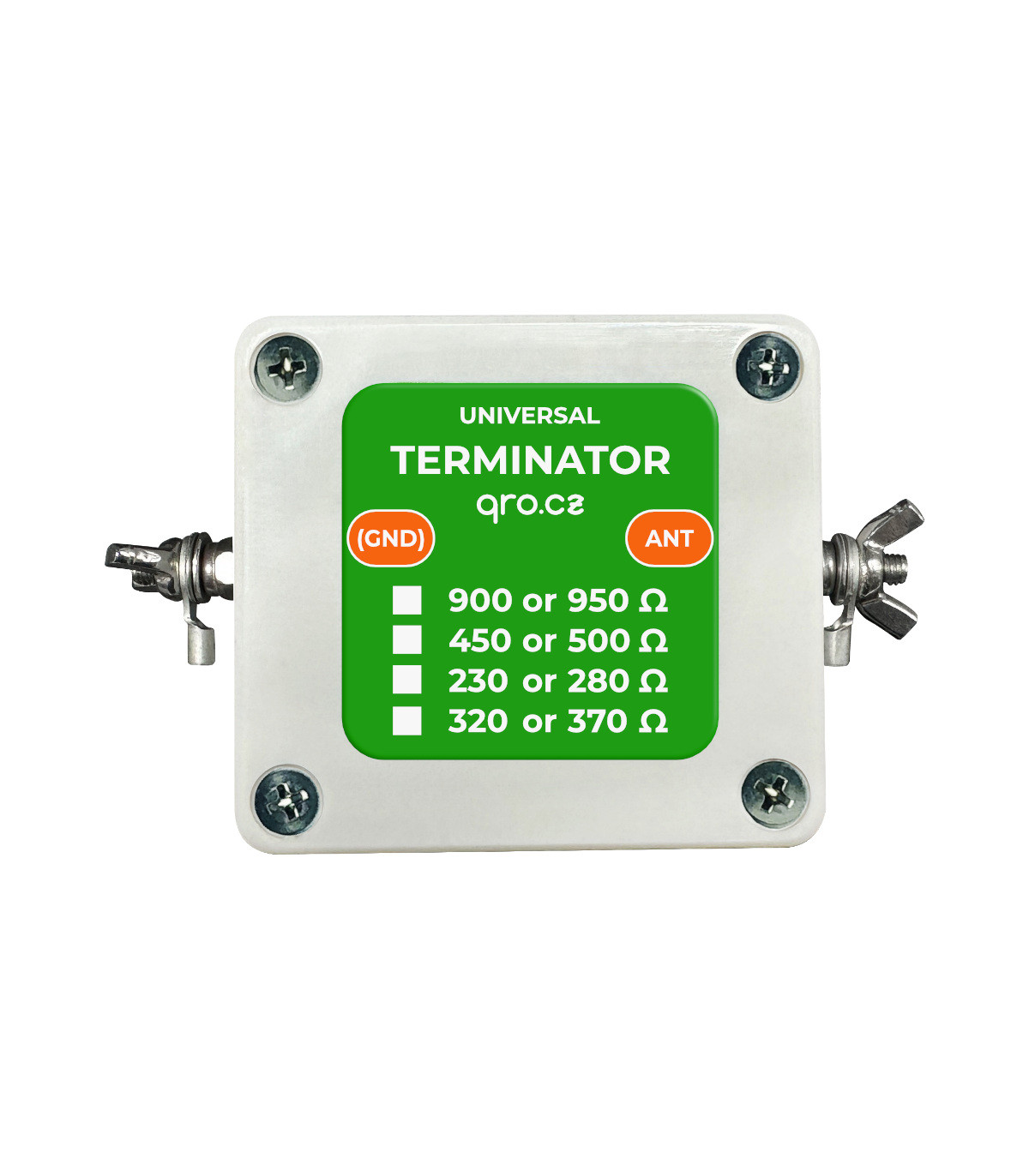

Universal terminator assembled and tested

Manual

If you want to know more please check our wiki with Single wire Beverage MK2 BOG manual and technical article.

block diagram

example of right configuration with CMCC

example of RX antenna arrays

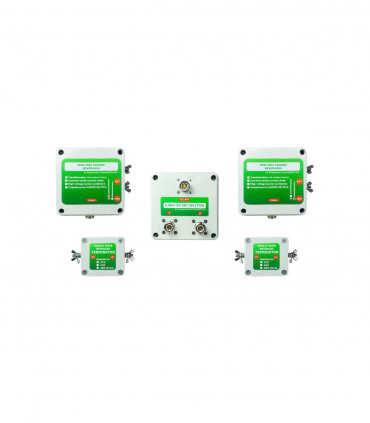

2EL End-Fire beverage antenna array CLASSIC

235.95 € (tax incl.)

195.00 € (without tax)

This is 2 element beverage antenna array. In this End-Fire array the beverage antennas are very close to each other. Usually 2 to 6 meters. One beverage is shifted to front by the stagger distance. This array needs...
