1-to-2 RF switch

High Power 1-to-2 RF and double RCA (PTT, ALC) switch

Read moreShow less
181.50 € (tax incl.)
181.50 €
150.00 € (without tax)
version
  • short
  • dummy load
in stock, shipped in 2-3 days

Price history     Price history

The lowest price in the 30 last days was 181.50 €

Brand:
Add to compare0
Love
Add to wishlist
Description

This is High Power RF switch with two input/output and one common ports. It also contains a double switch for two other (analogue) signals - e.g. PTT and ALC. The switch is available in two versions. In the first, the unused port (1, 2) is grounded, in the second it is connected to an internal 50 ohm resistor. When the control voltage is not connected, neither port (1 or 2) is connected to the common port. The control board includes a first win protection. This means that if one port is switched on, the other is not active. The switch is controlled by DC voltage and there are two ways to use it - to switch on one or the other port by applying voltage to 1 or 2, or to connect 13.8V, this will switch on port 1 and applying voltage to port 2 will switch on port 2.


Using

  • Two TRX to one PA
  • Two PA to one TRX (6m/HF)
  • Middle switch between 6-to-2
  • Switch between triplexers

Main functions

  • Frequency range DC-50 MHz
  • Two ports to one common
  • Characteristic impedance 50 Ohm
  • Power rating DC to 30 MHz
  • 4 kW PEP
  • Power rating 50 MHz
  • 2 kW PEP
  • Very high isolation > 100 dB to 30 MHz
  • Two RCA switches 1A 30V DC
  • RCA switch for PTT and ALC
  • Controlled by DC voltage up to 14V
  • Two ways of control
  • High quality PCB thickness 2 mm
  • Power consumption < 3 W
  • High quality SO-239 connectors
  • Aluminium shield enclosure with holder
  • AL box size W x H x L = 200 x 100 x 60 mm
  • Stainless screws
  • ASSEMBLED and TESTED VERSION

Parameters

  • Frequency range DC-50 MHz
  • Characteristic impedance 50 Ohm
  • Low insertion loss
  • Very high isolation > 100 dB to  30 MHz
  • Control voltage DC 12.5 to 14 V
  • Control current up to 0.3 A
  • Two RCA switches 1A 30V DC
  • Unused port grounded or 50 Ohm - manual
  • Power rating DC to 30 Mhz
  • 4 kW PEP
  • Power rating 50 MHz
  • 2 kW PEP

Two versions

SHORT

  • In this version, unused ports are connected to ground - shorted. Without control voltage, both ports are grounded.


DUMMY LOAD

  • In this version, the unused ports are connected to an internal 50 Ohm resistor. Without control voltage, both ports 1 and 2 are connected to this resistor.
  • The internal 50 Ohm resistor is a 100W chip. However, it does not include cooling. The possible load is 100W peak for 2 seconds. In a 50:50 ration, the resistor can be loaded with 5W of RF power.


Switch control

The switch can be operated in two ways:

The first is the classic one,
where no port is connected without voltage. When voltage is applied to PORT 1, port 1 is active, same for port 2.

The second way is by applying voltage to port 13.8V, this will turn on port 1 and by applying voltage to port 2 it will switch to port 2. More info in the manual.

The voltage is applied against the common port GND.


Available as

ASSEMBLED SHORT version: ready to use
ASSEMBLED DUMMY LOAD version: ready to use

Included in package

Switch assembled and tested


Manual

If you want to know more please check our wiki with 1-to-2 switch manual.

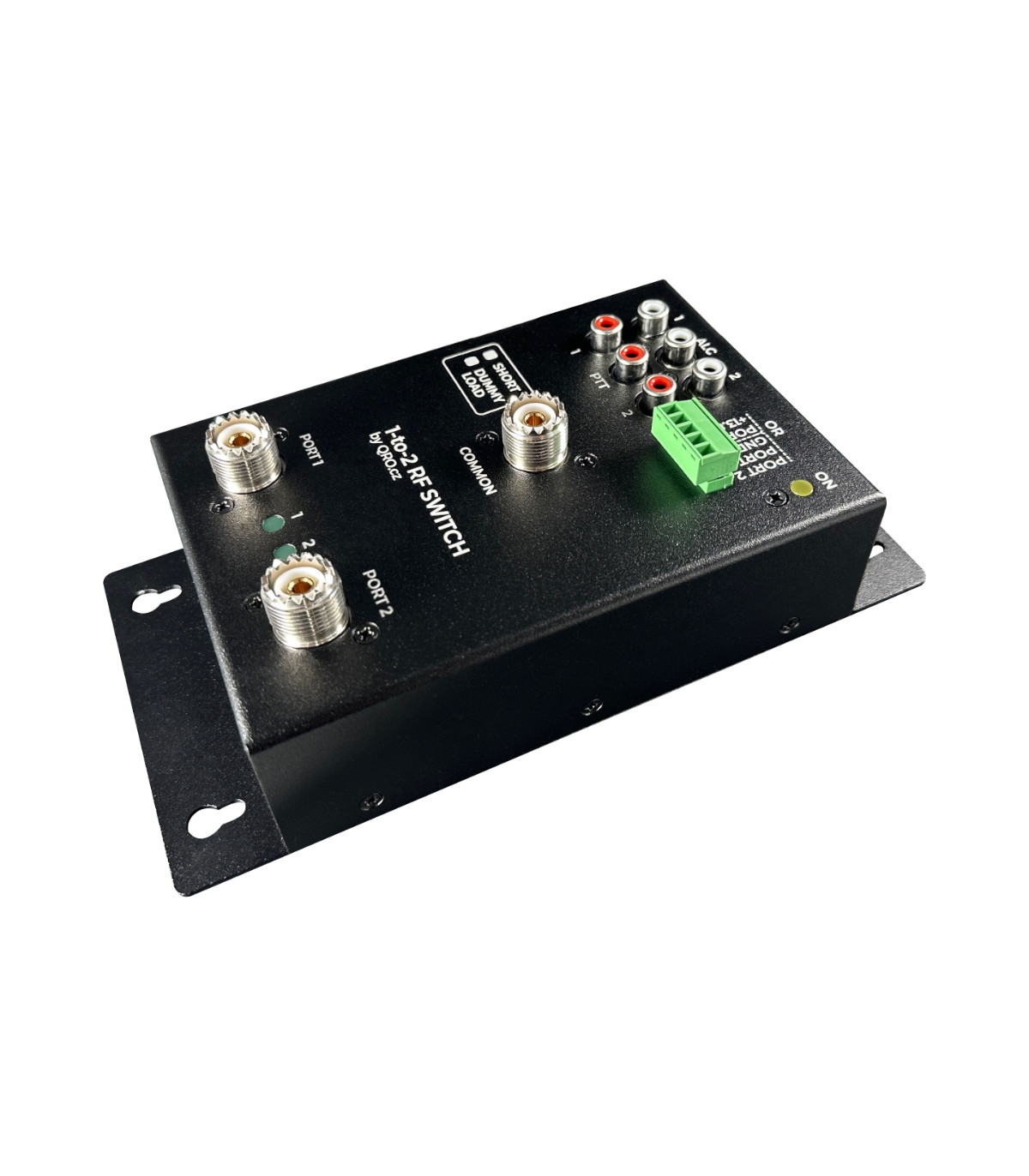

1-2 f switch assembled in enclosure by qro.cz hamparts.shop


Isolation Port 1 to Common

measurement 1-2 rf switch qro.cz hamparts.shop

S21 matching Port 1 to common

measurement 1-2 rf switch qro.cz hamparts.shop

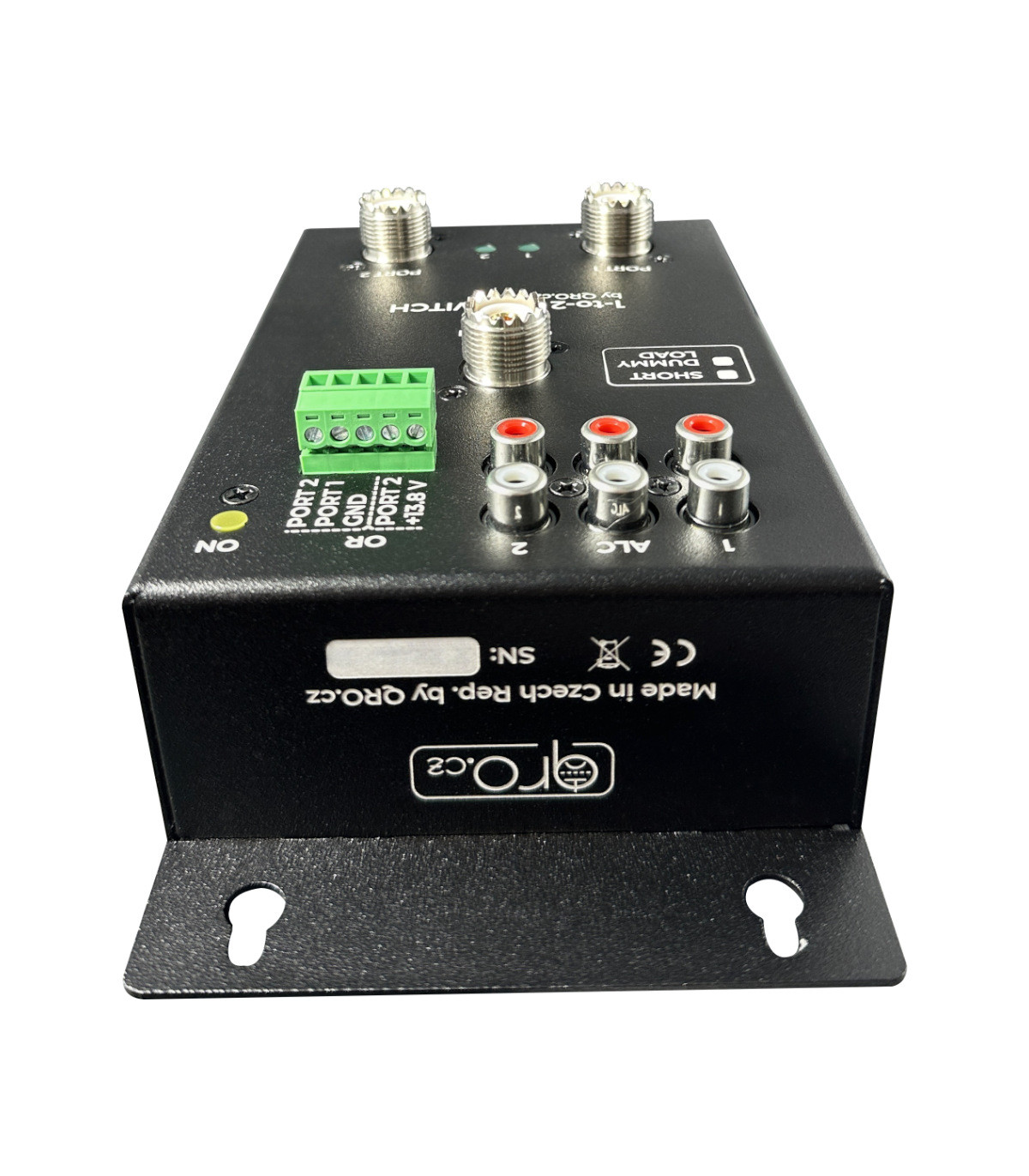

1-2 rf switch assembled by qro.cz hamparts.shop

1-2 rf switch by qro.cz hamparts.shop

1-2 rf switch by qro.cz hamparts.shop

Read moreShow less
Product Details

Data sheet

type
ASSEMBLED
design
in enclosure
usage
RX + TX
impedance
50 Ohm
frequency range
DC to 60 MHz
product dimensions
200x100x60 mm - al box with holders
product weight (brutto)
0.61 kg
package dimensions
27.5x22.5x9.5 cm

Specific References

ean13
1000090115133
