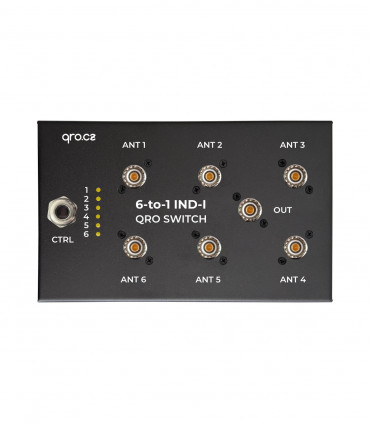

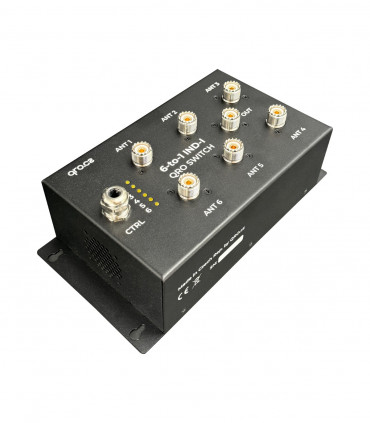

6-to-1 antenna switch

High Power 6-to-1 antenna switch - six outputs to one input.

Read more
connector
  • N
  • PL
Brand:
Add to compare0
Love
Description

This is High Power six way switch. It can handle up to 4 kW. You can use it for bank of filters or antenna switching.


Using

  • Six port antenna switch
  • You can use two pieces for switching bank of six filters

Main functions

  • Six outputs to one input
  • Frequency range DC-60 MHz
  • Characteristic impedance 50 Ohm
  • Power rating DC to 30 MHz
    • 3 kW continue wave
    • 4.5 kW PEP (SWR < 1:1.7) - tested with OM-4000
    • 50 MHz 1.5 kW
  • High quality PCB thickness 2 mm
  • Power consumption < 3 W
  • Disconnect ports are shorted
  • High quality connectors
  • Aluminium shield enclosure with holder
  • Aluminium mounting holder with bracket
  • AL box size 190x120x150 mm
  • Weight 1.4 kg
  • Stainless screws
  • ASSEMBLED VERSION

Parameters

  • High Power up to 4 kW
  • Low loss and good isolation
  • Switching by +12 V max. 200 mA


Available as

ASSEMBLED: ready to use
KIT: all part + PCB (without AL box) - KIT VERSION
PCB: only PCB
Connectors: PL SO-239 or N

Manual

If you want to know more please check our wiki with 6-1 switch manual.



version with PL SO-239 connectors

antenna swtich 6-1 qro.cz hamparts.shop



antenna swtich 6-1 qro.cz hamparts.shop



version with N connectors

antenna swtich 6-1 qro.cz hamparts.shop



antenna swtich 6-1 qro.cz hamparts.shop



Example with BCD to DEC

- need four (five) wires between controller and BCD to DEC converter
- GND, (+12V) and three control wires
- output must be with TBD driver (+ out)

BCD to DEC TTL version converter with 6 to 1 antenna switch by qro.cz hamparts.shop

Example with BCD to DEC TTL

- need three (four) wires between controller and BCD to DEC converter
- GND, (+12V) and three control wires
- output must be with TBD driver (+ out)

BCD to DEC TTL version converter with 6 to 1 antenna switch by qro.cz hamparts.shop
