Stack Match 1-2

Antenna stack match with two outputs and phase shifter.

Read moreShow less
332.75 € (tax incl.)
332.75 €
275.00 € (without tax)
connector
  • 7/16
  • PL
version
  • Medium Power External
  • Medium Power Internal
  • High Power External
  • High Power Internal
in stock, shipped in 2-3 days

Price history     Price history

The lowest price in the 30 last days was 332.75 €

Brand:
Add to compare0
Love
Add to wishlist
Description

This stack match 1-2 is designed for impedance match two antennas to one TRX. Both outputs are in phase (BiP) or out of phase (BoP). Stack Match allows any of the four combination for: upper - lower - BiP or BoP. Could be controlled independently for RX and TX (depends on controller). This Stack Match works with Mono-band antennas as well as Tri-band and Multi-band antennas (if wide band phase transformer is used).


Using

  • Yagi antennas stacking (one tower)
  • Antennas are drive IN Phase (BiP) or OUT Phase (BoP)
  • Multi beaming - antennas to more directions (yagi, vertical, dipoles...)
  • Phasing two antennas: 0 deg or PH line added

Main functions

  • Two outputs to one input
  • Internal Wide Band or External Phase Shifter
  • Antennas are driven IN Phase (BiP) or OUT (BoP)
  • All combinations can be selected: ANT1, ANT2, BiP, BoP
  • Status LED indicators
  • Our own cores with great HF parameters
    • QRO64-61 for power up to 3kW
    • QRO64-2D-61 for power up to 5kW
  • Two relays in series 4x8A in RF lines
  • High quality PCB thickness 2 mm
  • Power consumption < 6 W
  • High quality ATC RF capacitors
  • High quality connectors
  • Relay voltage 12V
  • Aluminium shield enclosure with holder
  • Aluminium mounting holder with bracket
  • AL box size 222x145x75 mm
  • Stainless screws
  • ASSEMBLED and TESTED VERSION

Parameters

  • Low insertion loss
  • Impedance matching for 2 antennas
  • Frequency range: 1.8 MHz to 30 MHz (could be made for 6m too)
  • Power rating MP < 3kW and HP < 5kW. Normal CW, SSB, RTTY DX operation. In contest mode: CW, SSB 75% and RTTY 50% of HF power


Available as

ASSEMBLED: ready to use
PCB: only PCB
Connectors: PL SO-239 or 7/16 (female with gold plated and PTFE)

RECOMMENDATIONS TO BUY:

Included in package

Stack match assembled and tested
Mounting holder with bracket - image


Manual

If you want to know more please check our wiki with Stack Match 1-2 manual.

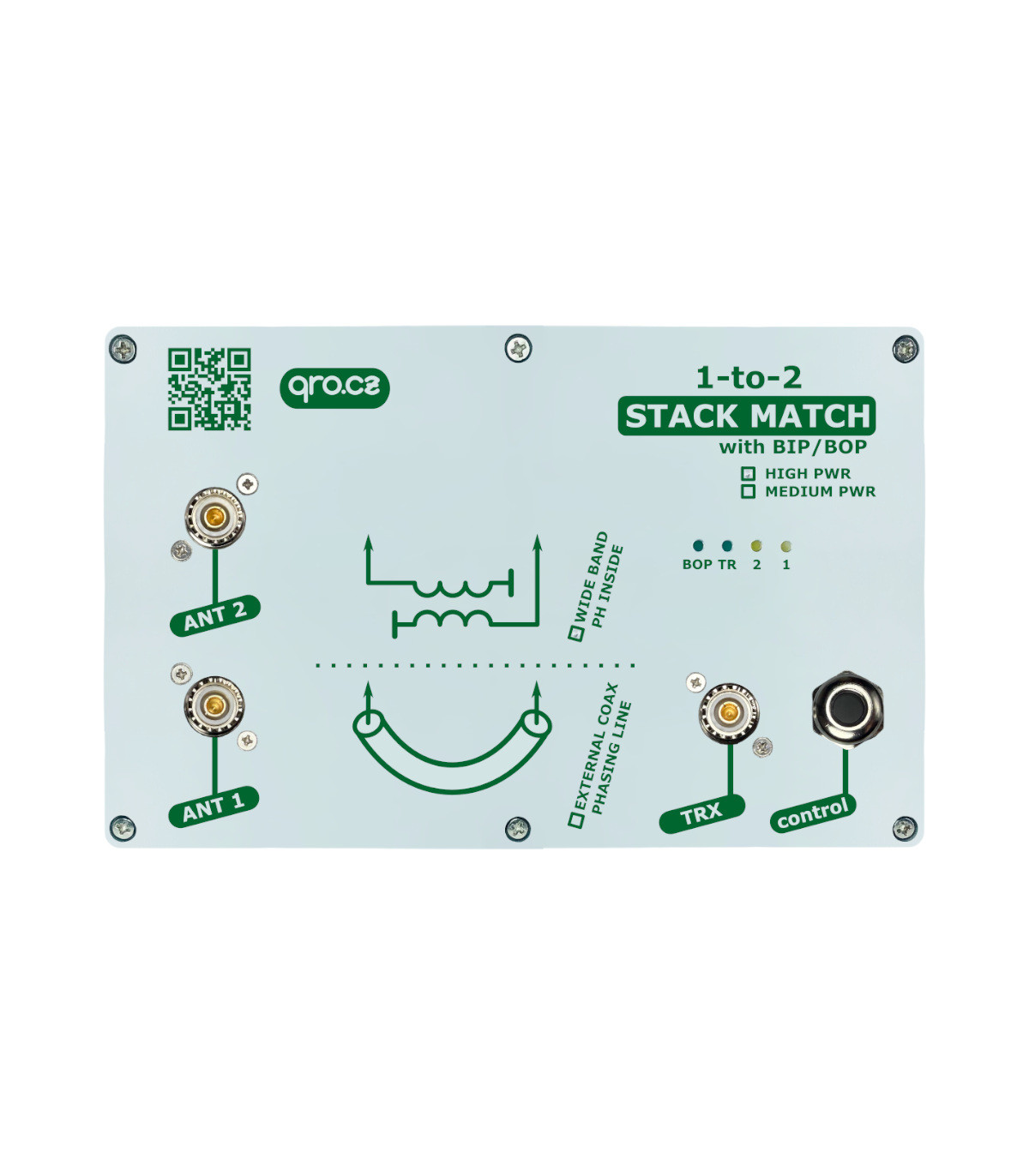

external version high power with PL SO-239 connectors

stack match 1-2 external high power qro.cz hamparts.shop

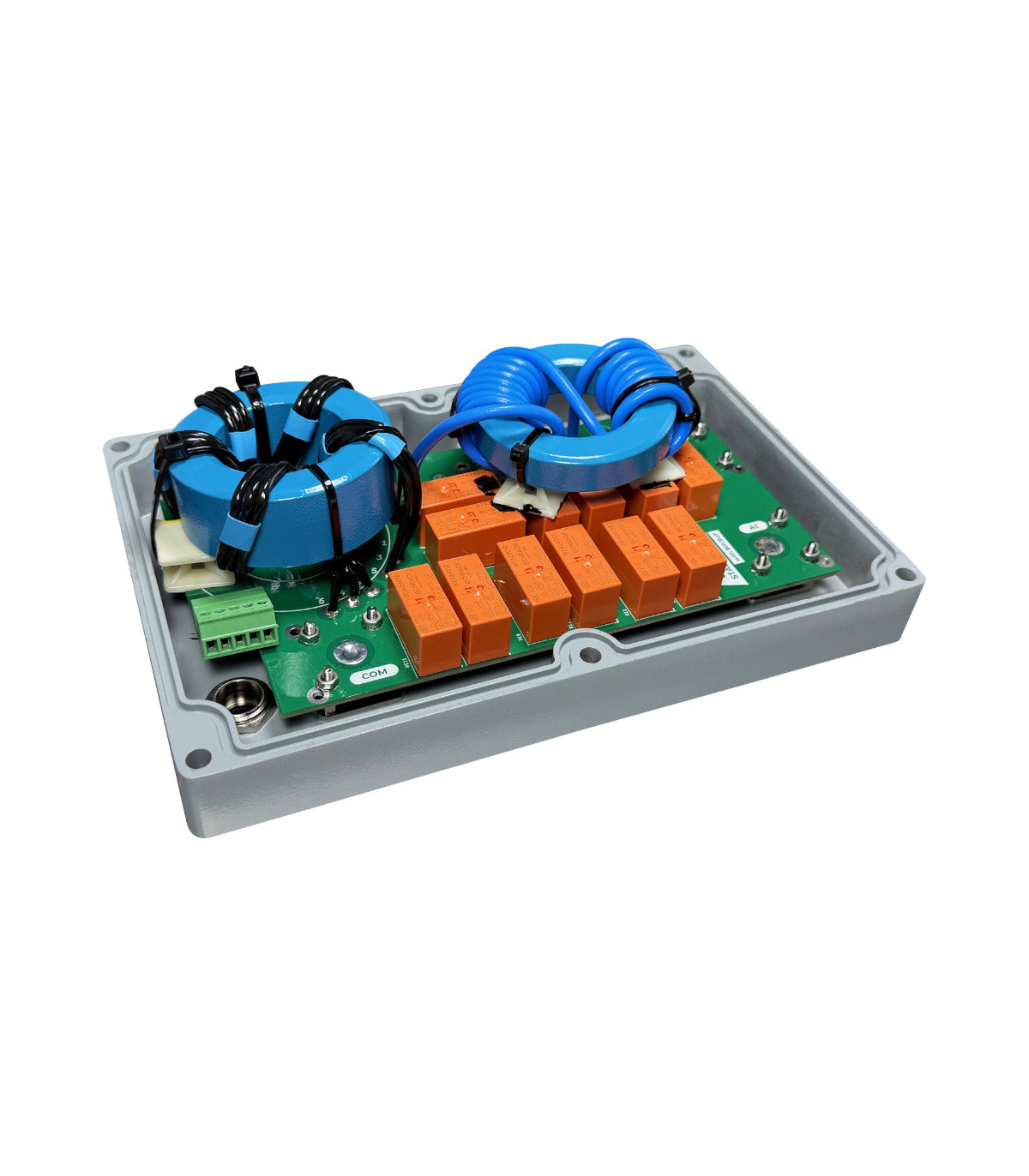

external version medium power with 7/16 connectors

stack match 1-2 external medium power qro.cz hamparts.shop

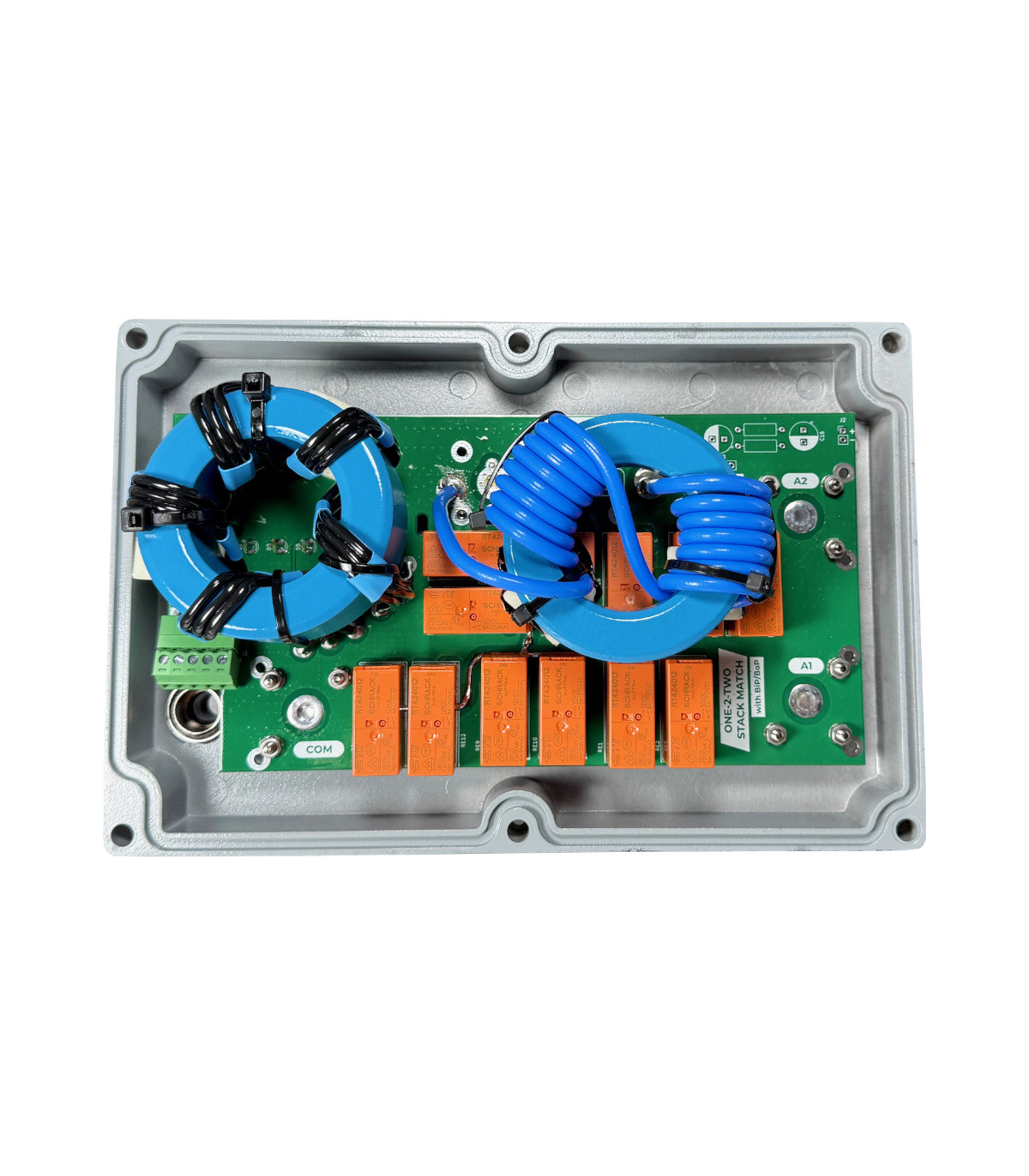

stack match 1-2 external high power version

stack match 1-2 external high power qro.cz hamparts.shop

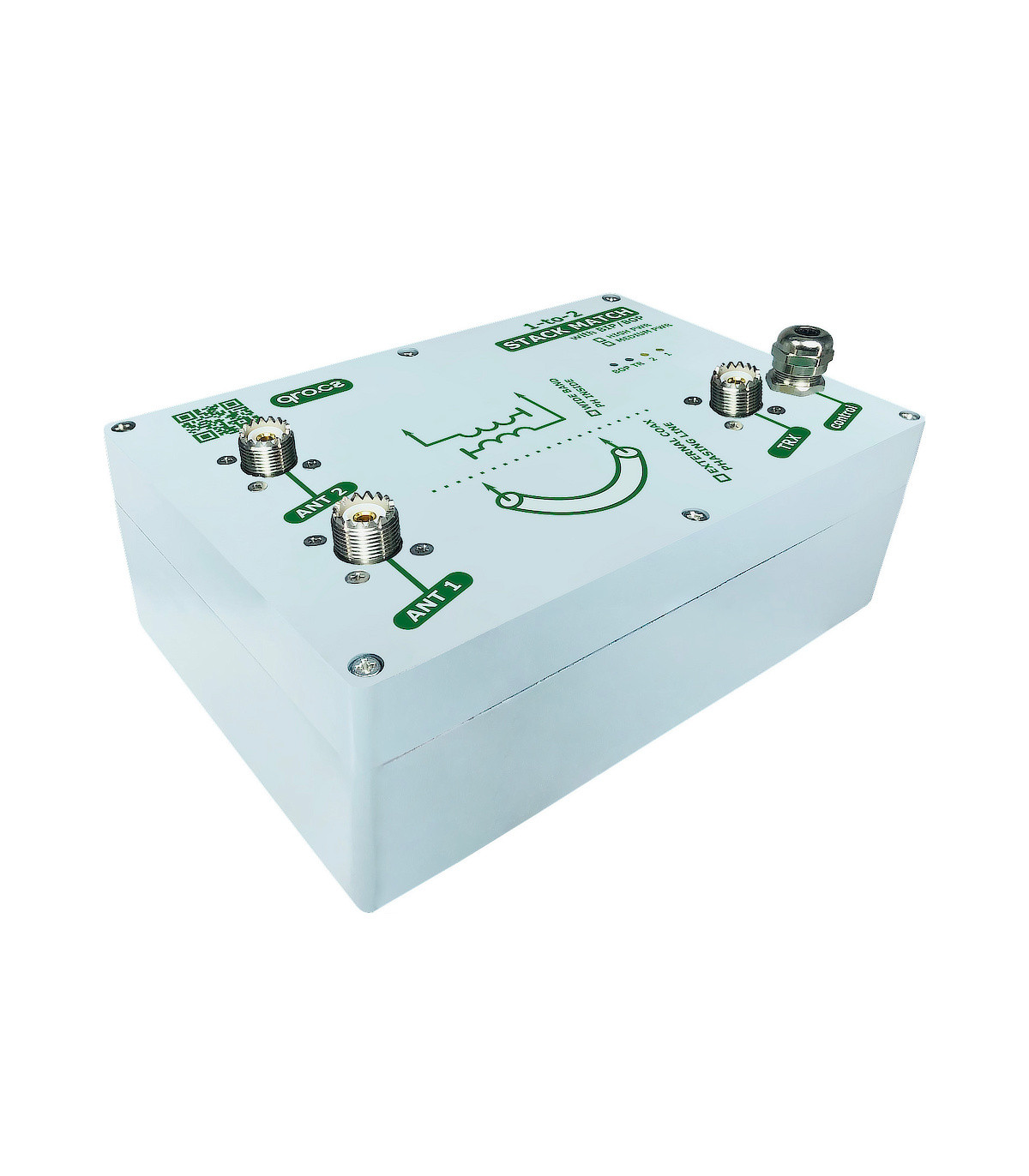

internal version medium power with PL SO-239 connectors

stack match 1-2 internal medium power qro.cz hamparts.shop



internal version medium power with 7/16 connectors

stack match 1-2 internal medium power qro.cz hamparts.shop



stack match 1-2 internal high power version

stack match 1-2 internal high power qro.cz hamparts.shop



stack match holder qro.cz hamparts.shop



stack match 1-2 multi band versus single band antennas by qro.cz hamparts.shop

stack match 1-2 antenna stack by qro.cz hamparts.shop



This Stack Match can be controlled by our Easy Controller

easy controller for stack match by qro.cz hamparts.shop



recommendations to buy rx audite sdr splitter switch by qro.cz hamparts.shop



Read moreShow less
Product Details

Data sheet

type
ASSEMBLED
design
in enclosure
usage
RX + TX
impedance
50 Ohm
front-end protection
none
frequency range
1.8 MHz to 30 MHz
controller
without controller
product dimensions
222x145x75 mm - al box IP65
PCB dimensions
194x100 mm
product weight (brutto)
2.35 to 2.4 (MP), 2.5 to 2.8 (HP) kg
package dimensions
26x23x21 cm
