6-to-2 antenna switch MK2 TRIPLEXER

This is high isolation, low loss 6 to 2 RF switch.

Read moreShow less
494.89 € (tax incl.)
494.89 €
409.00 € (without tax)
  • N
  • PL
in stock, shipped in 2-3 days

Price history     Price history

The lowest price in the 30 last days was 494.89 €

Add to compare0
Add to wishlist

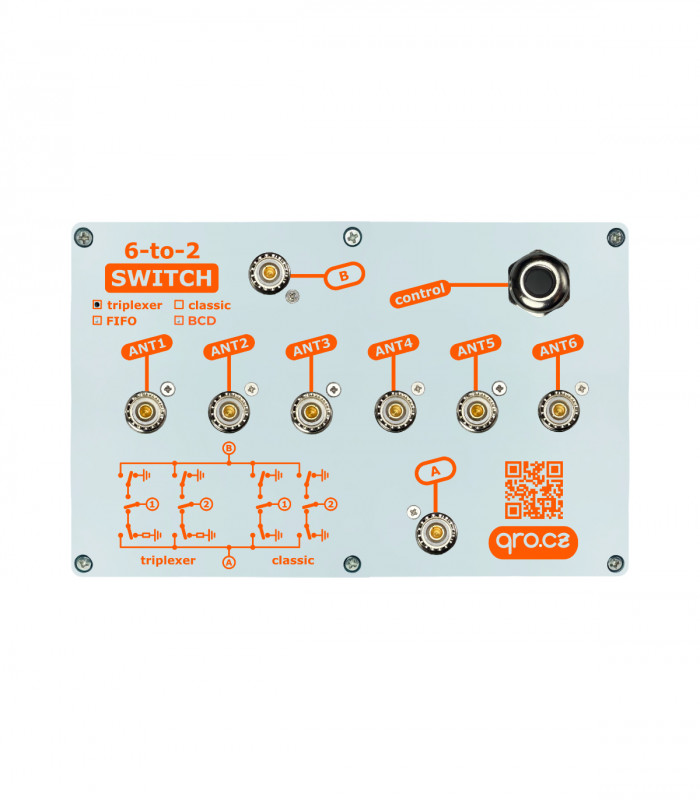

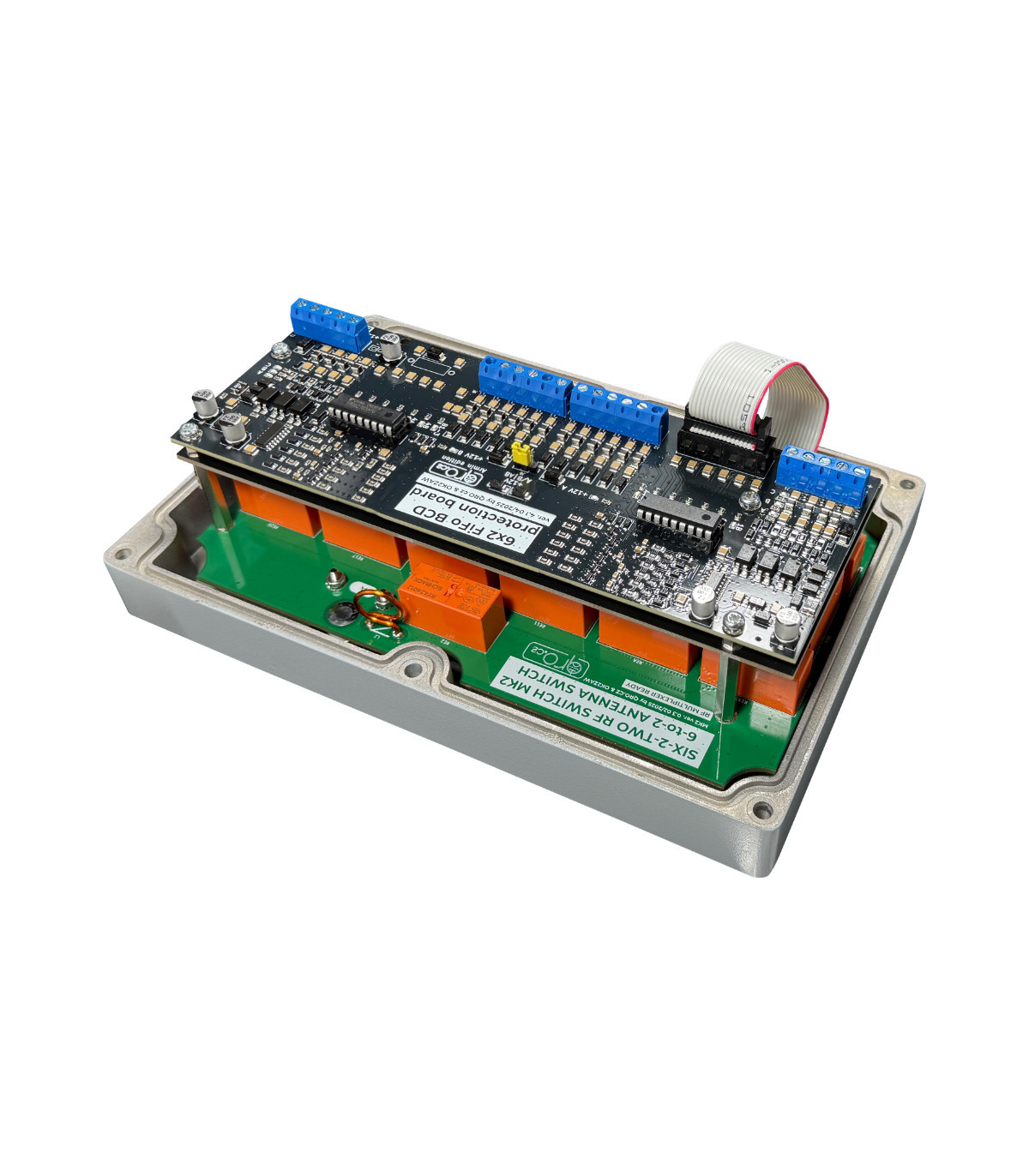

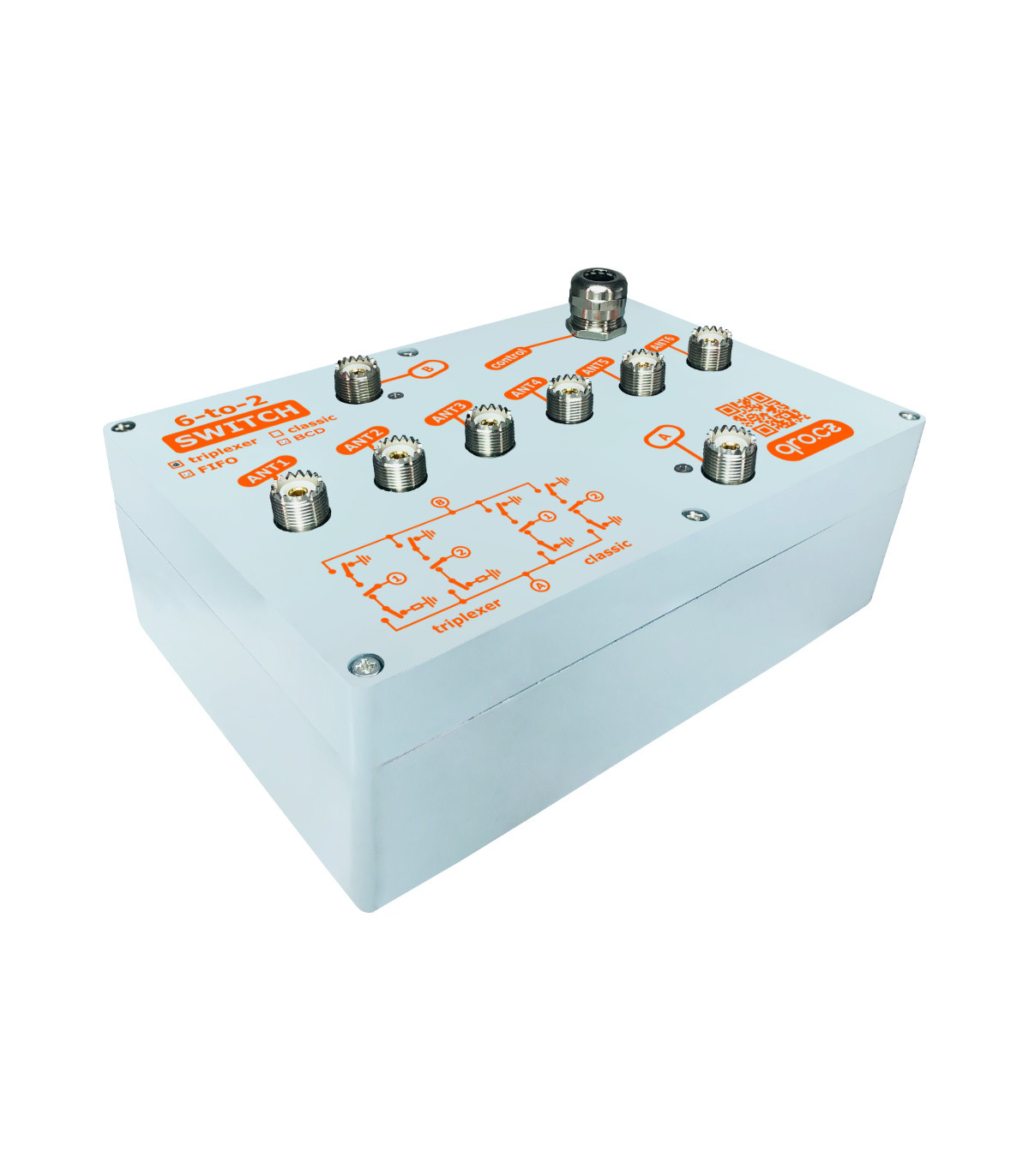

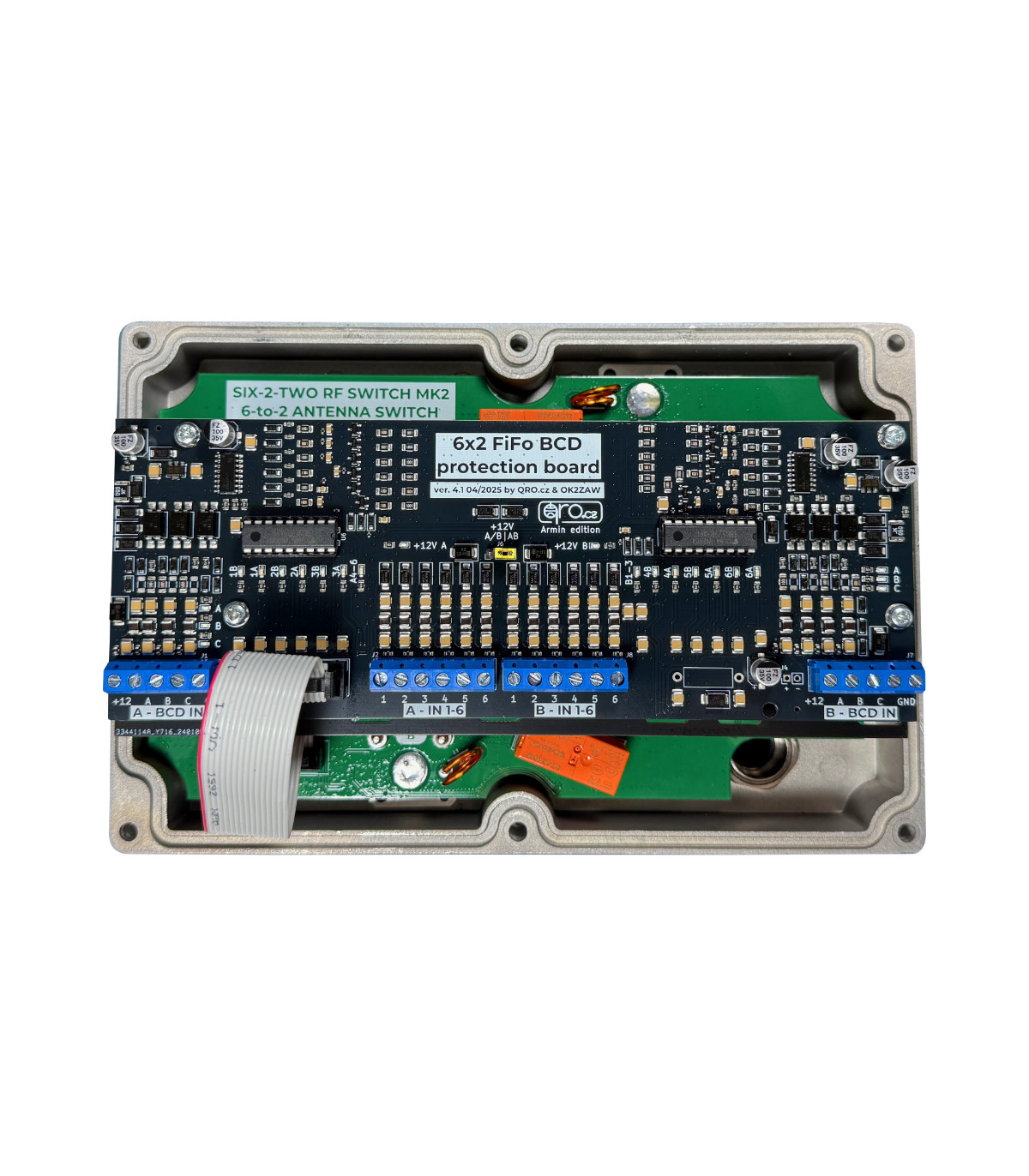

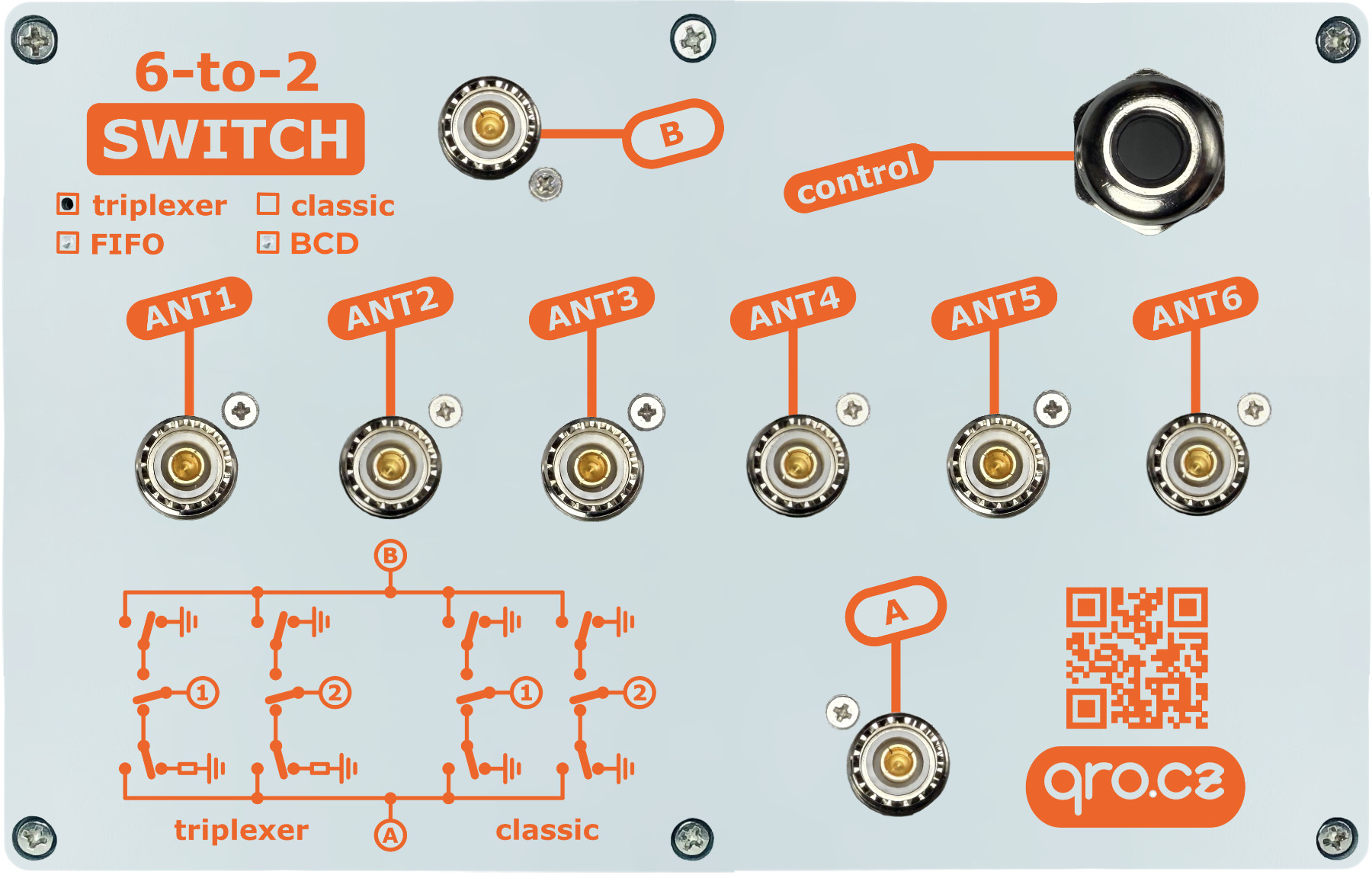

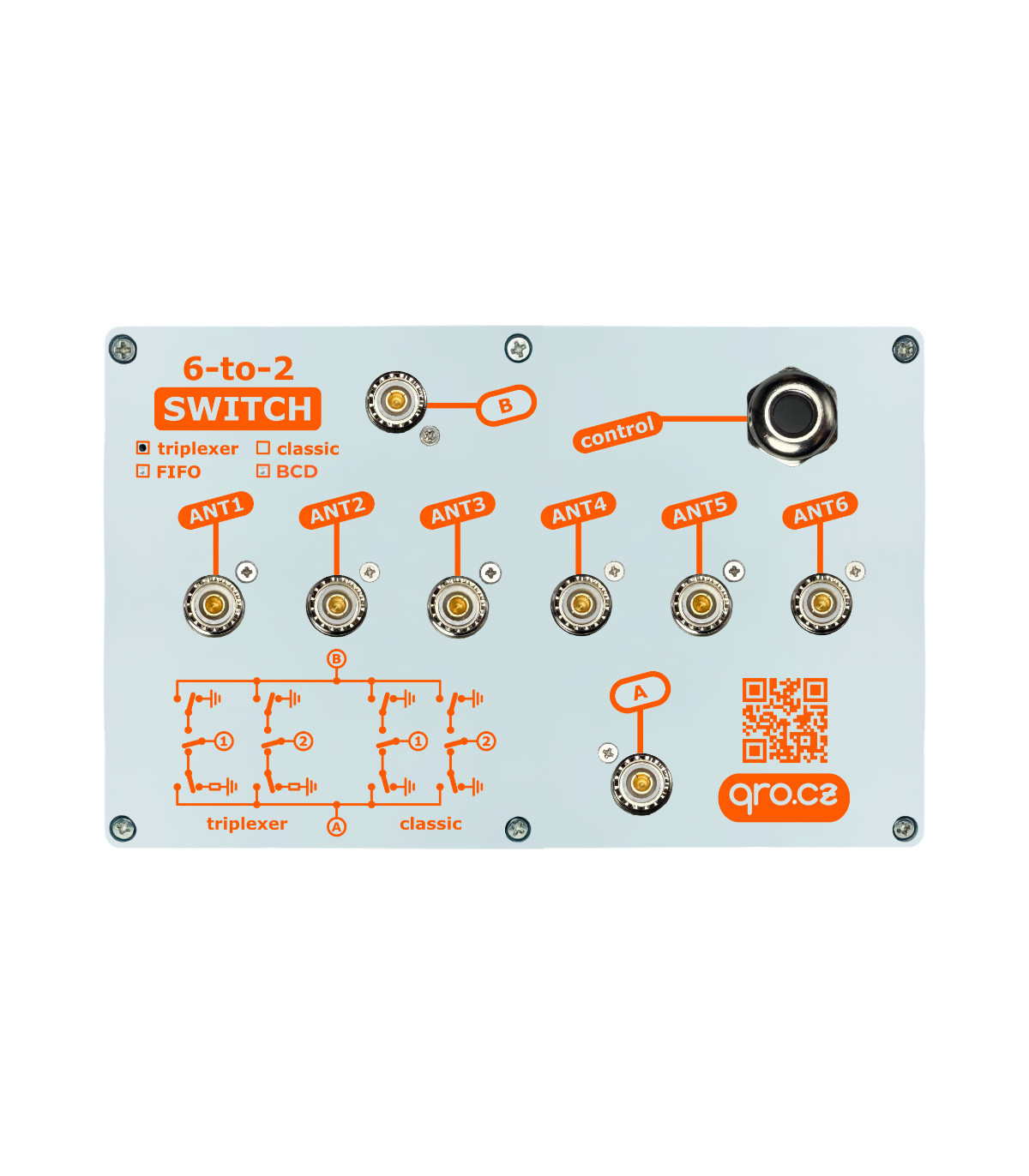

This is universal antenna, filters or TRX switch. Version MK2 with higher isolation and new hazzard protection board. RF switch is designed for triplexers (diplexers), ports have got dummy loads. There are also BCD inputs with optocoupler isolators, high voltage protection and BCD is compatible with TTL logic and up to 15 V DC. BCD data with voltage more than 13 V DC could directly supply relays.

Main functions

  • Six ports switchable to two inputs/outputs
  • Frequency range DC-60 MHz
  • Characteristic impedance 50 Ohm
  • High isolation and low insertion loss
  • Designed for Diplexers and Triplexers
  • 50 Ohm dummy loads at all ports
  • Dummy loads with protections
  • Power rating DC to 30 MHz
    • 3 kW continue wave
    • 4 kW PEP (SWR < 1:1.7) - tested with OM-4000
  • Control positive DC 2 x 6 or 2 x BCD voltage
  • Hazzard board protection with 2 x 6 and BCD inputs
  • First-Win logic
  • Without DC power the antenna ports are connected to dummy loads
  • High quality RF PCB thickness 2 mm
  • High quality connectors
  • Aluminium shield enclosure
  • Aluminium mounting holder with bracket - pipe max 52mm
  • AL box size 222x145x75 mm


  • Frequency range DC-60 MHz
  • RF power up to 4 kW
  • Dummy loads 50 Ohm/5W with thermal protection
  • High isolation between A and B ports: 100dB (20m), >88dB (10m) - no port selected
  • High isolation A-1 and B-2: >95dB (80m), >88dB (20m), >80dB (10m), 70dB (6m)
  • Insertion loss better than 0.04dB (10m), 0.02dB (20m)
  • Control DC 2 x 6 wires + 12 to 15 V or image
  • Control 2 x BCD + 3 to 15 V (TTL compatible or direct 13 to 15 V BCD) image
  • When the BCD voltage is higher than 13 V, it directly supplies the relay
  • BCD inputs with optocouplers and protections
  • BCD inputs wide range 3 to 15 V DC
  • BCD inputs with positive control compatible with OM-power, Microham. Pull up for open collector - image
  • BCD current 3V3 = 2 mA, 5 V = 4 mA, 9 V = 8 mA, 12 V = 10 mA (external 13.8 V)
  • Supply current for 13.8V up to 150 mA
  • * Isolation measured with port A connected to dummy load, B open

Isolation example

  • TRX A output power 1kW = 60dBm
  • Isolation to port B is 80dB → 60dBm - 80dB = -20dBm
  • ~ 10uW at TRX port B

DO NOT forget to

  • Isolation between antennas!
  • The safe power isolation is not only about the switch isolation!
  • Never switch relay during TX!


  • You can use 2 x 6 + GND = 13 wires (12 to 15 V DC)
  • You can use 2 x BCD (TTL) + GND + 13.8 V = 8 wires
  • You can use 2 x BCD (> 13 V) + GND = 7 wires

Available as

ASSEMBLED: ready to use
Connectors: PL SO-239 or N


Included in package

Switch assembled and tested
Mounting holder with bracket - image


If you want to know more please check our wiki with 6-2 switch triplexer manual.

antenna switch 6-2 qro.cz hamparts.shop

antenna switch 6-2 qro.cz hamparts.shop

stack match holder qro.cz hamparts.shop

antenna switch 6-2 qro.cz hamparts.shop

antenna switch 6-2 qro.cz hamparts.shop

antenna switch 6-2 qro.cz hamparts.shop

Port 1 open, SWR for dummy load

measure antenna switch 6-2 qro.cz hamparts.shop

A - 1 VSWR

measure antenna switch 6-2 qro.cz hamparts.shop

B - 6 VSWR

measure antenna switch 6-2 qro.cz hamparts.shop

A - B no selected

measure antenna switch 6-2 qro.cz hamparts.shop

A - 1, B - 2

measure antenna switch 6-2 qro.cz hamparts.shop

A - 1, B - 6

measure antenna switch 6-2 qro.cz hamparts.shop

  Third party software FreqEZ

FreqEZ is a Do-It-Yourself hardware/software project by Larry K8UT that provides highly configurable Band Decoding and Remote Antenna Selection. For amateurs who use N1MM+ and DXLab logging software, FreqEZ will leverage those programs TCP/UDP broadcasts for antenna switching. For other amateurs, FreqEZ can connect to the BCD band outputs available from most transceivers. The FreqEZ software and is freely available to all hams, and consists of a pair of programs that run on the Windows and Raspberry Pi Raspbian operating systems.

This antenna switch can be controlled by our 6-2 Easy Controller

easy controller for antenna switch by qro.cz hamparts.shop

recommendations to buy rx audite sdr splitter switch by qro.cz hamparts.shop

Read moreShow less
Product Details

Data sheet

in enclosure
frequency range
DC to 60 MHz
without controller
product dimensions
222x145x75 mm - al box IP65
product weight (brutto)
2.64 (PL), 2.7 (N) kg
package dimensions
26x23x21 cm
