Where are your feeders?

Feeder position

  • Everyone has different antenna configuration and also feeders could be on different places
  • Controller allows you to set right jumpers and follows your installation
  • There are all 4 combinations
  • Where there are terminators and feeders (Bi-directional beverage)

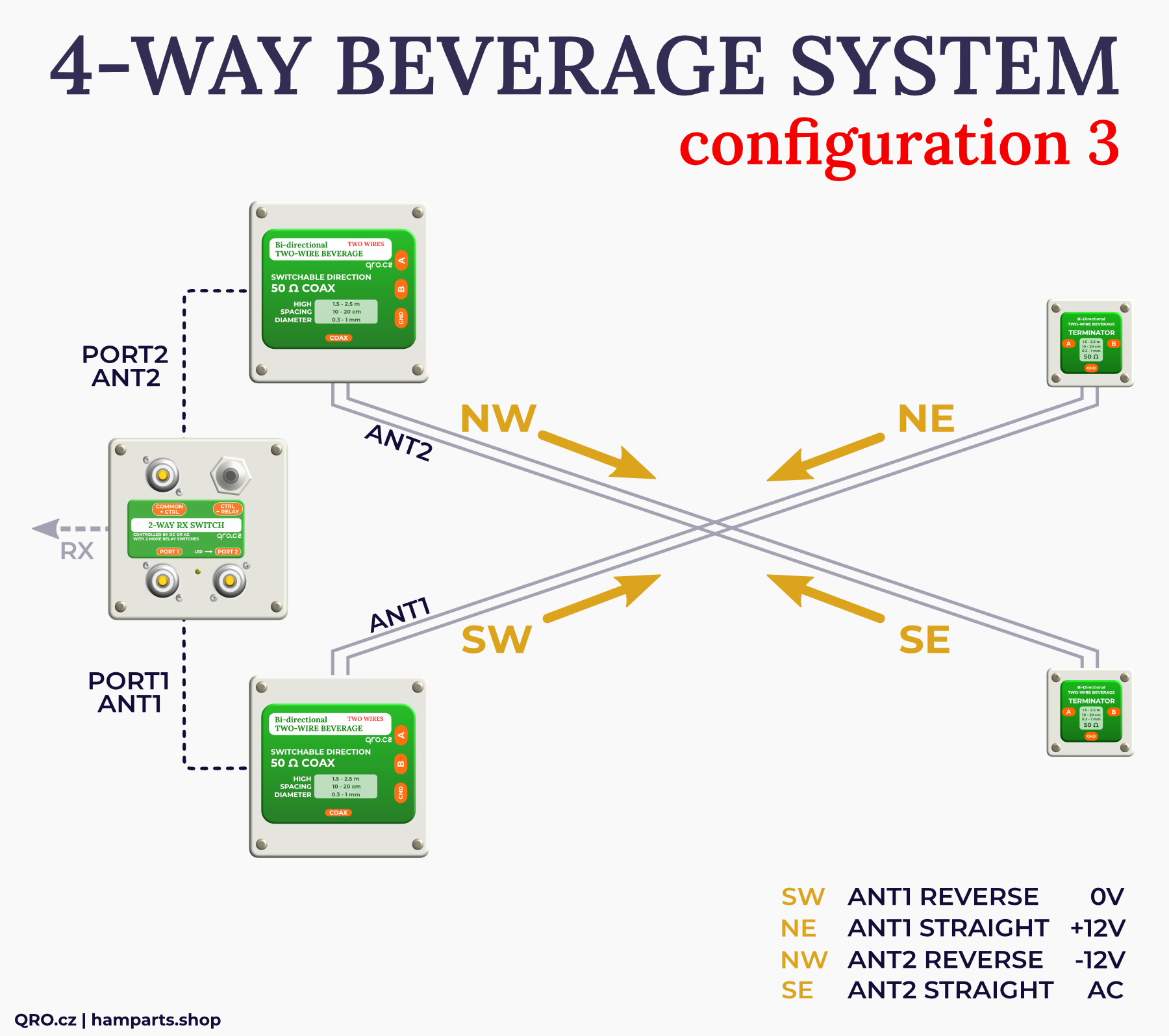

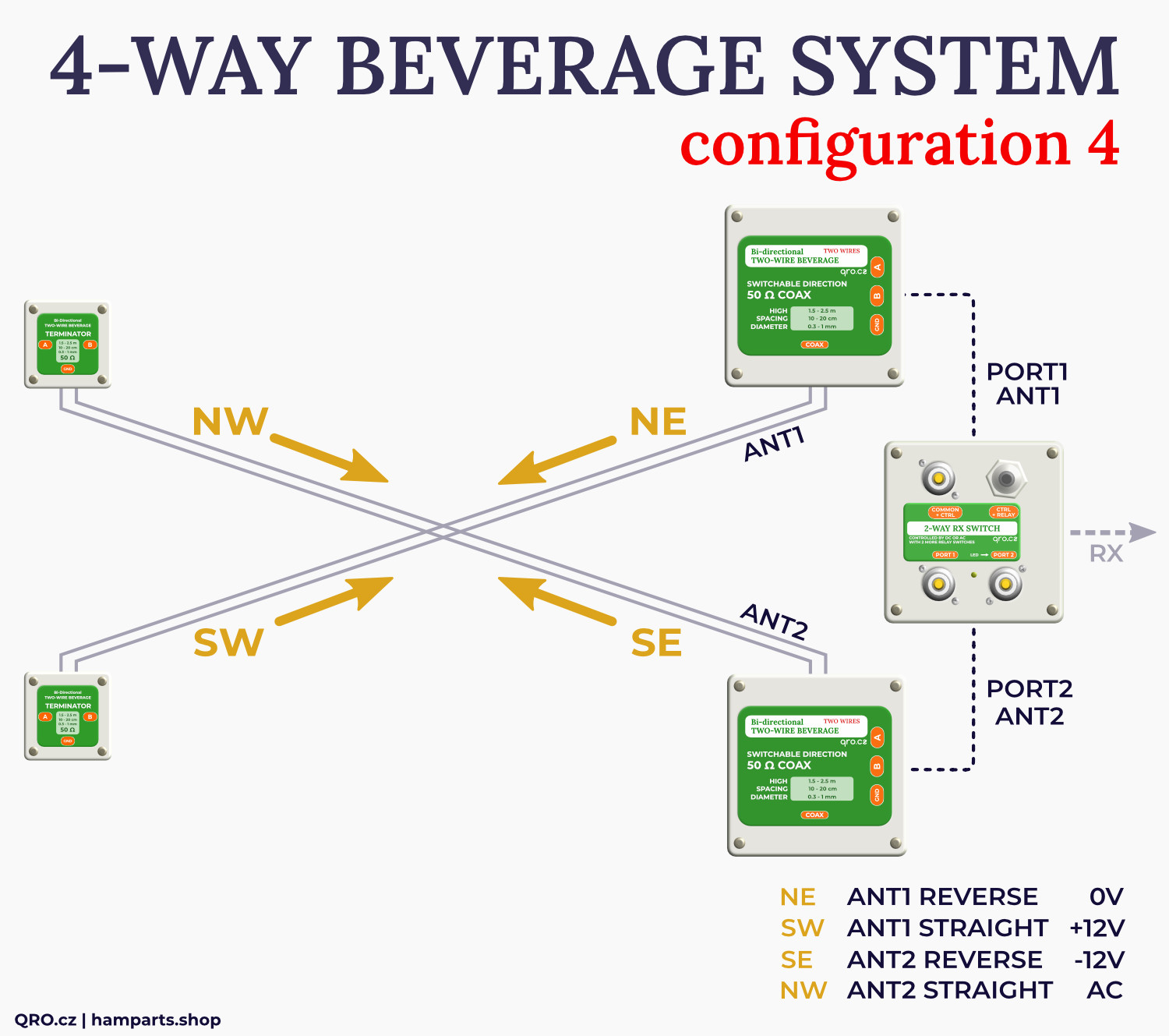

k9ay/4-way antenna switch controller feeder positions configuration 1 qro.cz hamparts.shop


k9ay/4-way antenna switch controller feeder positions configuration 2 qro.cz hamparts.shop


k9ay/4-way antenna switch controller feeder positions configuration 3 qro.cz hamparts.shop


k9ay/4-way antenna switch controller feeder positions configuration 4 qro.cz hamparts.shop



How to configure controller?

  • For the K9AY/4-way antenna switch controller, jumpers and ctrl voltages:
  • Short jumpers for right 4-way Bi-DIR beverage orientation (at pictures above)
  • more info in controller manual
