10-way PTT splitter

10-way PTT splitter

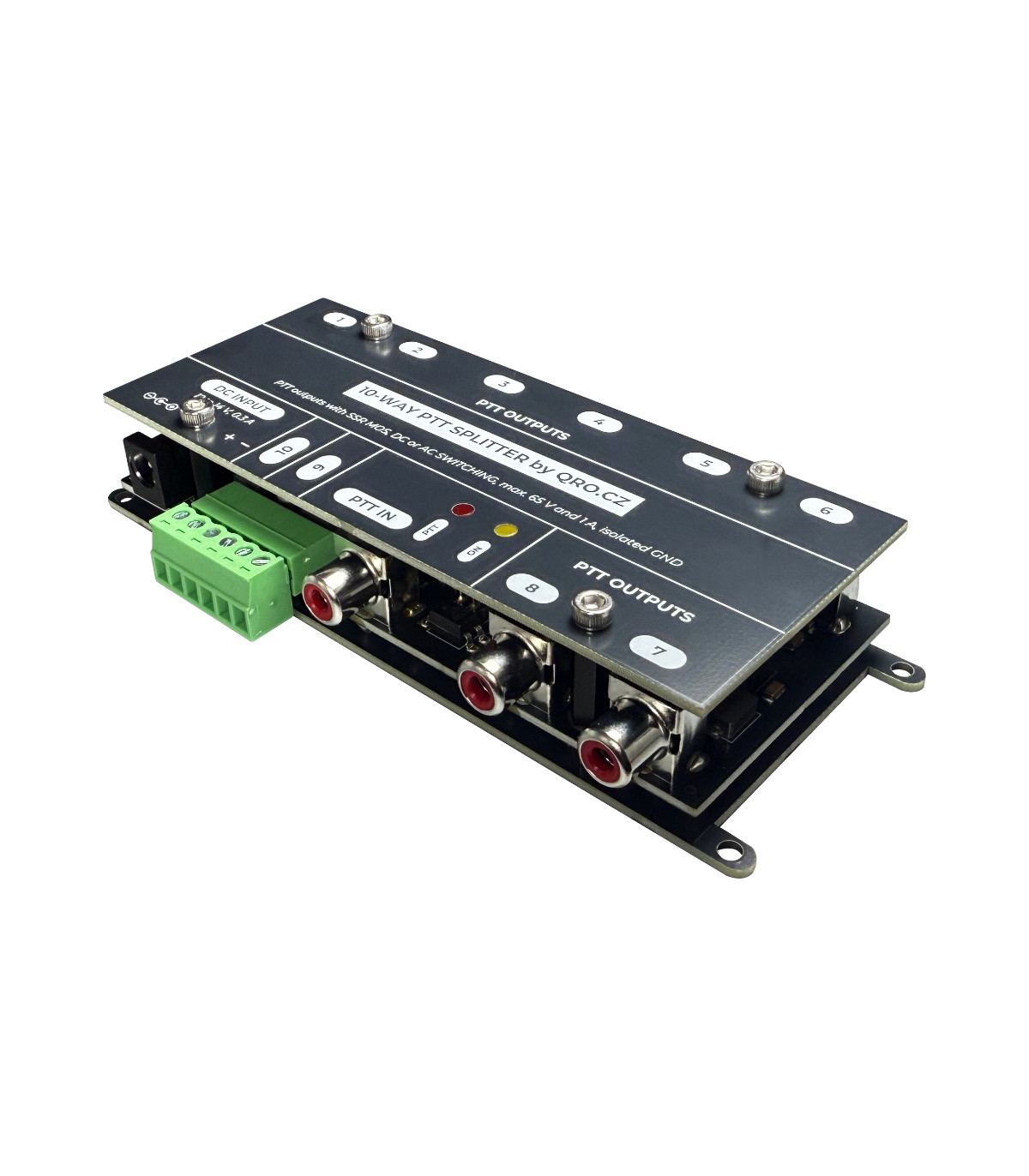

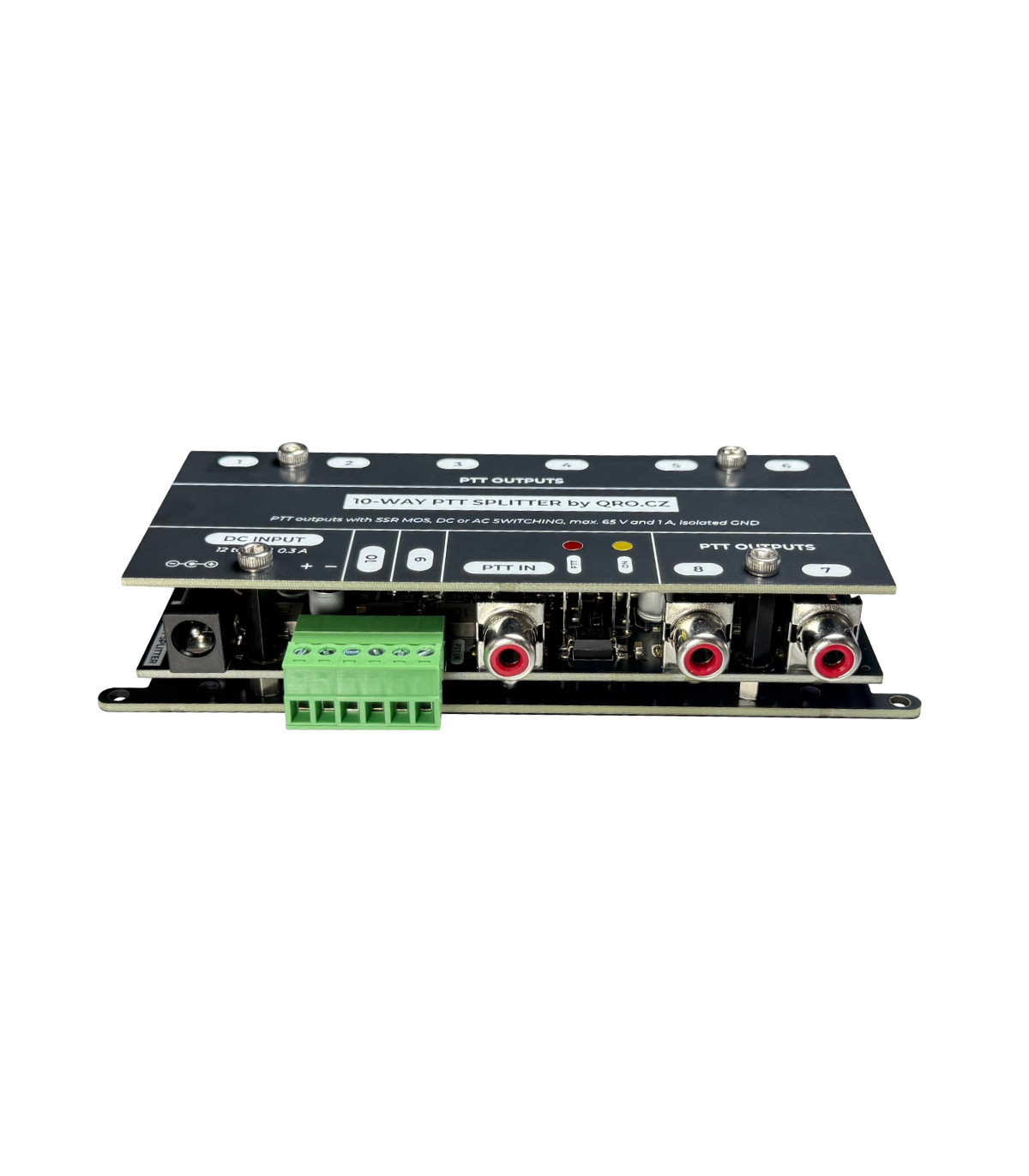

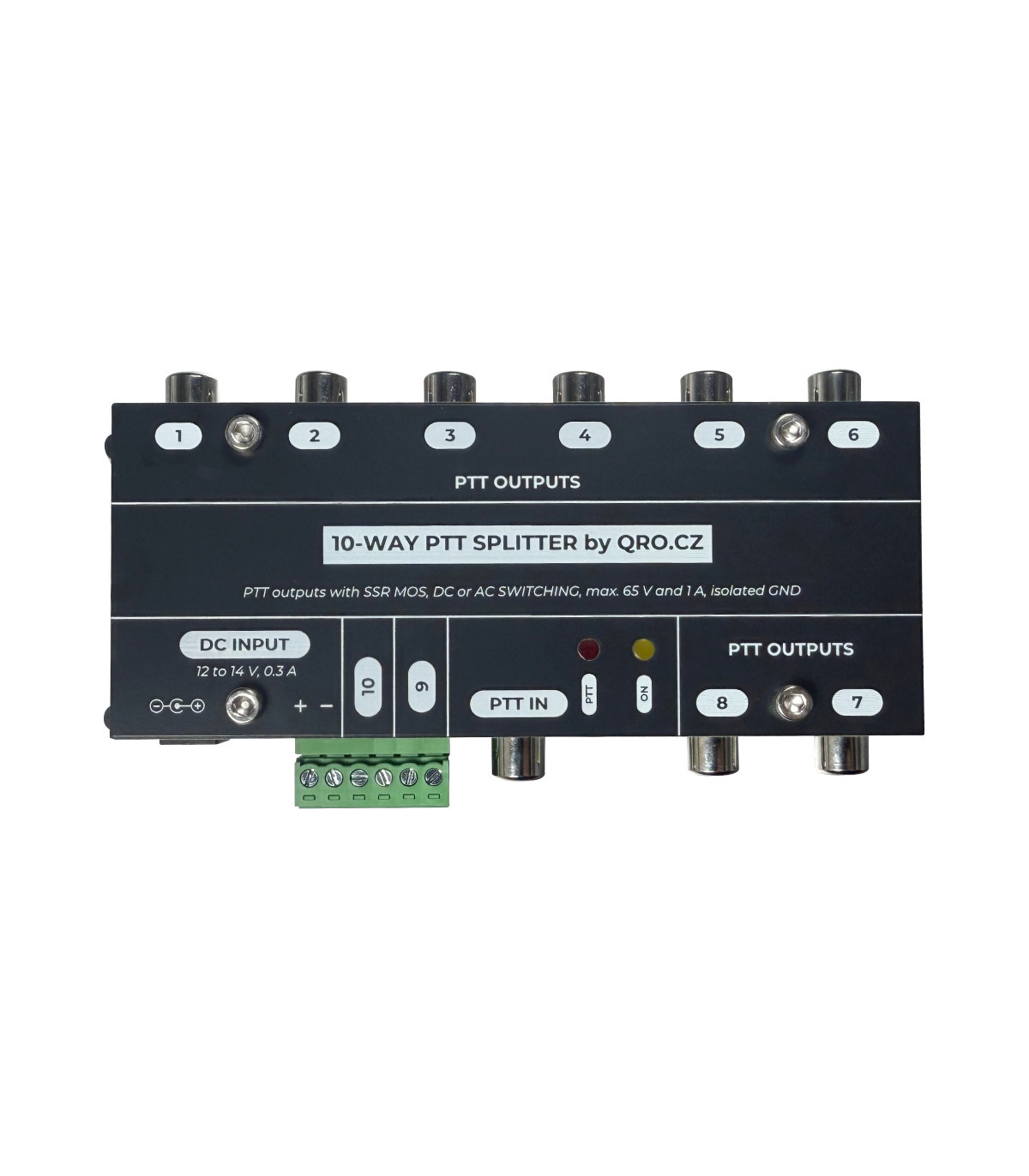

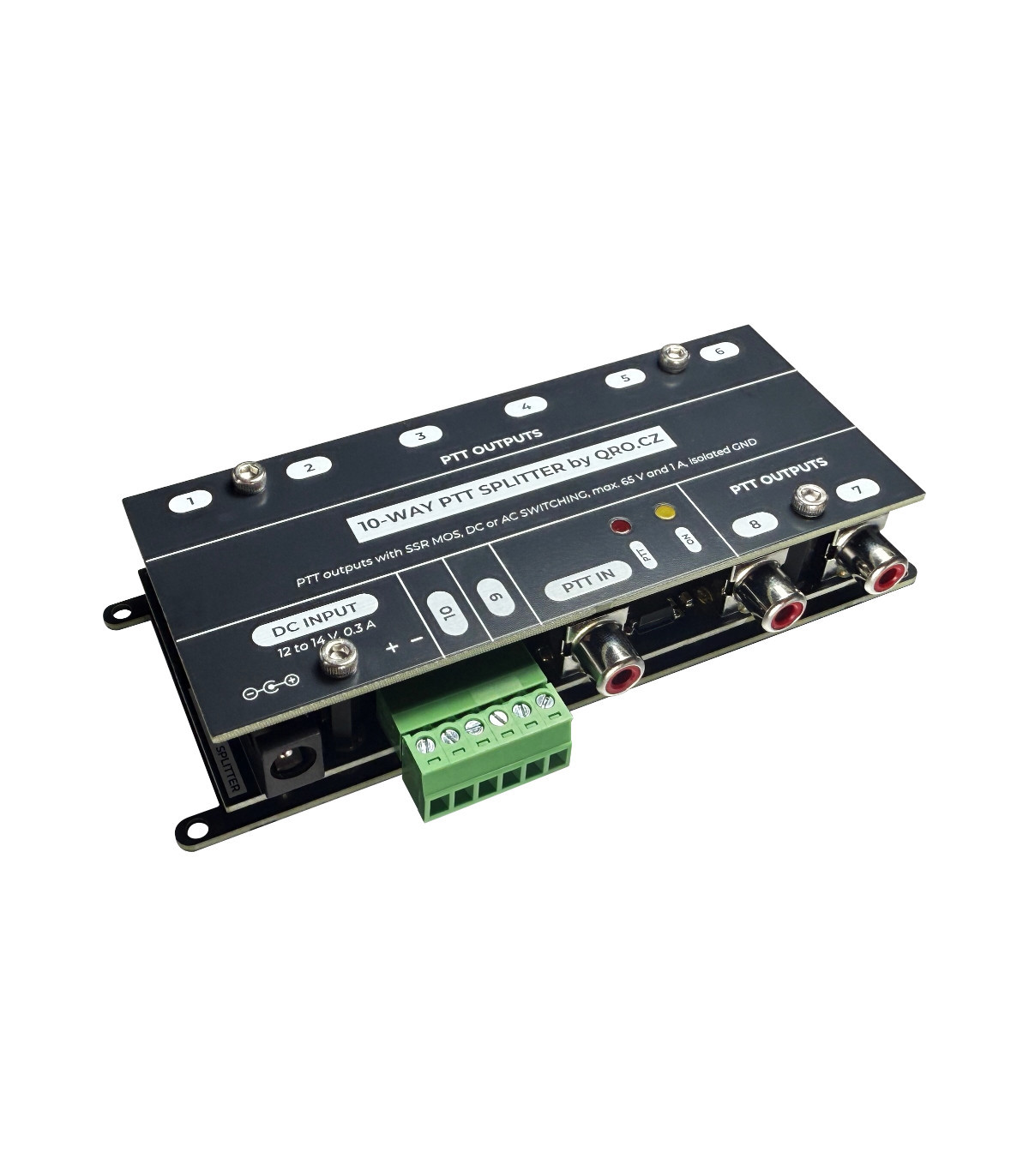

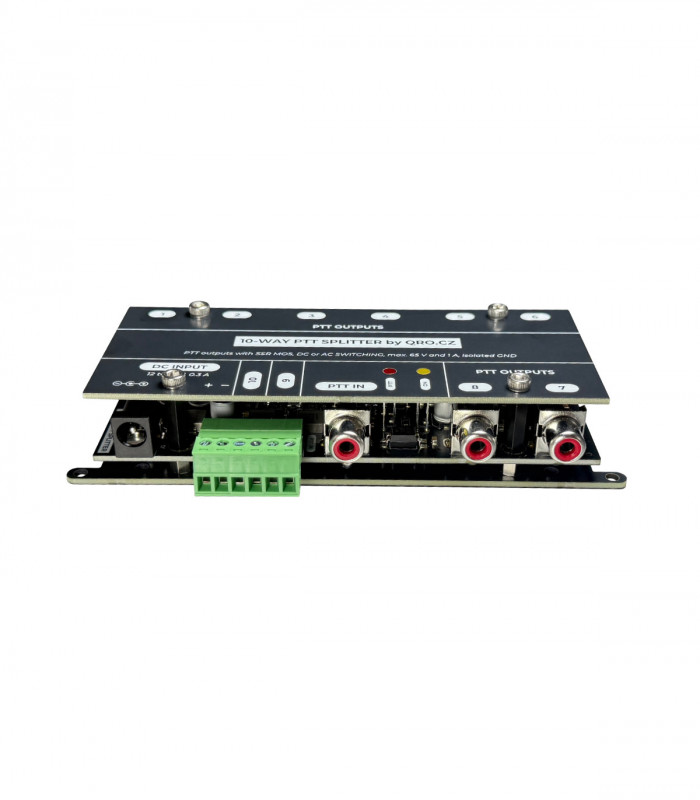

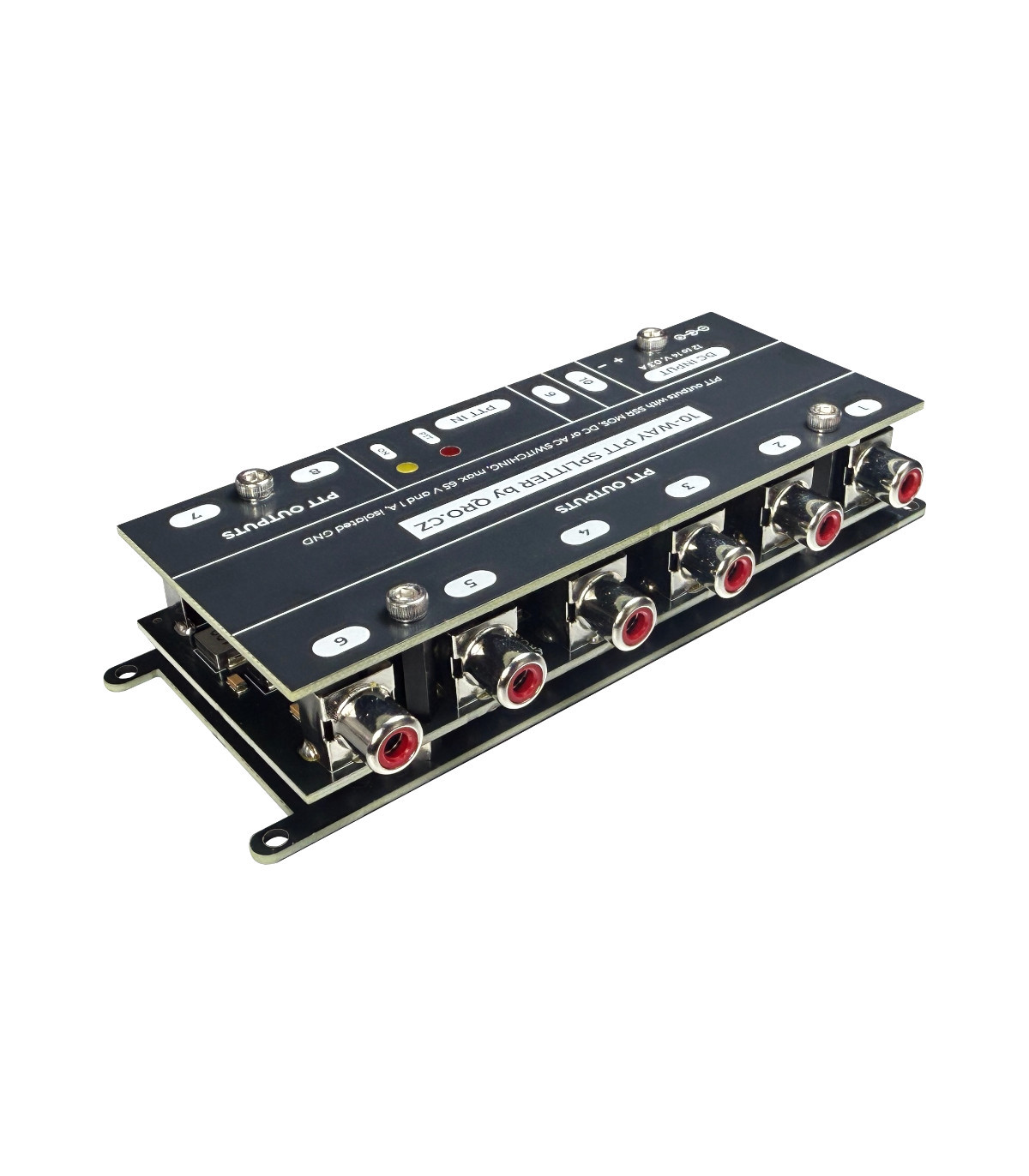

10-way analog splitter with isolated input, outputs and SSR contacts for AC and DC switching

Read moreShow less

95.59 € (tax incl.)

95.59 €
79.00 € (without tax)

in stock, shipped in 2-3 days

Price history

The lowest price in the 30 last days was 95.59 €

Brand:

Add to compare0

Love

Add to wishlist

Description

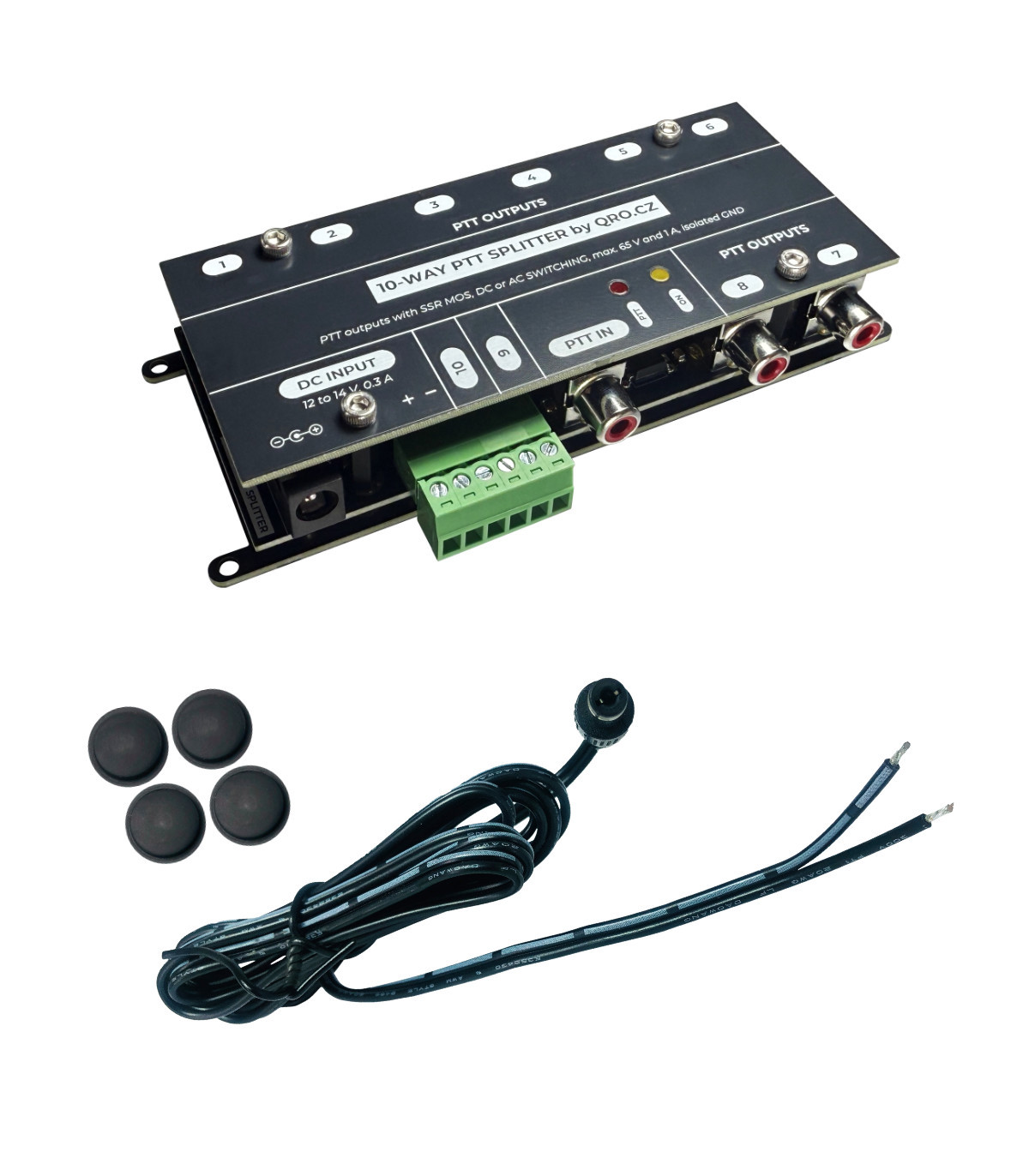

This is an improved version of the PTT splitter, which includes more output ports. Each port has its own SSR contact and is isolated from ground and from each other. These outputs allow switching not only DC but also AC voltage. In addition, the output can be used for switching voltage in the circuit. See the examples for more details. Optical isolation between the input and output is a standard feature. The entire system is analog and therefore does not add any delay between the input and output (unlike solutions with classic relays).

This splitter separates the source signal (TRX) from ten outputs. It also serves as protection. The outputs include RFI filters and surge protection up to 65V. Eight outputs are on classic RCA connectors and two are on a green screw terminal. These two contacts can also be connected in parallel to switch the PTT on some older PAs where there is high voltage in the open state (up to 130V).

⚠ This device protects the PTT of your TRX from other devices by optical isolation.

Using

TRX PTT to more devices
TRX PTT output protection
TRX PTT to another RX and RX devices
Interlock splitter

Main functions

Universal (PTT) switch splitter
Protecting TRX from accessories - opto isolators
Minimal delay: < 3ms
10x output SSR switch
Output switching max. 1 A and 65 V AC or DC
PTT LED indicator
DC IN LED indicator
IN and 8 OUT RCA connectors
DC IN and 2 outputs at green screw terminal
DC IN at jack or green connector
Mounting by 4 holes

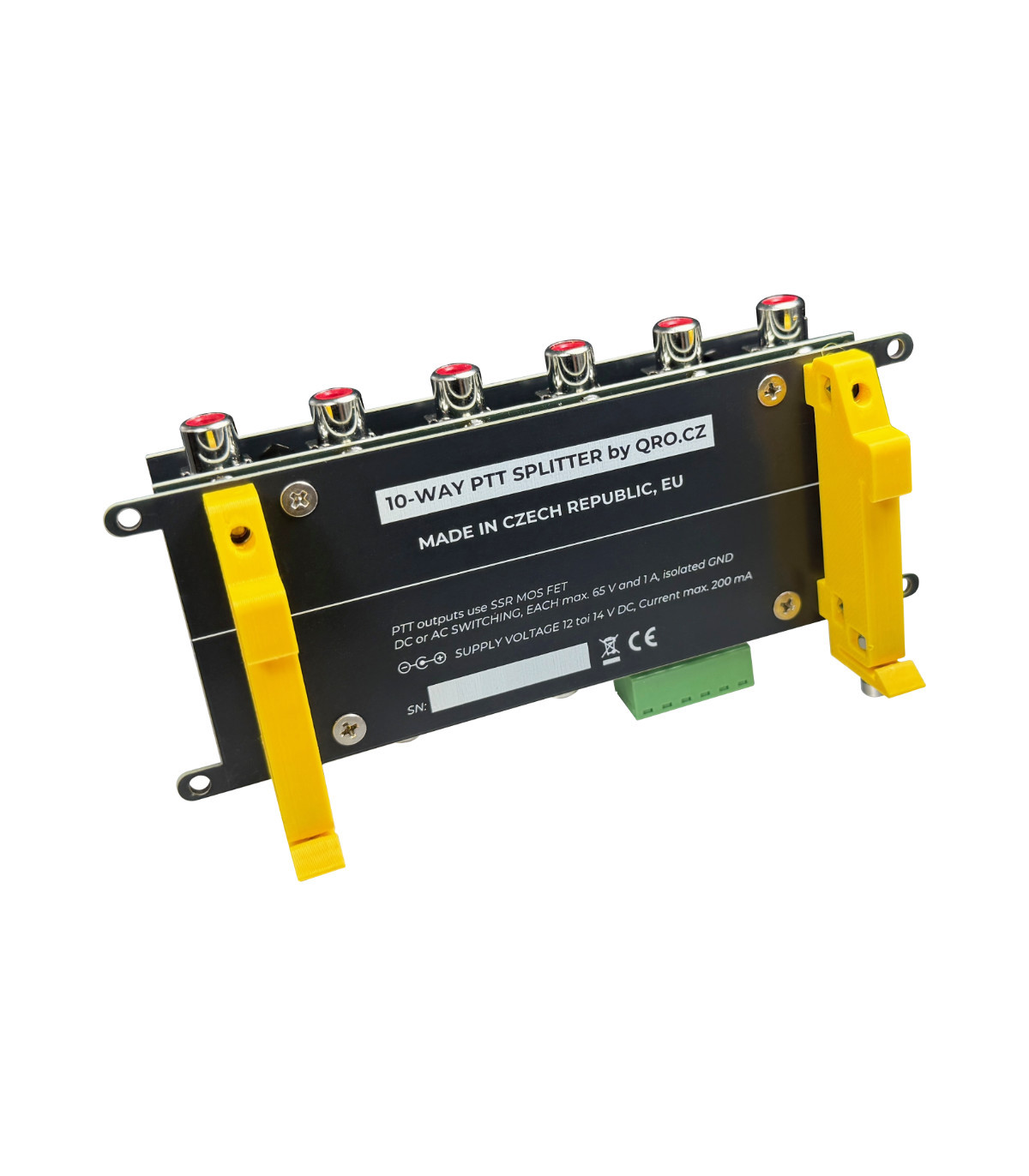

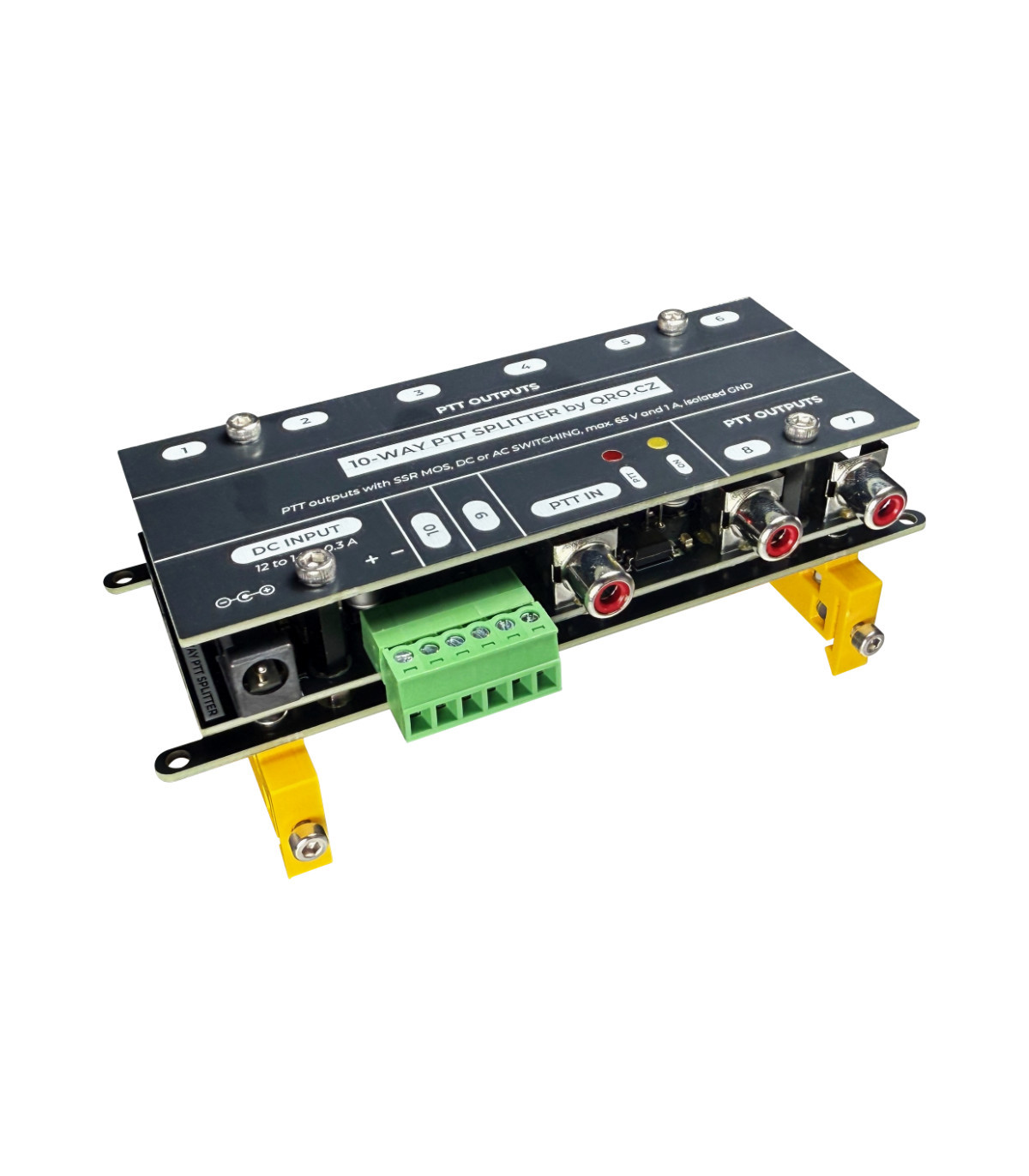

Mounting ready for DIN rail set
DC plug included
4pcs self adhesive feet pads included
ASSEMBLED and TESTED VERSION

Parameters

One input to ten outputs
Floating - isolated grounds of outputs
Optocoupler isolators protecting TRX PTT port
DC power supply 12 V to 14 V
DC current max. 0.3 A
Input PTT logic active when grounded
Input PTT logic current typ. 25 mA
Output SSR switch 65 V 1 A AC/DC for each port
Output could be connected serially: 130 V AC/DC
Dimension: 135x70x26 mm

Available as

ASSEMBLED: ready to use

RECOMMENDATIONS TO BUY:

DIN rail set

Included in package

Splitter assembled and tested
DC plug - image
4pcs self adhesive feet pads - image

Manual

If you want to know more please check our wiki with 10-way PTT splitter manual.
