4-way PTT splitter in BOX

This is simply 4-way analog splitter. Designed for no-delay PTT switching. From one input to four outputs. You can split PTT signal to four independent devices.

Read moreShow less
65.34 € (tax incl.)
65.34 €
54.00 € (without tax)
connector
  • CINCH
in stock, shipped in 2-3 days

Price history     Price history

The lowest price in the 30 last days was 65.34 €

Brand:
Add to compare0
Love
Add to wishlist
Description

This 4-way PTT is a simply analog splitter. It's designed for no-delay PTT switching from one input to four outputs. You can split PTT signal to four independent devices. This device also protects your TRX PTT output from external accessories. There are optocoupler isolators between PTT input and all four PTT outputs.

This device protects the PTT of your TRX from other devices by optical isolation.


Using

  • PTT for more PA
  • TRX PTT output protection
  • TRX PTT to another RX and RX devices
  • PTT to interlock, PA etc.

Main functions

  • Universal (PTT) switch splitter
  • Protecting TRX from accessories - opto isolators
  • Minimal delay
  • Compatible with 5 V PTT logic (OM-power)
  • 4x output FET switch - DC 50 V 0.5 A
  • PTT LED indicator
  • RCA connectors
  • DC plug included
  • 4pcs self adhesive feet pads included

  • Aluminium enclosure: W x H x L = 58 x 24 x 50 mm
  • ASSEMBLED and TESTED VERSION

Parameters

  • Optocoupler isolators protecting TRX PTT port
  • Input PTT logic compatible with 5 V and more
  • Input PTT logic active when grounded
  • Input PTT logic current typ. 40 mA
  • Output FET switch 50 V 500 mA for each port
  • DC power supply 9 V to 15 V typ. 65 mA
  • PCB size 50x50.4 mm


Available as

ASSEMBLED with BOX: ready to use
ASSEMBLED: ready to use - ASSEMBLED VERSION

Included in package

Splitter assembled and tested
DC plug - image
4pcs self adhesive feet pads - image


Manual

If you want to know more please check our wiki with 4-way PTT splitter manual.

4-way ptt splitter assembled in enclosure by qro.cz hamparts.shop

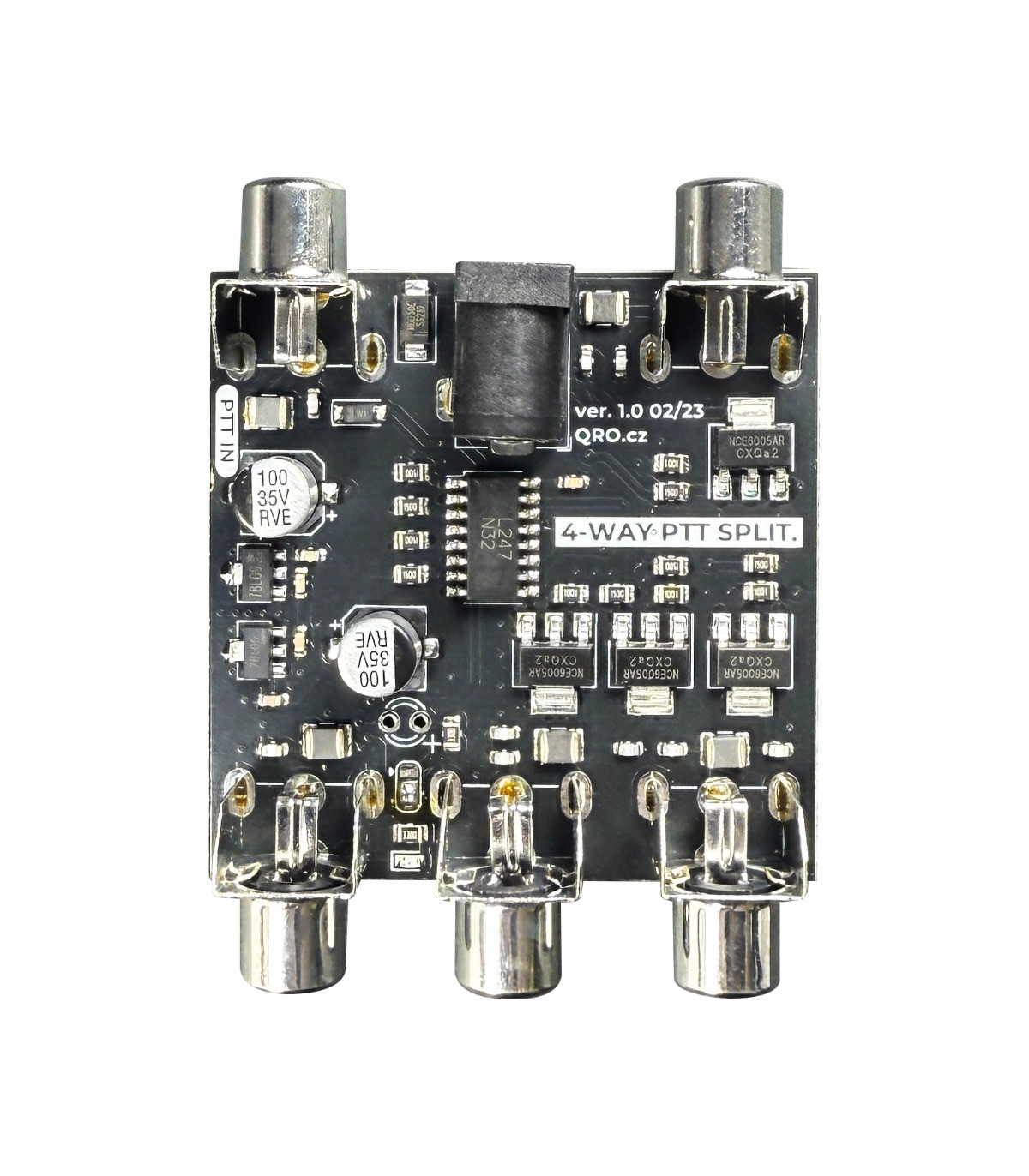

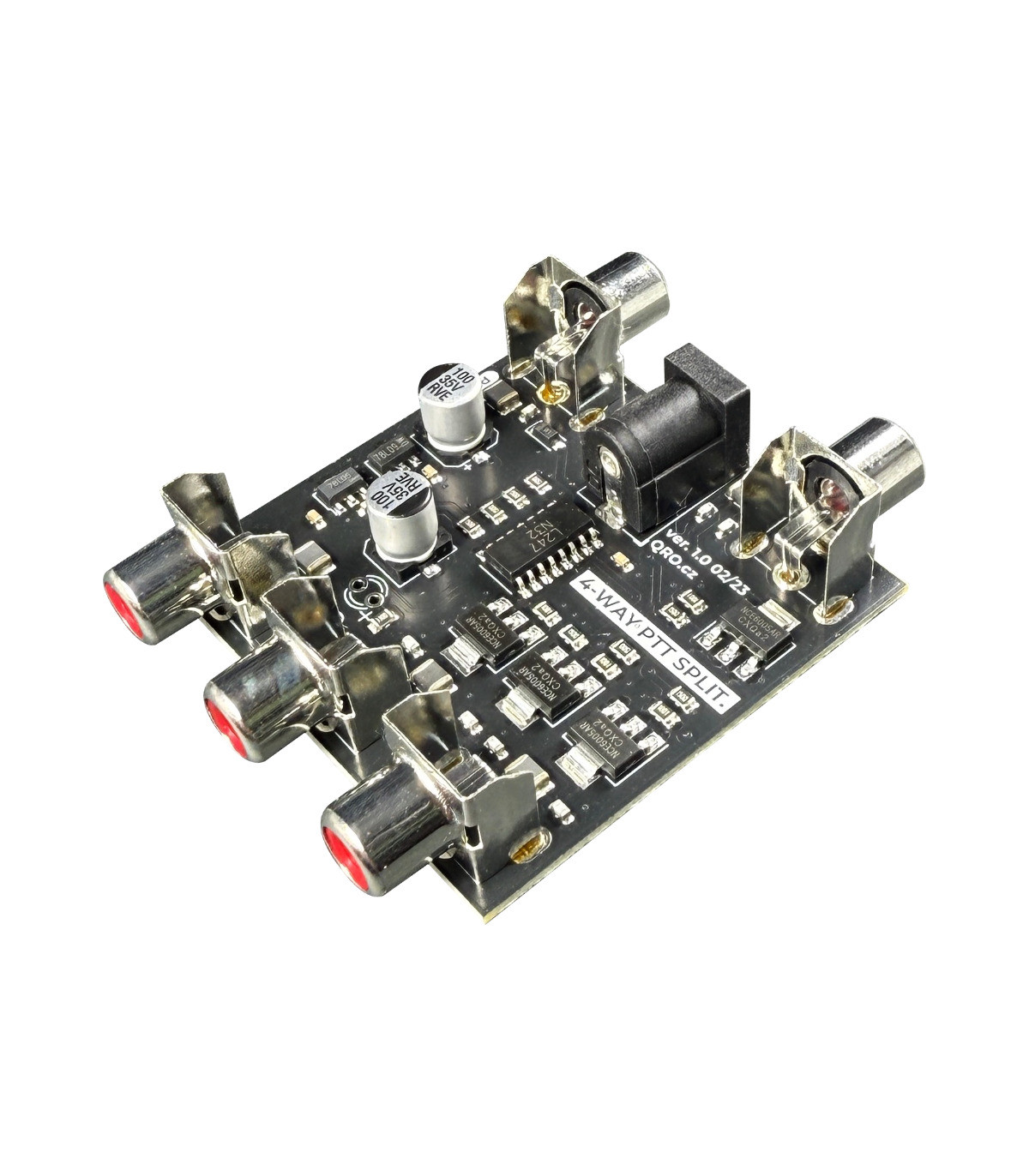

4-way ptt splitter assembled by qro.cz hamparts.shop



4-way ptt splitter by qro.cz hamparts.shop



4-way ptt splitter with power amplifier by qro.cz hamparts.shop



4-way ptt splitter principle by qro.cz hamparts.shop



Read moreShow less
Product Details

Data sheet

type
ASSEMBLED
design
in enclosure
usage
RX + TX
front-end protection
none
product dimensions
58x50x24 mm - al box
PCB dimensions
50x50.4 mm
product weight (brutto)
0.12 kg
package dimensions
12x10.5x4.5 cm

Specific References

ean13
1000090112415
