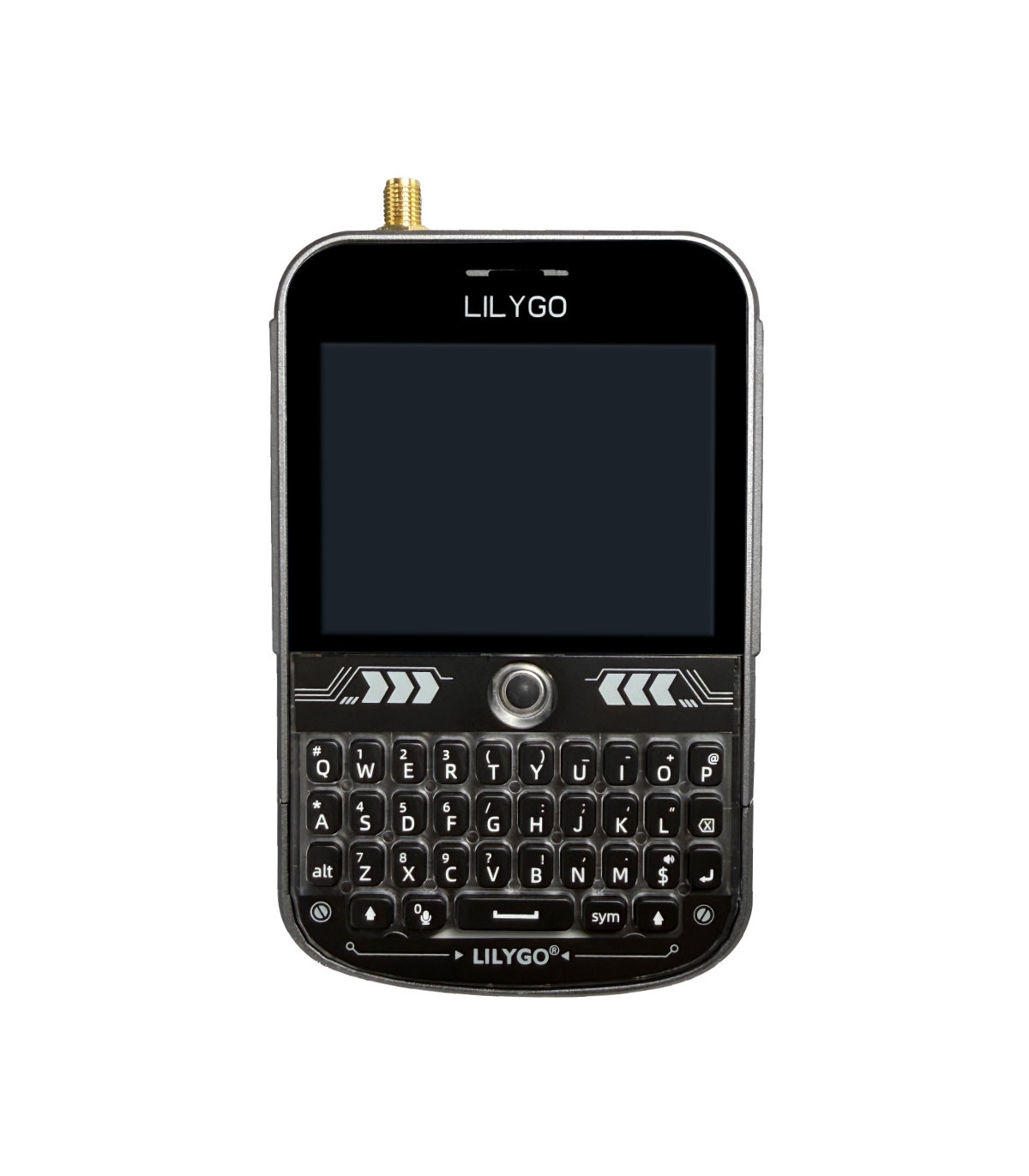

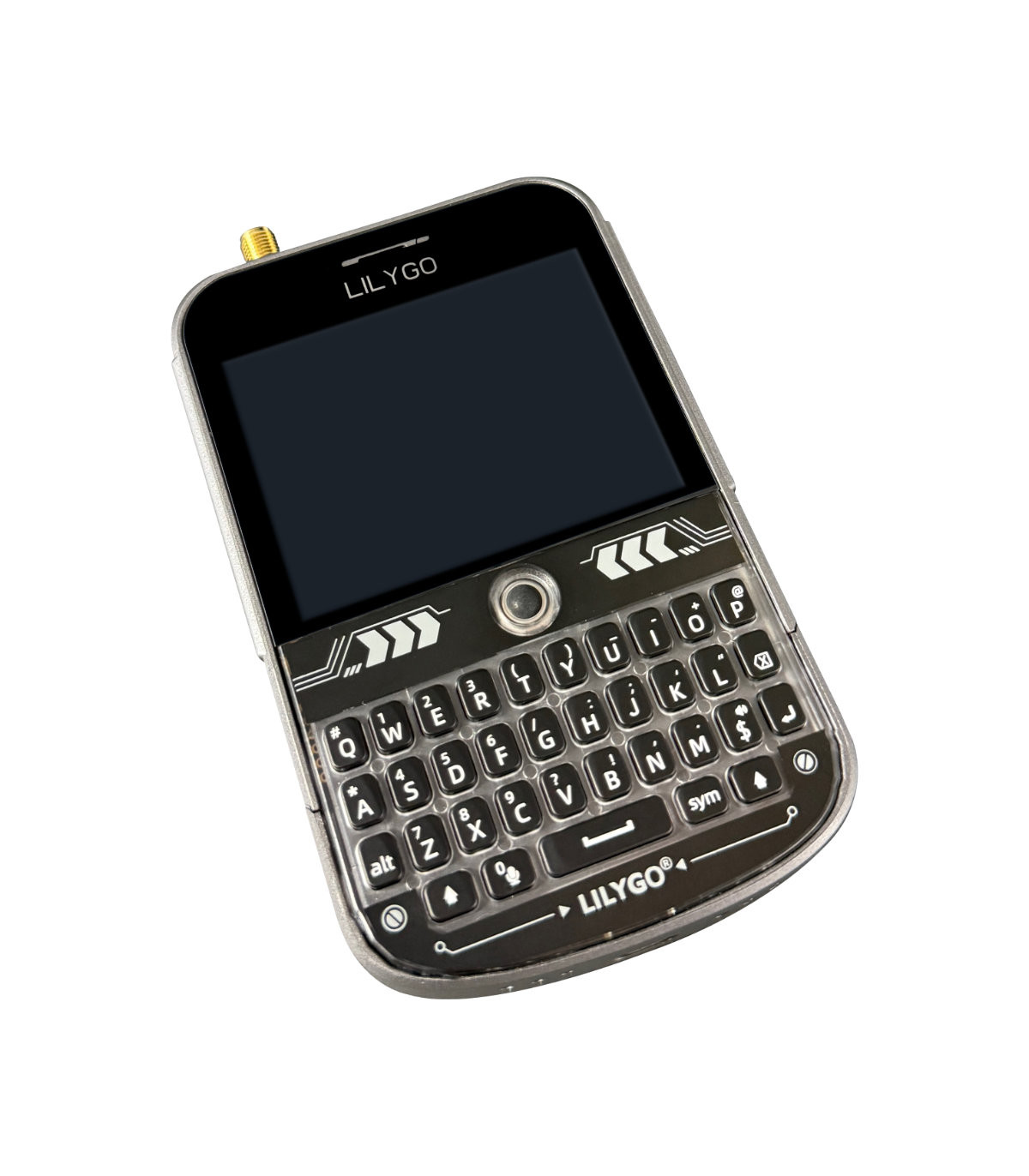

T-Deck Plus LILYGO Black

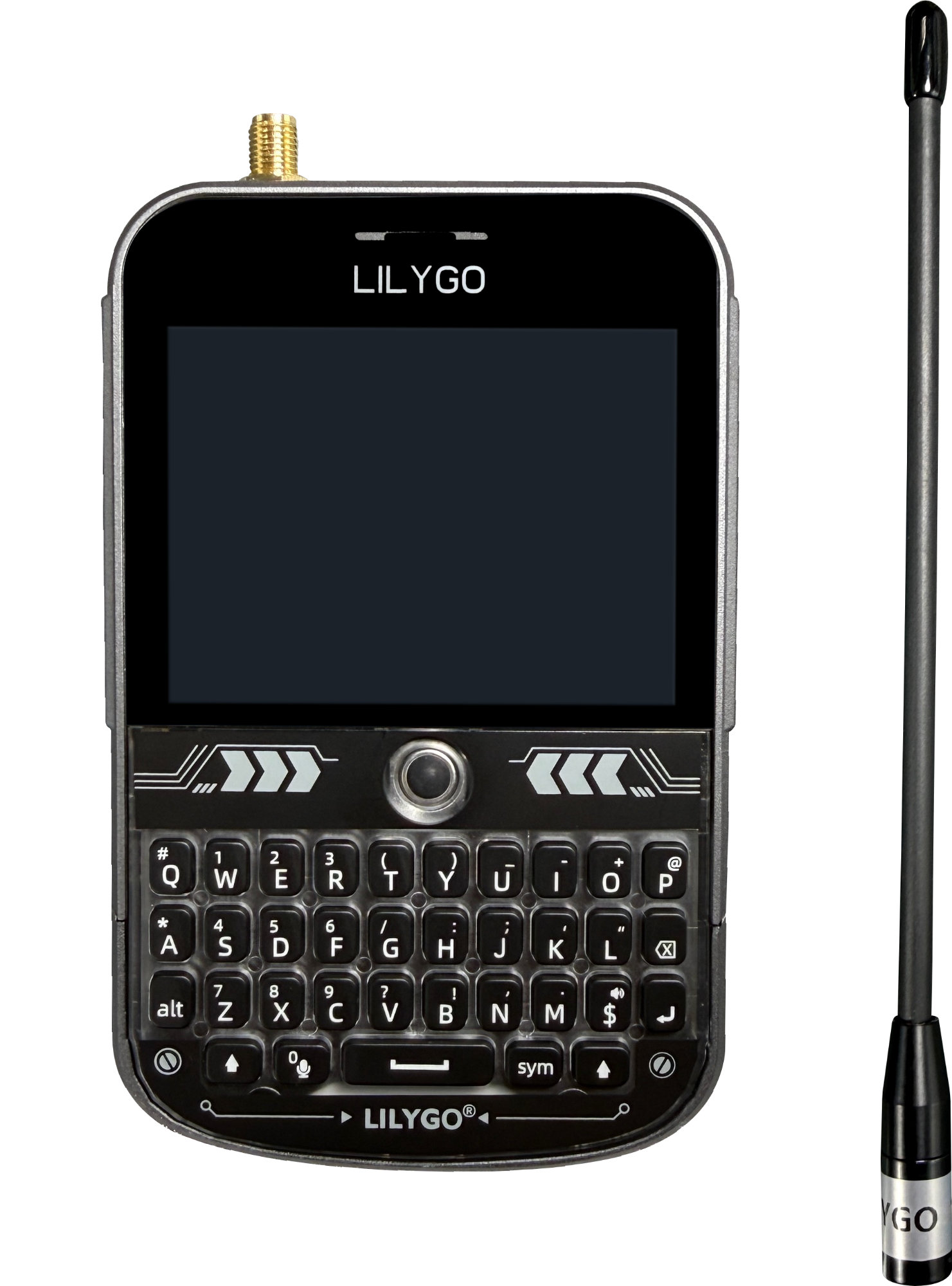

This is LILYGO T-Deck Plus with external antenna. With built-in GPS and 2000mAh battery.
100.43 €
(tax incl.)
100.43 €
83.00 € (without tax)
83.00 € (without tax)
Add to compare0
Love
Add to wishlist(1)

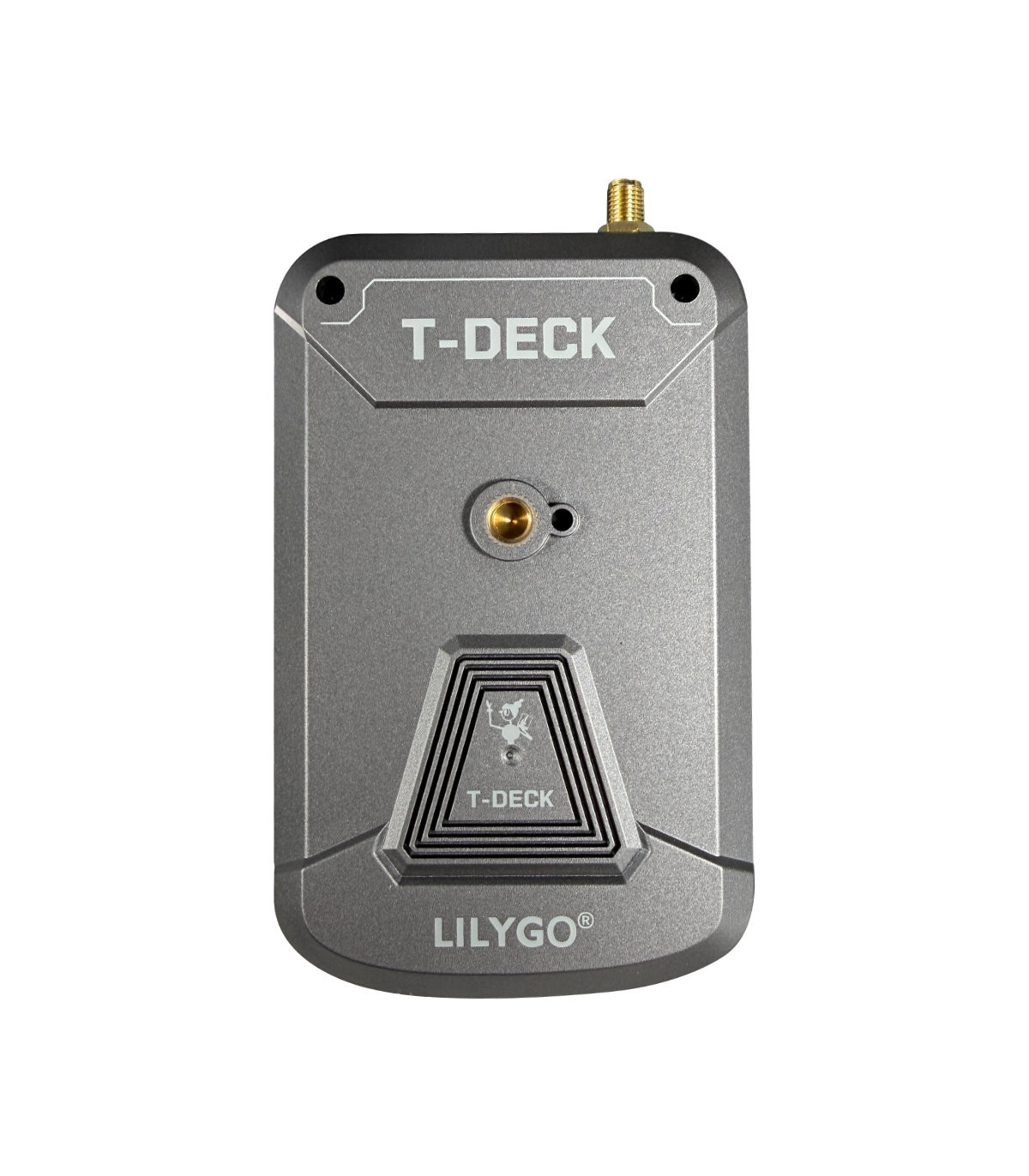

This is upgraded version of popular T-Deck. This version T-Deck Plus from LiLygo offers not only 2.8 inch display with 320x240 resolution, SX1262 LoRa transceiver, 2.4 GHz WiFi, BT, ESP32 dual core, but also built-in GPS module and 2000 mAh battery. Compared to the previous version, it is now installed in a protective plastic case. So you don't have to print your own and worry about external SMA antenna connections. Please, select right frequency version during your order.
Using
- LoRa APRS projects (https://lora-aprs-wx.eu/)
- LoRa APRS code (https://github.com/richonguzman/)
- Meshtastic (https://meshtastic.org/)
- MeshCore (https://meshcore.co.uk/)
- MeshCom (https://icssw.org/en/meshcom/)
- LoRa APRS tracker
Main functions
- RF frequency 433 MHz or 868 or 915 MHz
- GPS module for tracker applications
- ESP32-S3FN16R8 dual core
- 2.4 GHz WiFi and Bluetooth with Integrated antenna
- 8 MB PSRAM and 16 MB Flash memory
- SX 1262 RF transceiver
- Up to 22 dBm of RF power
- Modulations: FSK, GFSK, MSK, GMSK, LoRa™️, OOK
- OLED 2.8 inch 320x240
- TF card slot
- Microphone, speaker
- Built-in 2000 mAh battery

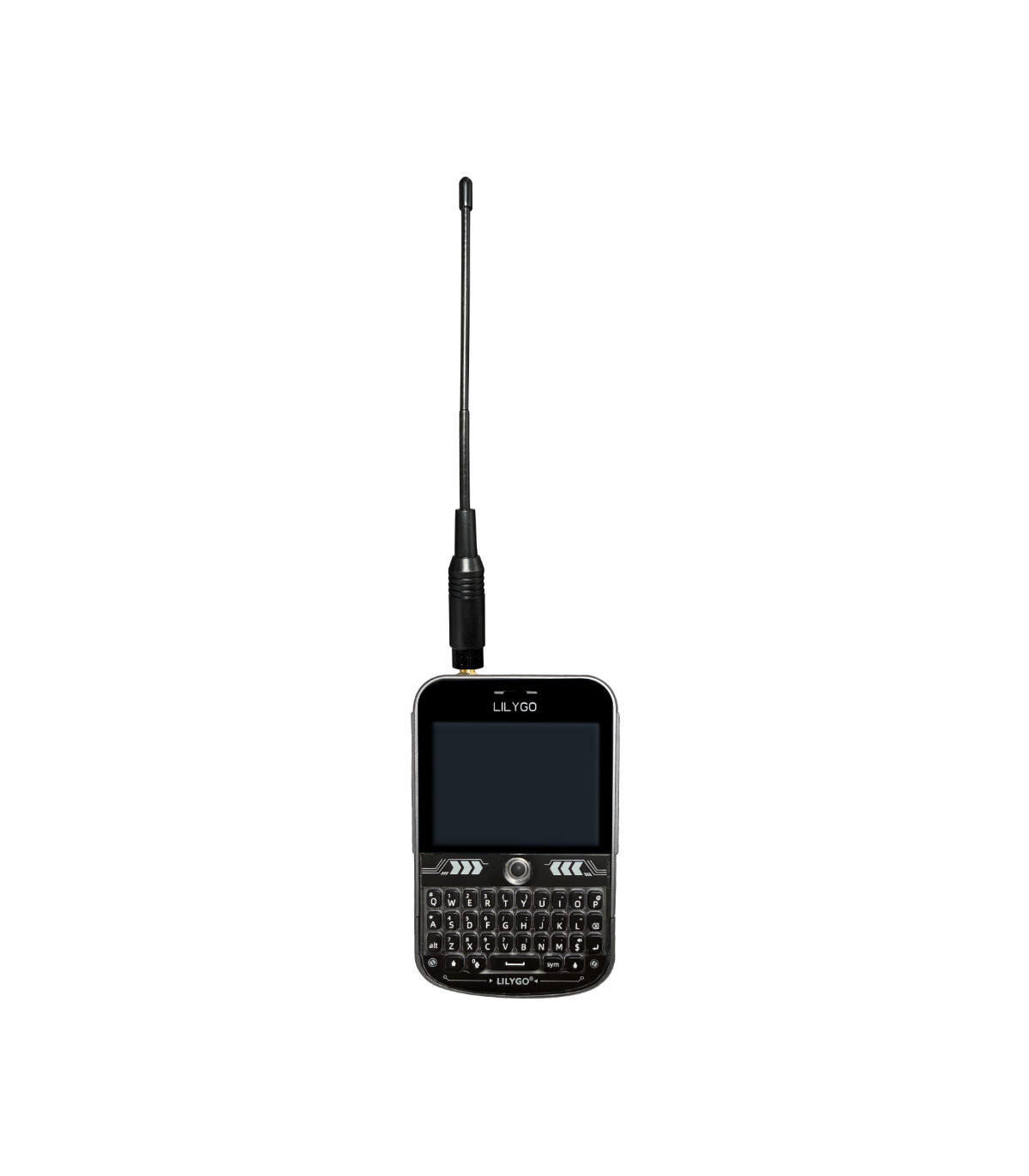

- External antenna at SMA connector
- Plastic enclosure

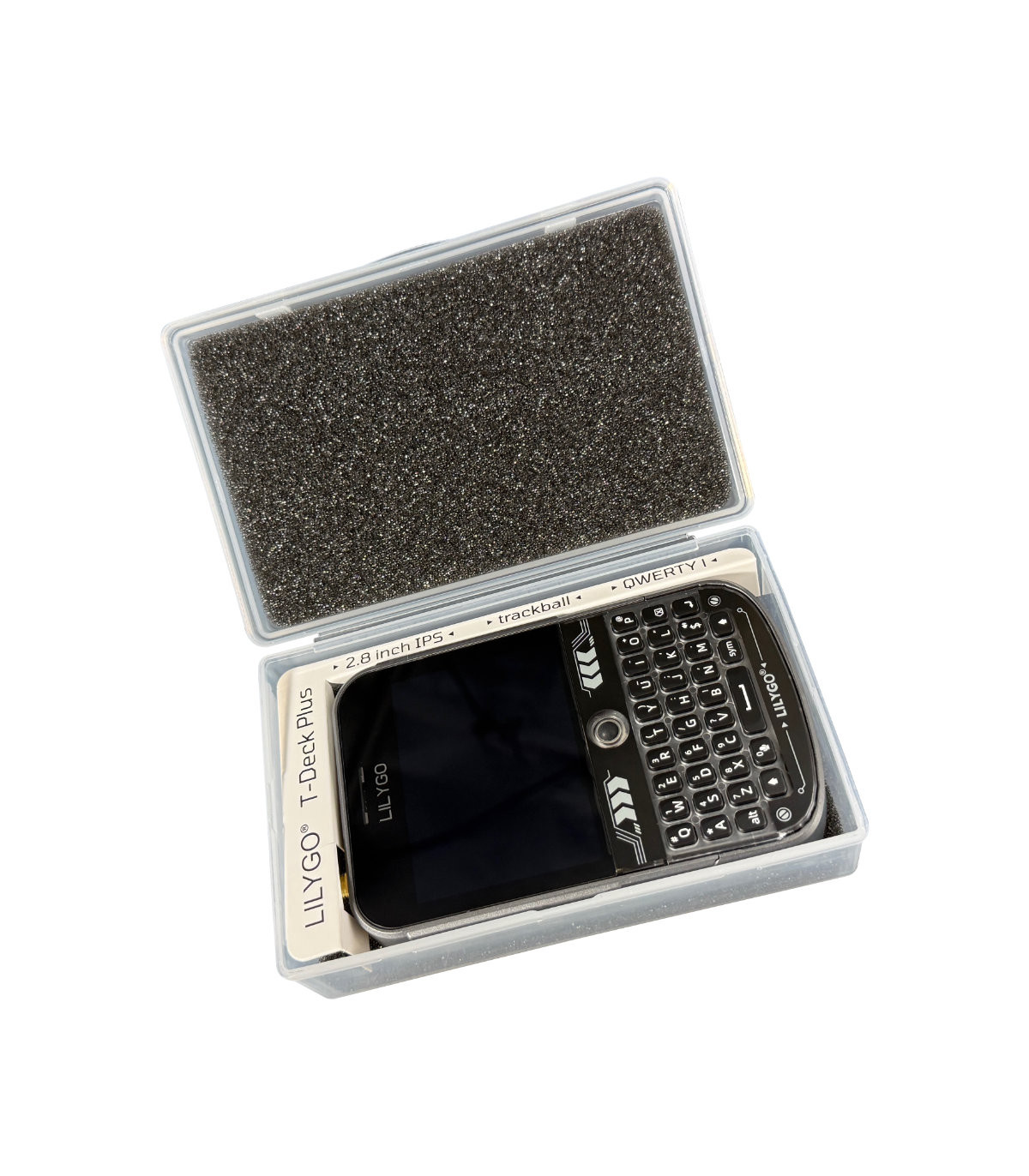

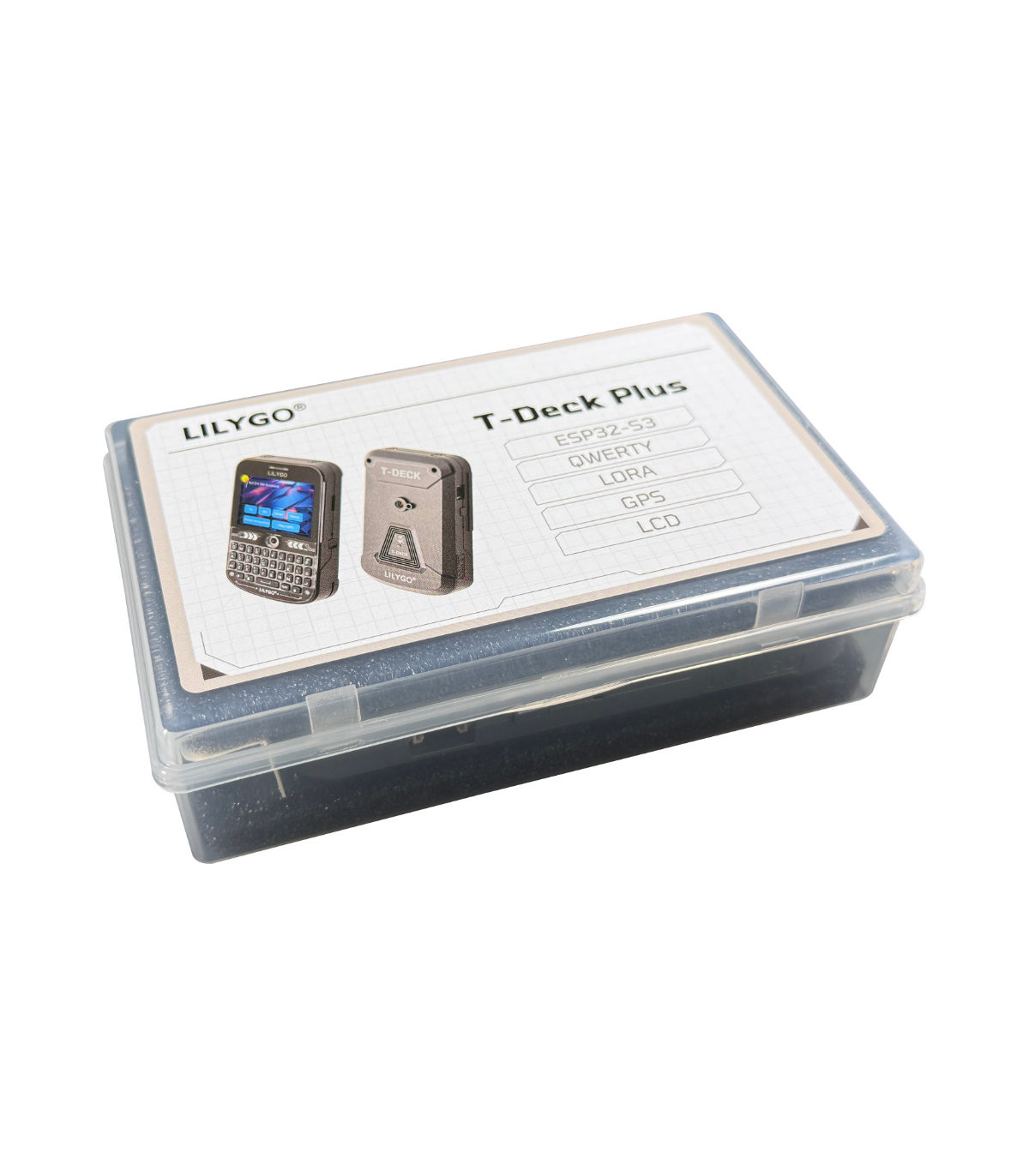

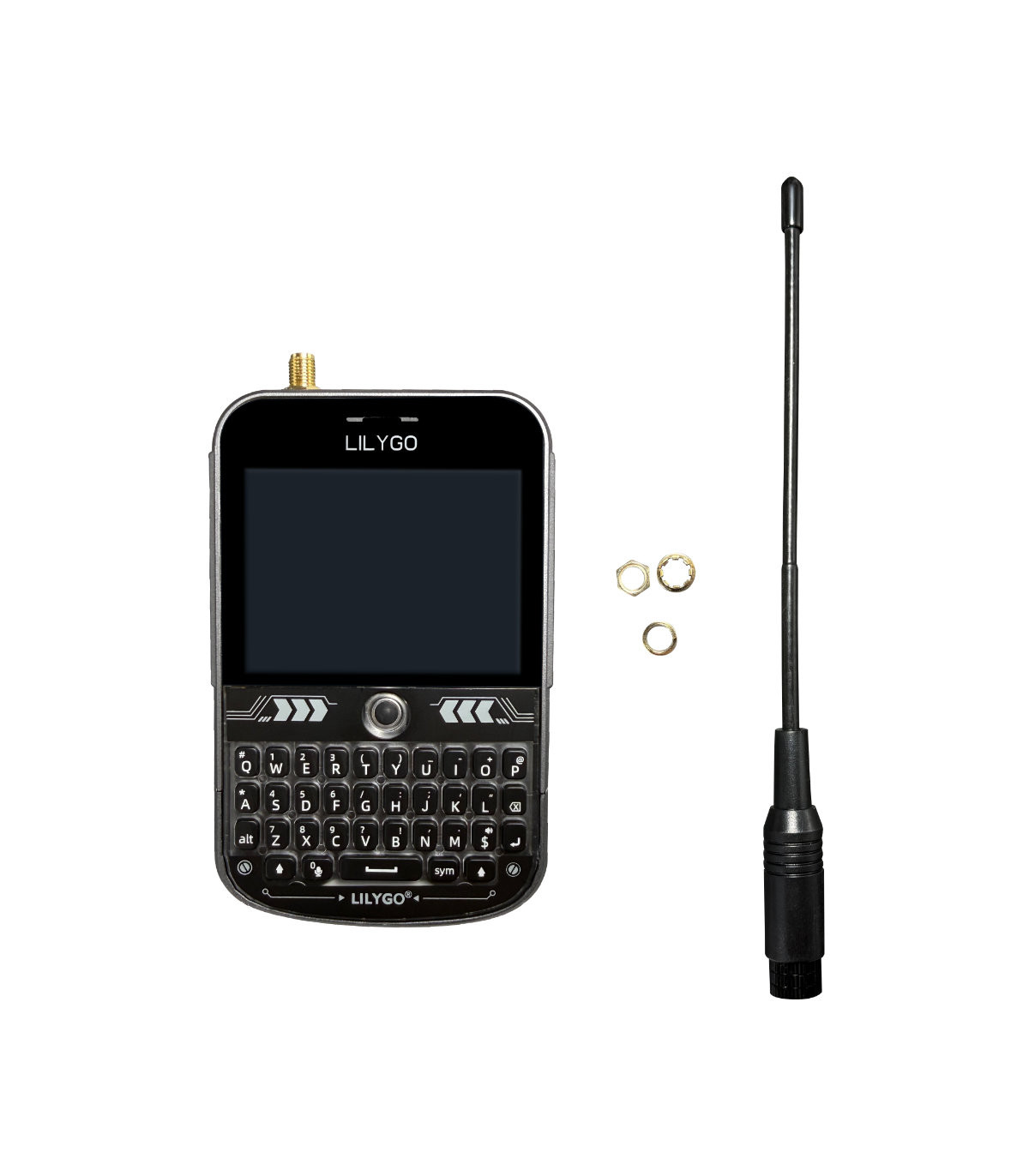

Included in package
T-Deck Plus

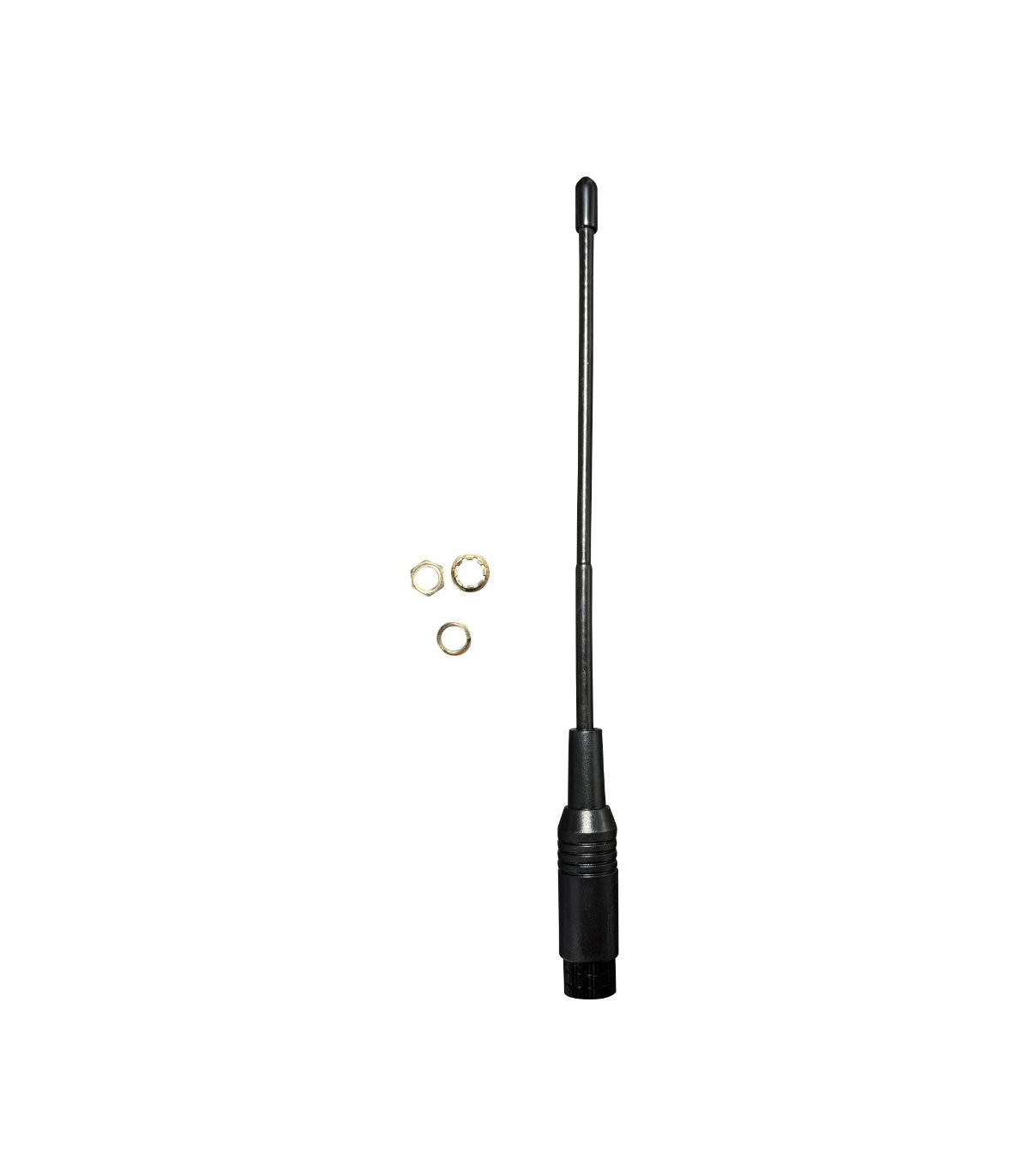

External antenna
Examples, 3D models, schematic
If you want to know more please check LoRa github.
Data sheet
- design
- pcb module
- product weight (brutto)
- 0.1 kg
- package dimensions
- 15x5x6 cm
Specific References
- ean13
- 1000090119469
