T-Beam SUPREME LILYGO
This is LILYGO T-Beam SUPREME in white L76K GSP. With built-in OLED display, LoRa transceiver, 6-axis IMU, GPS and 18650 battery socket.
66.55 €
(tax incl.)
66.55 €
55.00 € (without tax)
55.00 € (without tax)
Add to compare0
Love
Add to wishlist

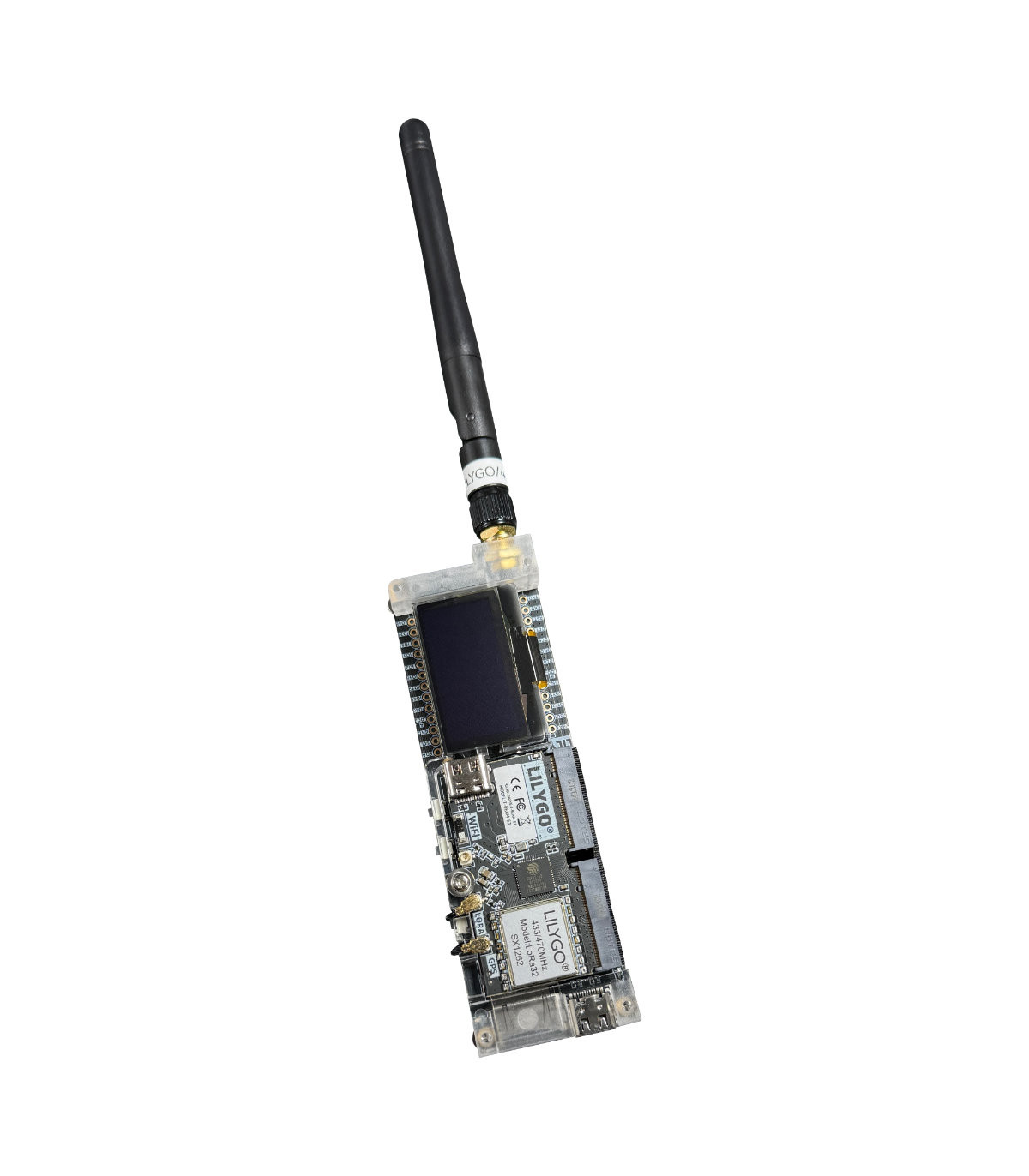

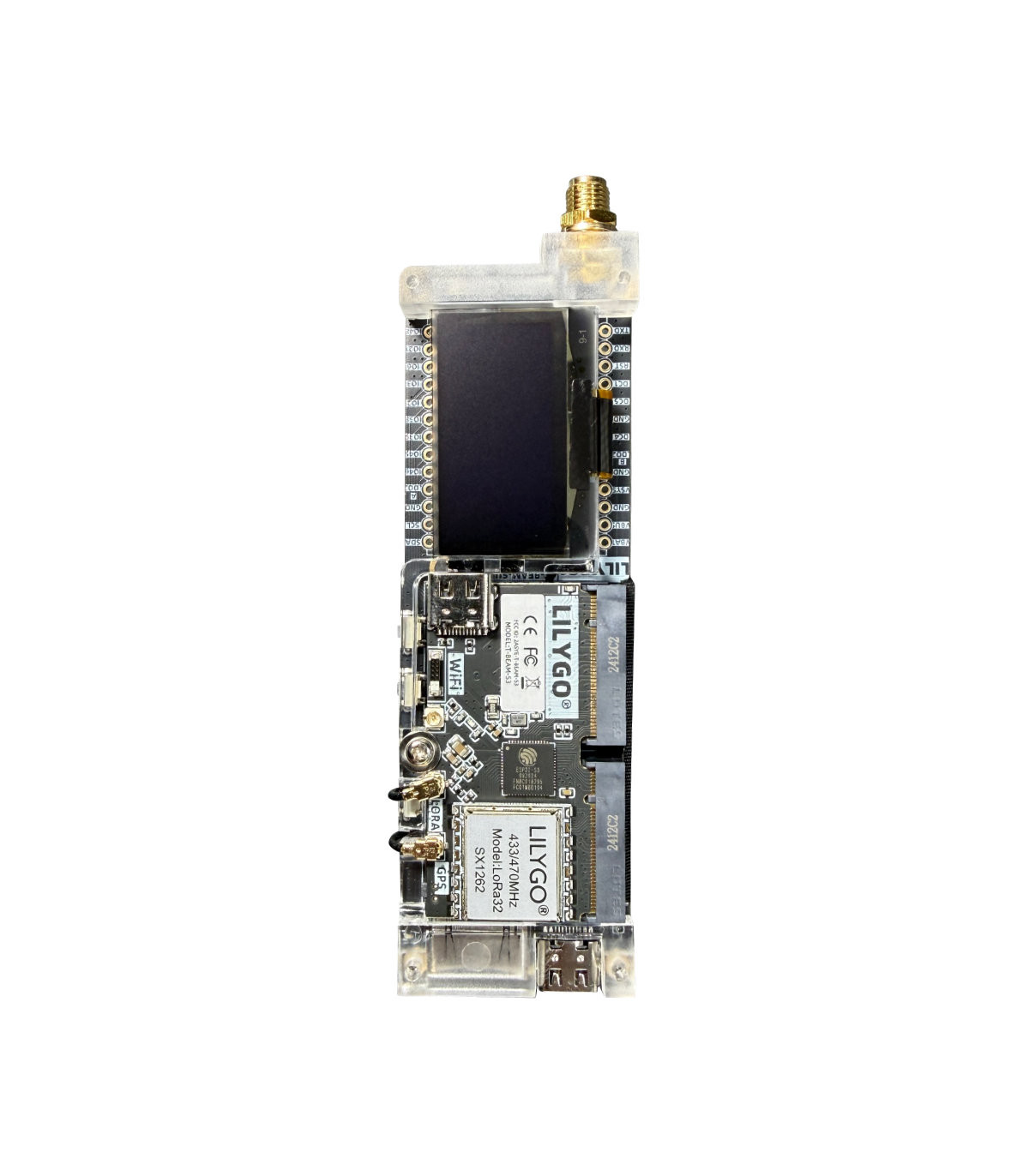

This is original Lilygo T-Beam SUPREME with L76K GPS module. This version T-Beam SUPREME offers not only 1.3 inch OLED display with 128x64 resolution, SX1262 LoRa transceiver, 2.4 GHz WiFi, Bluetooth, dual core ESP32, but also built-in 6-axis IMU QMI8658, L76K GPS module and 18650 battery socket. There are also GPIO and you can connect external LoRa antenna to SMA connector.
Using
- LoRa APRS projects (https://lora-aprs-wx.eu/)
- LoRa APRS code (https://github.com/richonguzman/)
- Meshtastic (https://meshtastic.org/)
- MeshCore (https://meshcore.co.uk/)
- MeshCom (https://icssw.org/en/meshcom/)
- LoRa APRS tracker
Main functions
- RF frequency 433 MHz or 868 or 915 MHz
- GPS module L76K for tracker
- ESP32-S3FN8 dual core
- Bluetooth, WiFi with Integrated antenna
- 8 MB PSRAM and 8 MB Flash memory
- 6-axis IMU QMI8658
- SX 1262 RF transceiver
- Up to 22 dBm of RF power
- Modulations: FSK, GFSK, MSK, GMSK, LoRa™️, OOK
- E-paper 1.3 inch OLED 128x64
- GPIO pins
- TF card slot

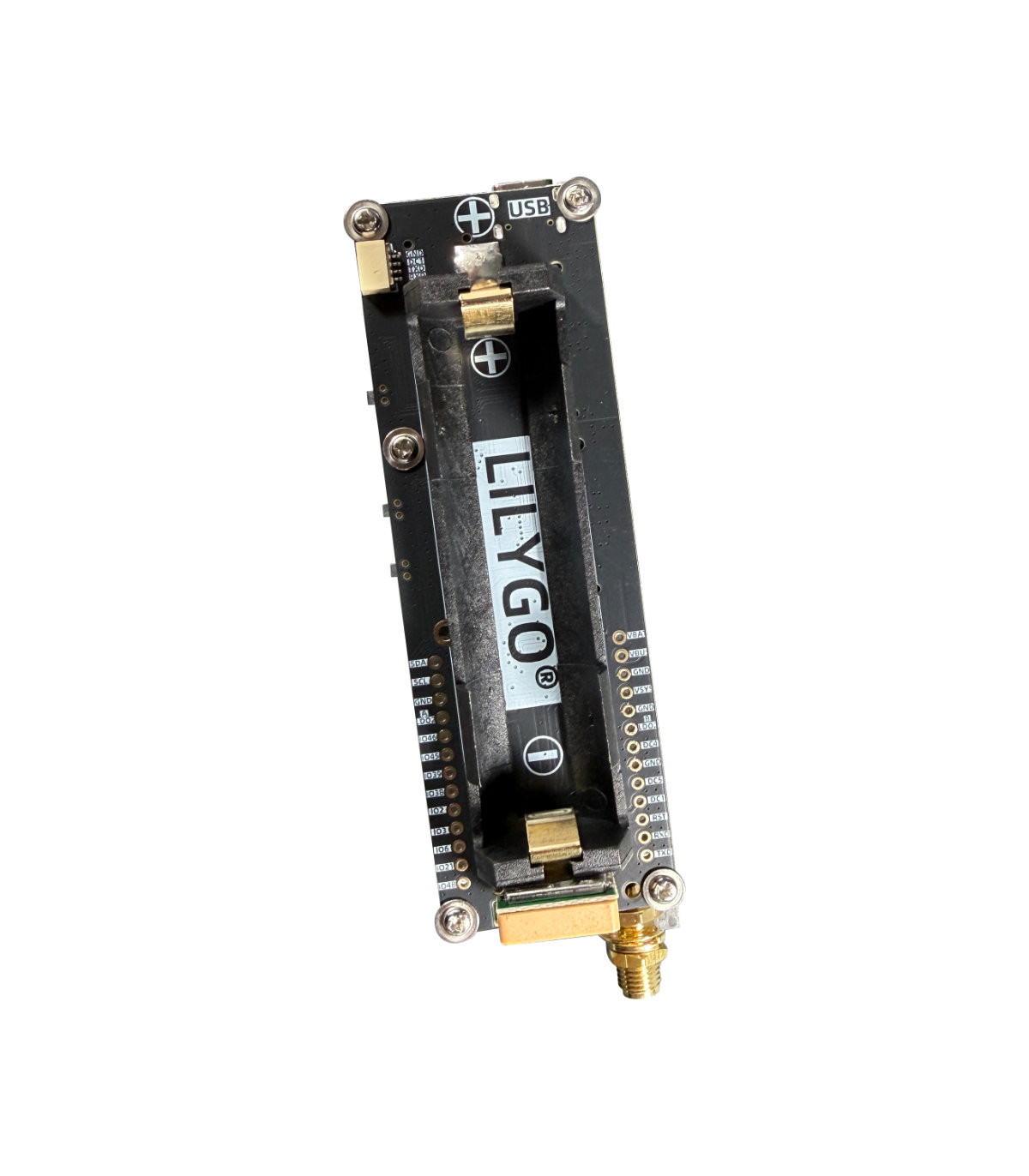

- Built-in 18650 battery holder
- External antenna at SMA

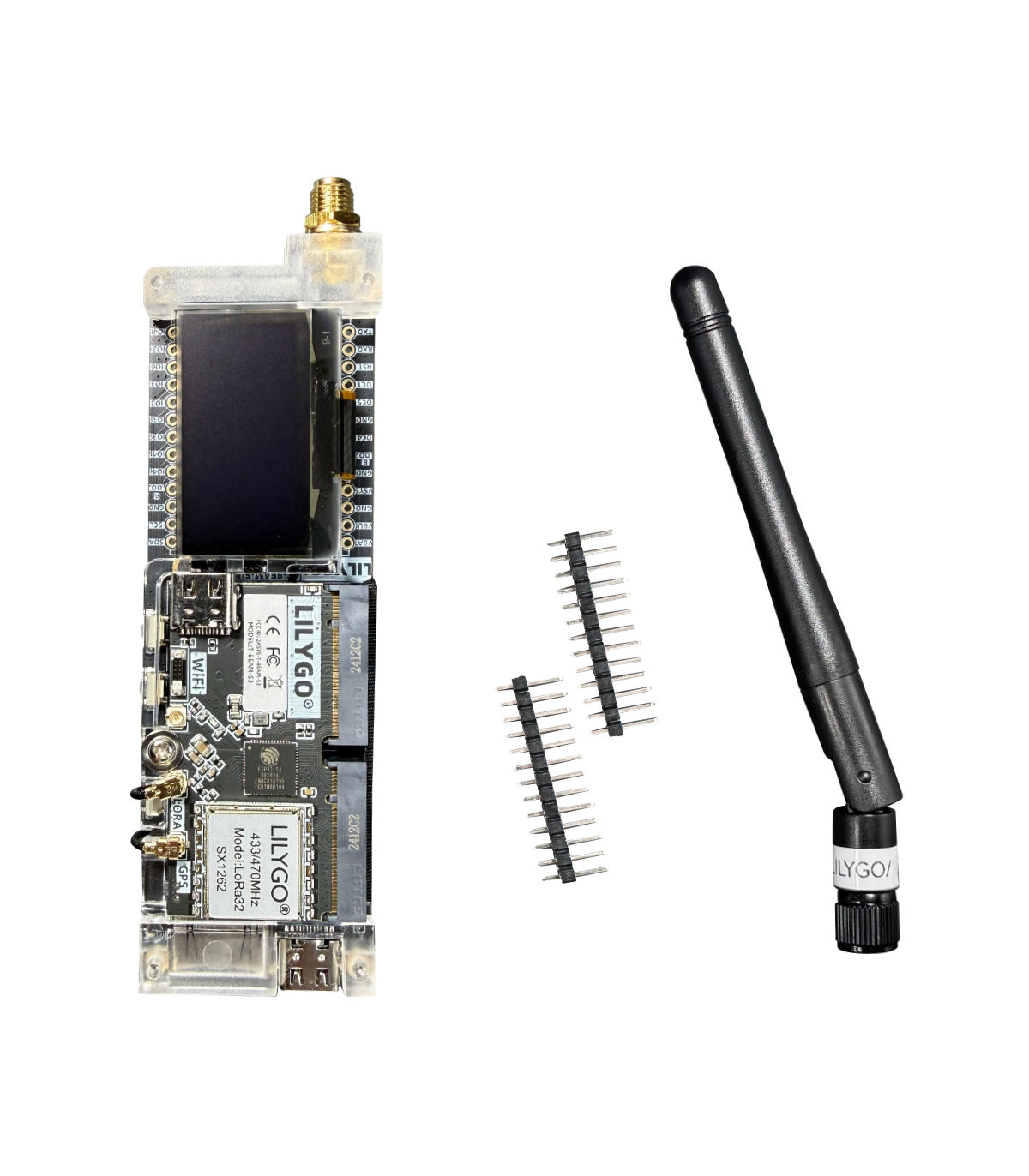

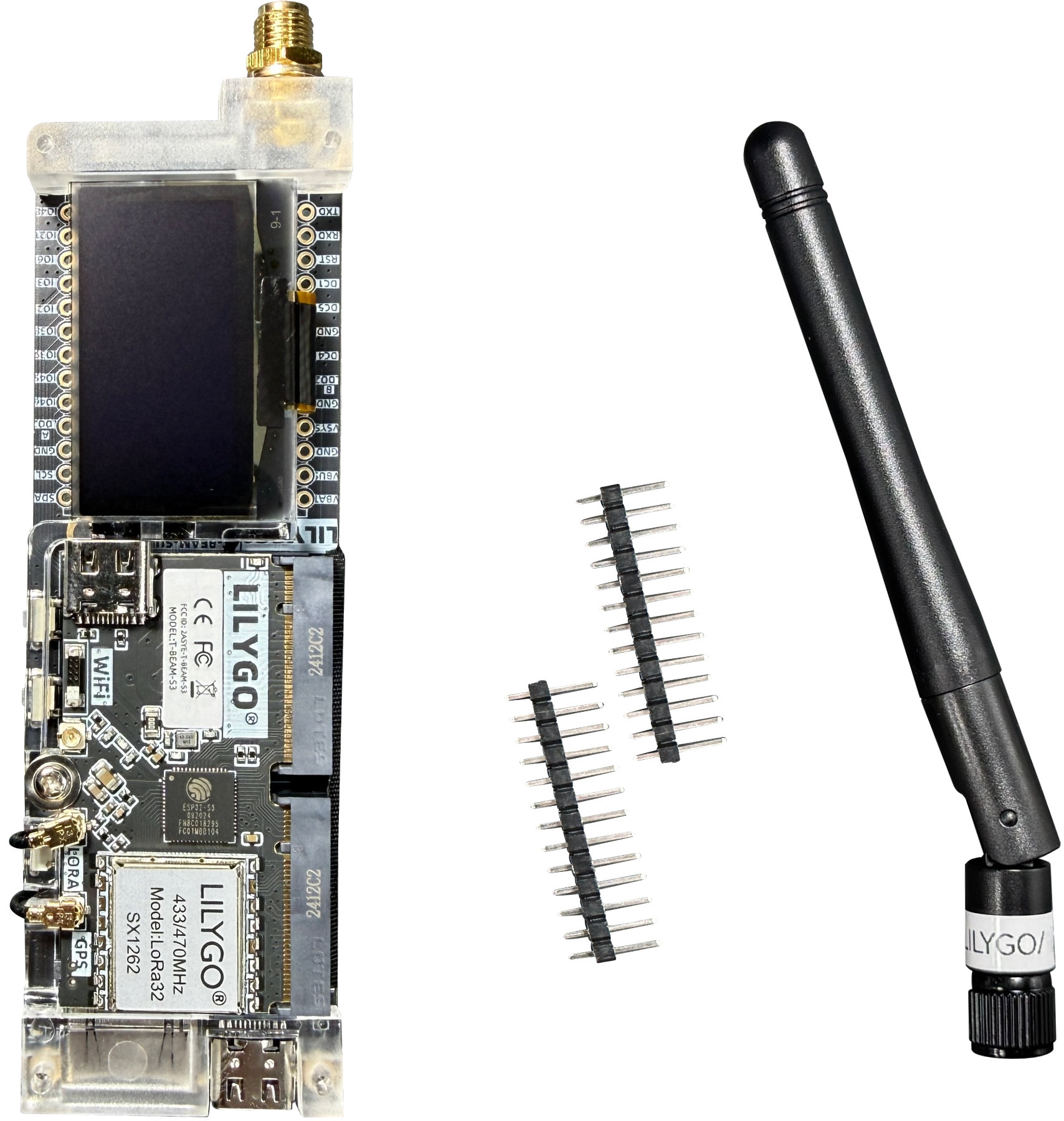

Included in package
T-Beam SUPEREME

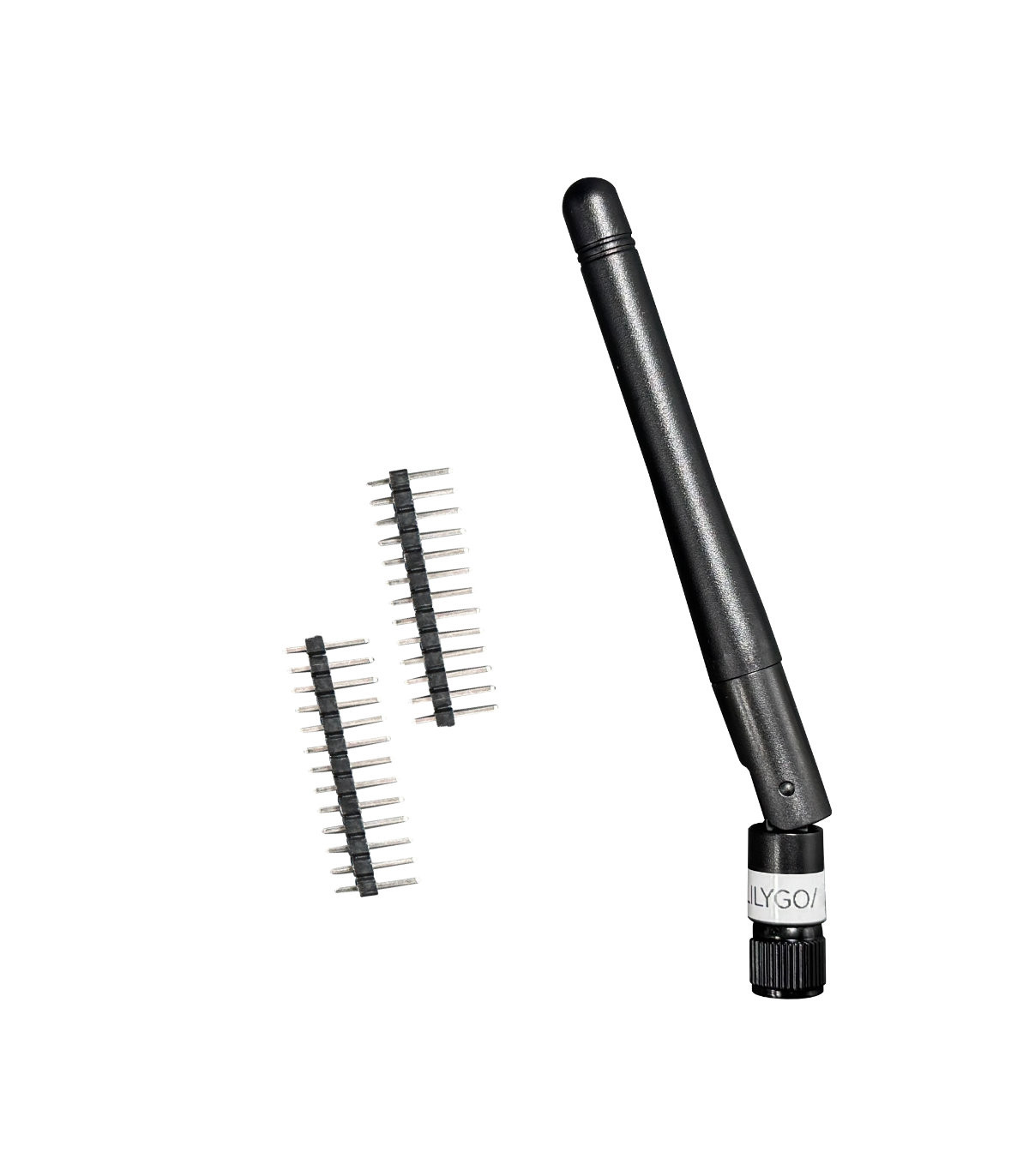

PIN headers
Small LoRa antenna
Examples, 3D models, schematic
If you want to know more please check LoRa github.
Data sheet
- design
- pcb module
- product weight (brutto)
- 0.3 kg
- package dimensions
- 22x16x4 cm
Specific References
- ean13
- 1000090119438
