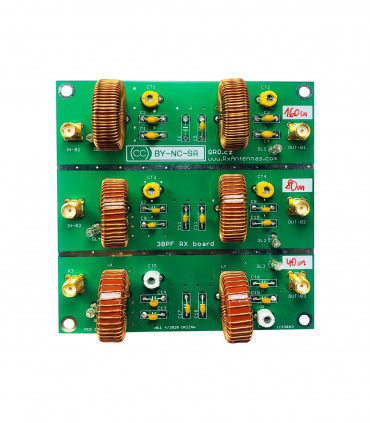

This is simply RX board with three Band Pass Filters. You can use it together with RX triplexer to obtain higher BP filtering.
RX Triplexer 2L manual
This is simply RX triplexer. There are three band pass filters used as splitters or combiners. With very low noise and very good band pass filtering. You can use it as single band signal combiner or as the multiband antenna splitter.
For example: You can split beverage RX antenna to 160, 80 and 40m outputs for the antenna switches for one RX on each band. Or you can split single band antennas (vertical array, antenna stacks etc) into one output. All bands are filtered by band pas filters. This output you can use for web based SDR or skimmer server for RBN. If you want to split or combine the same bands use 2-WAY SPLITTER.
Jump to
Applications
Schematic
PCB
KIT Assembling
Part list
Product details
Applications
One antenna to more single band RX
More antennas to one multiband RX (or more)
Web-based SDR, CW/RTTY/FT skimmer for RBN
More bands = more triplexers
Important NOTE: ⚠ If you want to split or combine the same bands use 2-WAY SPLITTER.
Schematic
PCB
KIT Assembling
pcb after assembling all the parts
Part list
| NAME | PART | VALUE |
|---|---|---|
| GL | neon lamp | lamp 65V AC |
| C1 - C4 | capacitor | THT 100pF |
| C5 or C6 | capacitor | THT 1.5nF |
| C7 - C10 | capacitor | THT 47pF |
| C11 | capacitor | THT 470pF |
| C12, C18 | capacitor | THT 220pF |
| C13, C15 | capacitor | THT 22pF |
| C14, C16 | capacitor | THT 10pF |
| C17 | capacitor | THT 150pF |
| CT5, CT6 | trimmer | 10pF |
| CT1 - CT4 | trimmer | 40pF |
| L | inductor | T94-2 |
| Wire | wire | 0.35 mm wire |
| SMA | connectors | SMA |
Product details
Included in package
PCB module assembled and tested or all parts for KIT version
| PCB dimensions (mm) | 100x100 mm |
|---|---|
| Weight brutto (kg) | 0.17 kg |
Manufacturer:
Ing. Jan Šustr
ID 05476356, VAT CZ8407024780
Palachova 1777/7, 591 01 Žďár nad Sázavou, Czech republic, Europe
General instructions:
Please also read general instructions before handling the product.
European Union Declaration of Conformity
Manufacturer Ing. Jan Šustr (QRO.cz):
ID 05476356, VAT CZ8407024780
Palachova 1777/7, 591 01 Žďár nad Sázavou, Czech republic, Europe
declares that the assembled product:
RX TRIPLEXER 2L
is compatible with the relevant Union harmonisation legislation directives:
EMC Directive 2014/30/EU
ČSN EN 61000-6-3 ed. 2
ČSN EN 61000-6-1 ed. 2 (333432)
On behalf of Ing. Jan Šustr (QRO.cz)
Ing. Jan Šustr, CEO
1st January 2023
