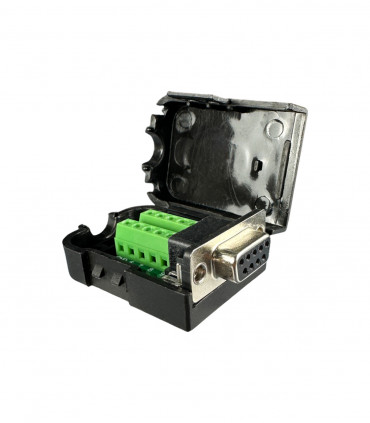

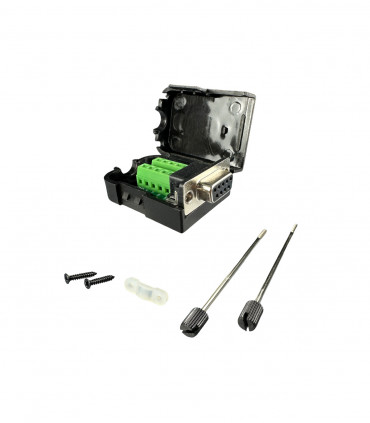

D-SUB solderless connector with terminal screws connection - DIY
8 Relay DIN module
Small 8 relay DIN rail module. Can be controlled by H or L level. Directly compatible with Easy Controller.
95.59 €
(tax incl.)
95.59 €
79.00 € (without tax)
79.00 € (without tax)
Brand:
Add to compare0
Love
Add to wishlist
This is universal 8 relay module with direct connection to our Easy Controllers (4-1, 6-1, SM 1-2, SM 1-3). The module can be controlled by H or L level - it can be used with other devices. The inputs have optocouplers isolators. The first six relays are miniature and can handle 2A 30V switching, the last two relays have two 8A contacts (16A total) with a recommendation to switch a maximum of 8A at 230V AC.
Using
- External relays for Easy Controllers
- Switching higher currents than EC
- Optocouplers isolation between realms and controller
- DIY relays for your CPU module
Main functions
- 8 relay as switch (NO, NC)
- Optocoupler isolation
- Universal control H or L (jumpers)
- Wide control voltage for H
- Relays 7 and 8 could switch 230 V
- DIN rail module
- LED indication
- DB9 male control connector
Parameters
- H control 3 to 14V DC
- for 3 to 12 V you need Vcc 12 ~ 14V DC
- for 12 ~ 14V you can use only control pin
- CTRL current: 3V/1mA, 5V/4mA, 10V/8mA
- L control needs Vcc 12 ~ 14V DC
- CTRL current 11mA
- all relays ON: 0.5A/12V
- Switching relays 1 to 6:
- relay Omron G5V2
- 2A/30V DC and 0.5A/125V AC
- curry current 2A
- max. operation 125V AC/DC
- max. switching capacity 60W
- Switching relays 7 and 8:
- relay RT424012
- rated current 8A
- rated voltage 250V AC
- breaking capacity max. 2000VA
- Module size: 14.5x98x40 mm
Available as
ASSEMBLED in BOX: ready to use
Included in package
8 relay module assembled and tested
Manual
If you want to know more please check our wiki with 8 Relay DIN module manual.
⚠ IMPORTANT NOTE: Relays 7 and 8 are able to switch 250V AC - please observe the safety regulation for working with 230V. This is a life-threatening voltage. If you want to use these relays to switch equipment on 230V, check the surge currents or limit them. Due to inrush currents, which can be many times higher than the operating current, the relays contacts can be damaged.
Data sheet
- type
- ASSEMBLED
- design
- in enclosure
- product weight (brutto)
- 0.31 kg
- package dimensions
- 18.5x14x10.5 cm
