Twisted pair of wires 150 Ohm - 300m/984 ft

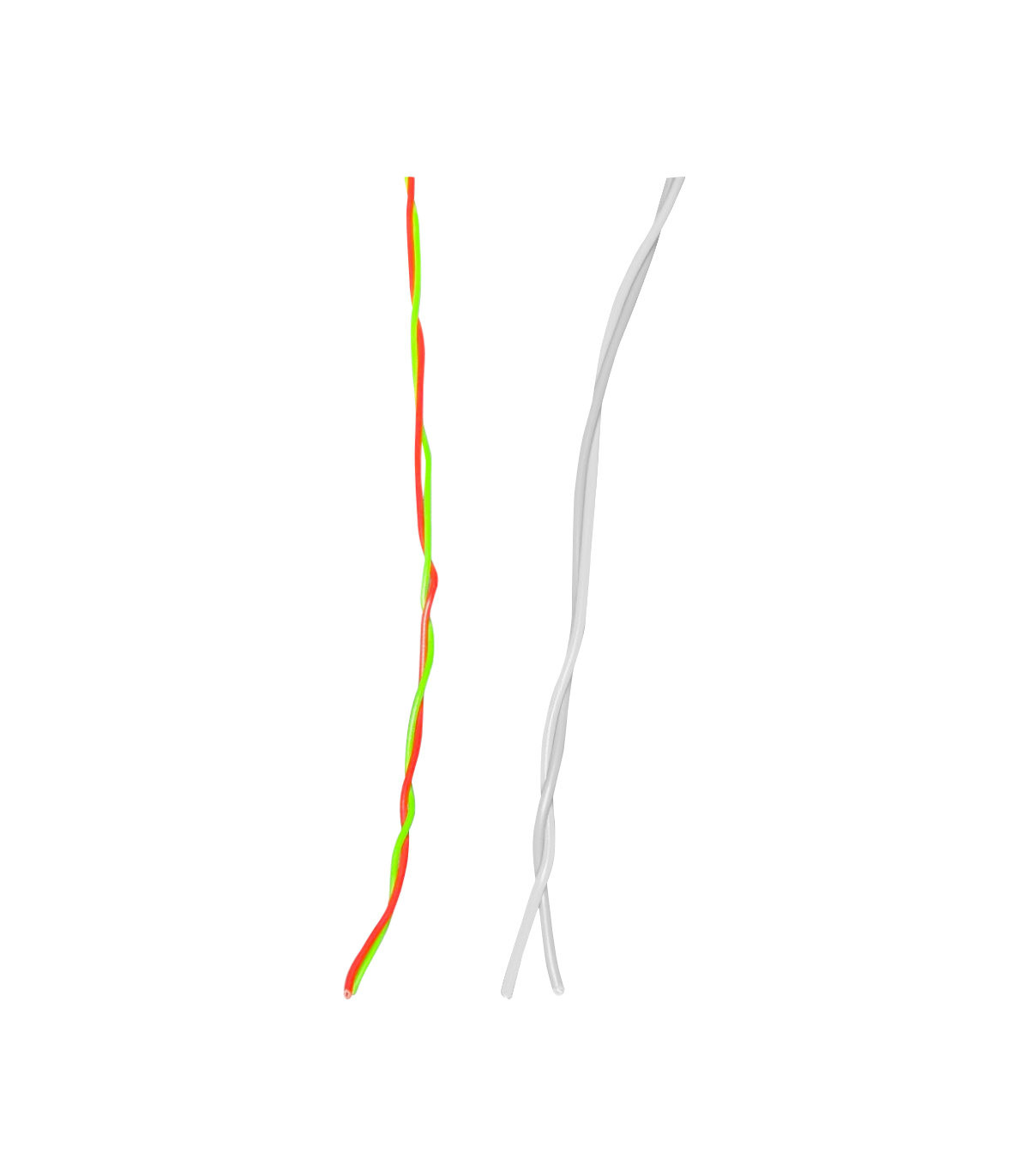

This is a twisted pair of wires with an impedance of approximately 150 Ohms. Suitable for portable or permanent Bi-Dir beverage antenna installation.
90.75 €
(tax incl.)
90.75 €
75.00 € (without tax)
75.00 € (without tax)
Add to compare0
Love
Add to wishlist

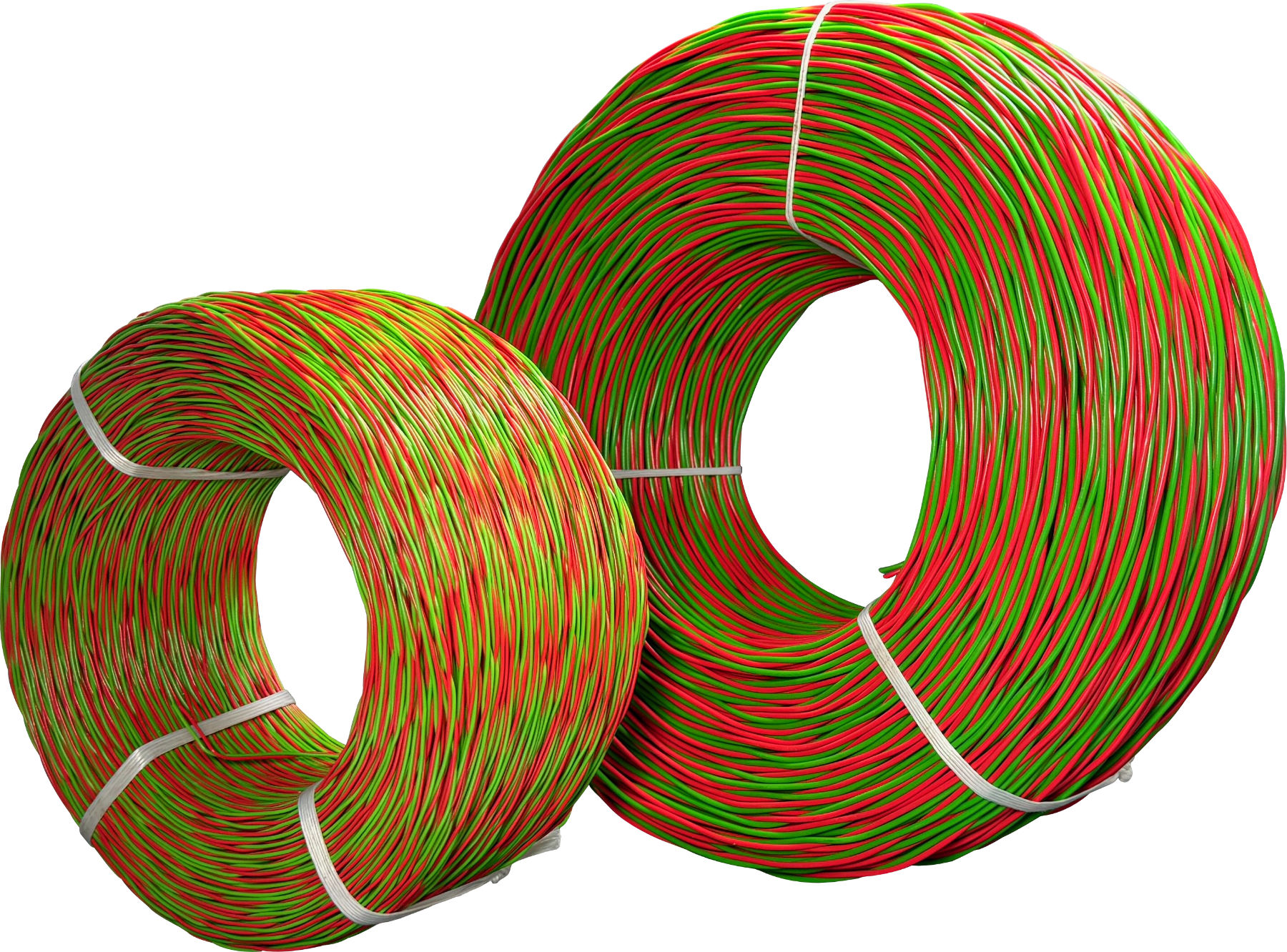

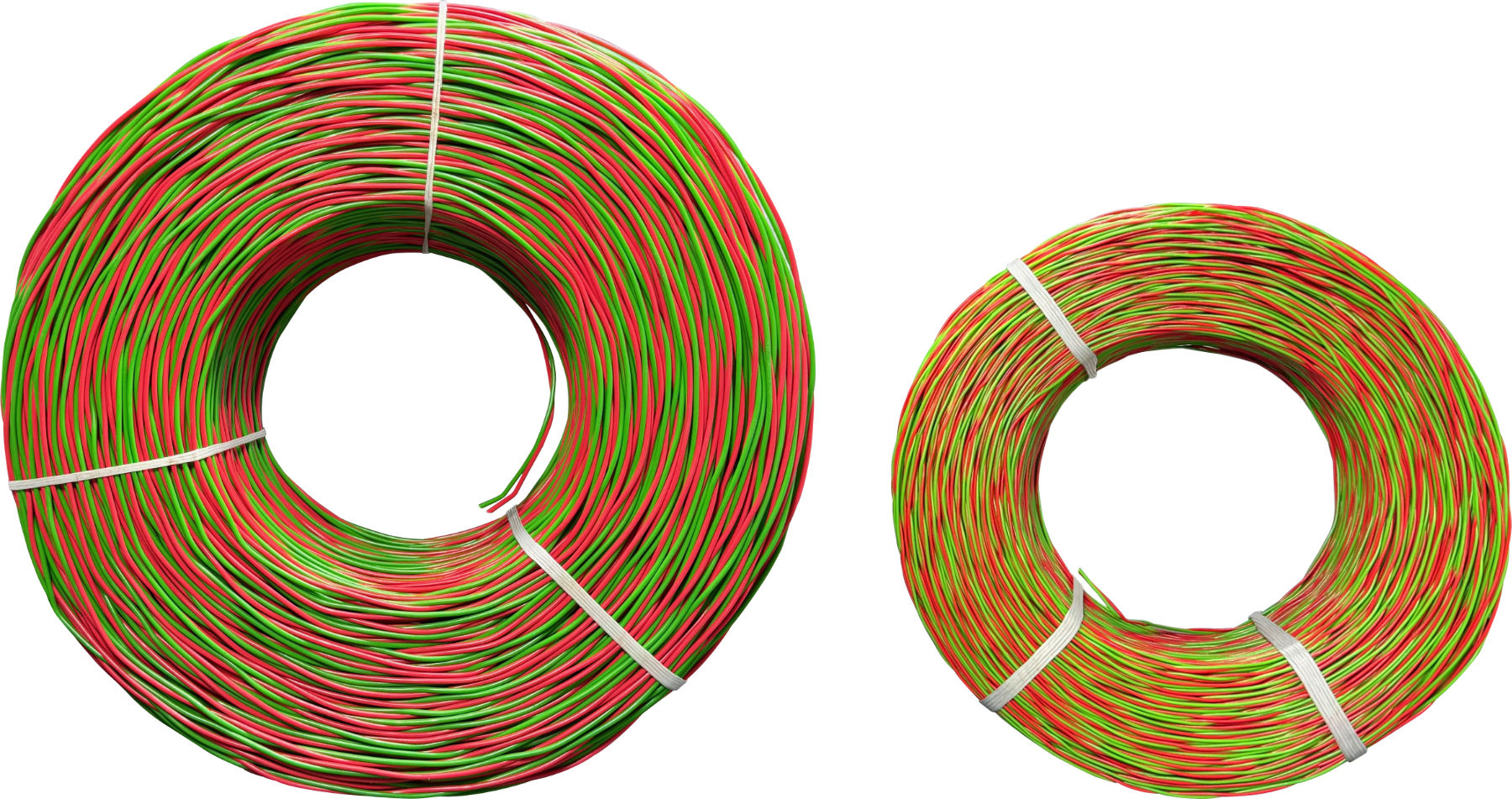

One of the options of the Bi-directional Beverage antenna is the construction with 150 Ohm line. This twisted pair of wires can be used as an antenna element. There are two wire diameters. First one is a lightweight and thin twisted pair, especially suitable for portable operation. Second one (thicker) is for permanent instalation. The wires are copper tinned. PCB insulation. Package contains approx. 300 m.
Using
- Bi-Dir beverage with 150 Ohm antenna element
- 4-way beverage system (version 150 Ohm)
- Recommended antenna support every 10 m (15 m)
Main functions
- Antenna element 150 Ohm
- Lightweight
- Ideal for portable operations
- 0.5mm not recommended to area with ice
Parameters for 0.5mm - 24 AWG
- Copper tinned wires
- Wire diameter 0.5 mm, 0.2 mm², 24 AWG
- PVC insulation, max. 1.1 mm
- Resistance 94.8 Ohm/km
- Weight 5.9 kg/km
- Operations voltage max. 500 V
- Test voltage 2 kV
- Temperature range -40 to +60 ℃
- Length approx. 300 m/984 ft
- Weight approx. 1.5 kg
Parameters for 0.8mm - 20 AWG
- Copper tinned wires
- Wire diameter 0.8 mm, 0.5 mm², 20 AWG
- PVC insulation, max. 1.6 mm
- Resistance 36 Ohm/km
- Weight 13 kg/km
- Operations voltage max. 500 V
- Test voltage 2 kV
- Temperature range -40 to +60 ℃
- Length approx. 300 m/984 ft
- Weight approx. 3.9 kg
Data sheet
- cable length
- 300 m (approx.)
- product weight (brutto)
- 1.6 kg
- package dimensions
- 27.5x22.5x9.5 cm
