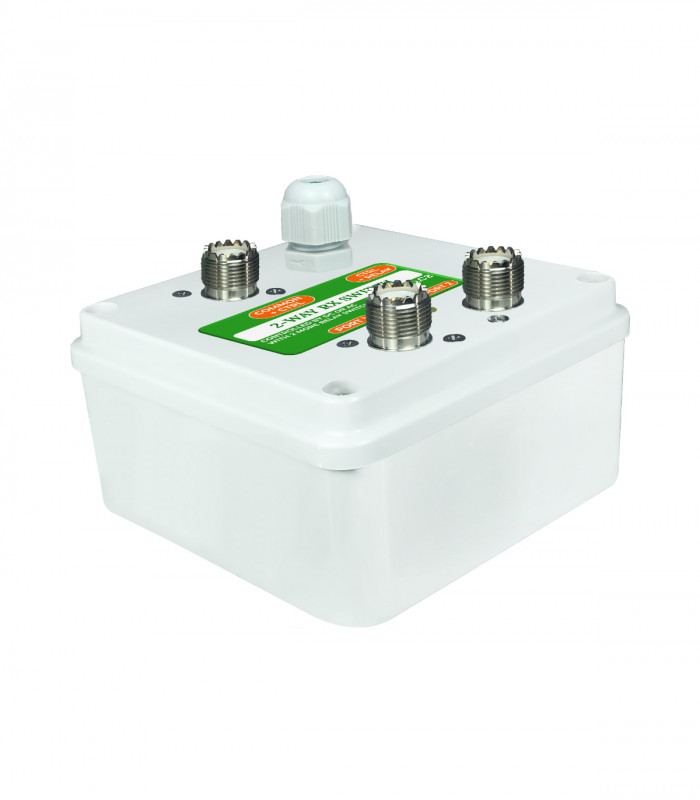

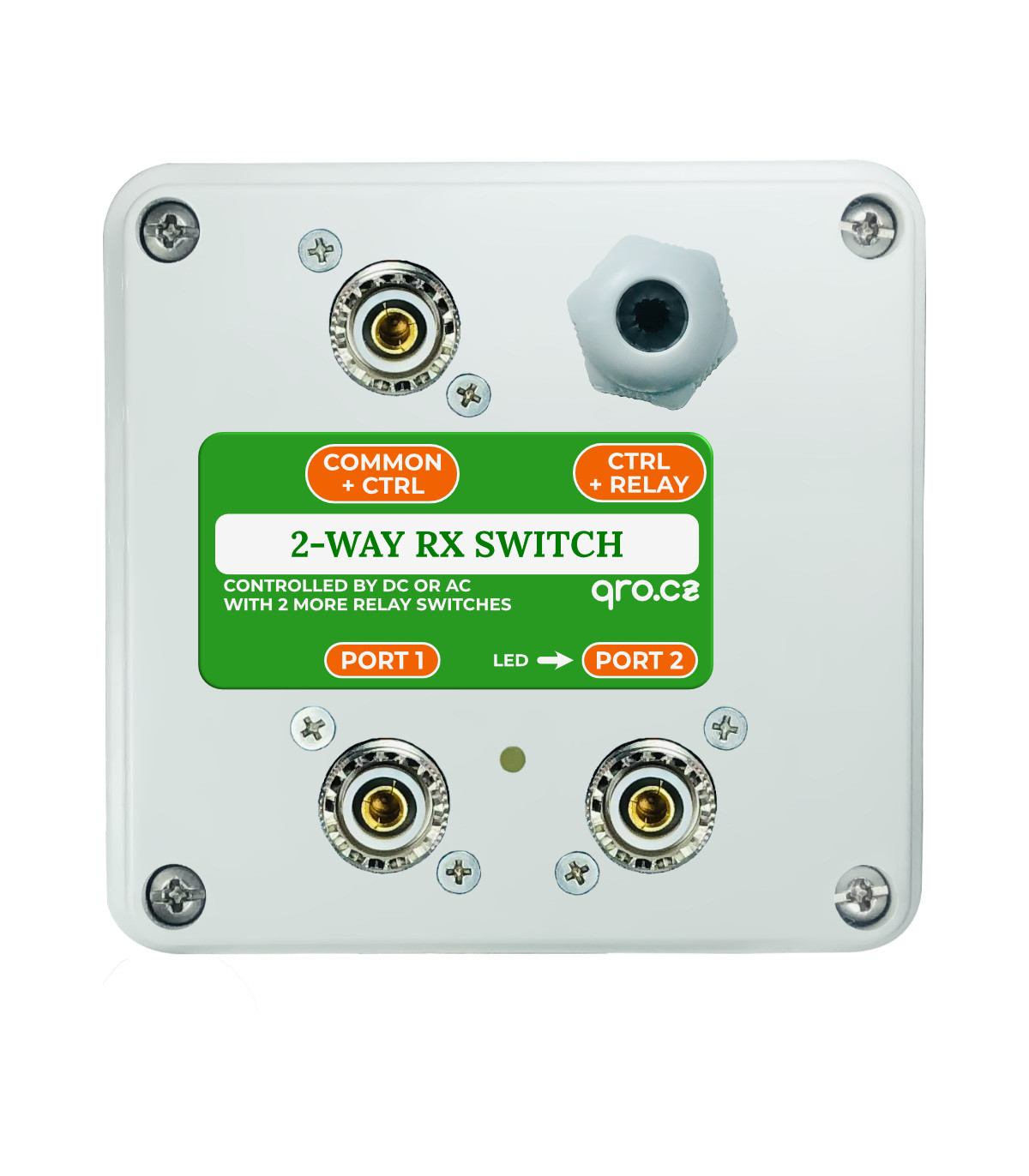

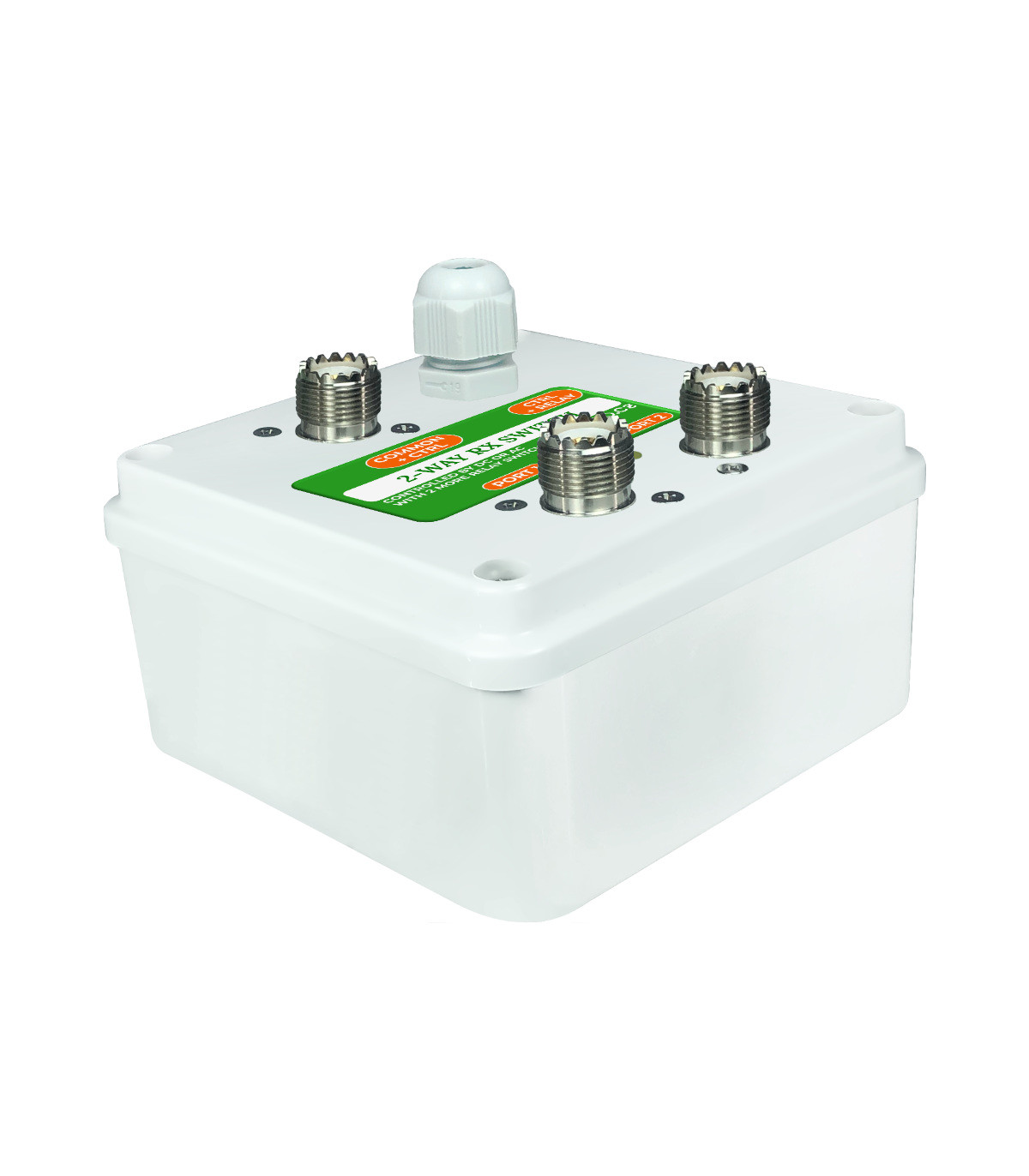

2-way RX switch

2-way RX switch

RF switch controlled by AC or DC voltage over coax

Read moreShow less

116.16 € (tax incl.)

116.16 €
96.00 € (without tax)

connector

in stock, shipped in 2-3 days

Price history

The lowest price in the 30 last days was 116.16 €

Brand:

Add to compare0

Love

Add to wishlist

Description

This is an RF switch for RX equipment with two inputs and one output. The advantage of this switch is that it can be controlled by positive or negative DC voltage as well as AC voltage. This is done by means of jumpers. Control can be via coaxial cable or by applying voltage to the internal terminal block.

Another advantage of this switch is ability to send voltage from the output to the inputs. In various combinations it is possible to switch the input and apply voltage to the input at the same time. For example, it is possible to switch the input and supply power to a preamplifier or active antenna at the same time.

The output has a common mode filter and the RF paths have input and output overvoltage protectors. The unused input(s) are connected to dummy loads.

You can use this box for example to switch between Beverage antennas remotely in the filed. Preferably you can switch between two Bi-Dir Beverage antennas and get 4 directions on one coaxial cable.

You can also use the connectors where the two switch contacts of the relay are connected. These contacts can switch external devices, switch power to preamps, switch the audio path when switching SDRs, etc.

Using

2-way RF switch controlled by AC or DC (+ or -)
2-way switch with AC or DC pass through
Four direction beverage system
Four direction RX antenna with two Bi-Dir antennas - image
2-way switch for 4-way controller - K9AY or Bi-DIRs
Remote switch controlled over coax
2-way switch with 2 extra relay contacts

Main functions

2-way RF switch
4-way switch for Bi-DIR Beverages
Broadband: 0.1 MHz to 50 MHz
Controlled over coax or socket at PCB
Controlled by AC or DC
Controlled by + or - DC
PORT 1 to COMMON without voltage
Voltage switch to PORT 2
Output Common-mode filter
High voltage protection
AC or DC pass through (jumper)
Unused input goes to dummy load resistor
50 Ohm dummy loads
Coax cables 50 or 75 Ohm
Two switch contacts for external devices
LED indication
High quality connectors
Stainless screws
IP56 box - recommended to protect it against water
Feeder size 100x100 mm
ASSEMBLED AND TESTED VERSION

Parameters

2-way RF switch
Broadband 0.1 to 50 MHz
Control voltage up to 15 V AC/DC
Maximal current up to 300 mA
Insertion loss less then 0.2 dB @ 7 MHz
Isolation over 60 dB @ 7 MHz
SWR under 1:1.1 @ 28 MHz and 50 Ohm
Common-mode current choke with isolation over 30 dB at output port
Internal dummy load 50 Ohm 2 W
AC or DC pass through from output to ANT port
Controlled by +12 V or - 12 V DC or AC

Available as

ASSEMBLED: ready to use

Included in package

Switch assembled and tested

Manual

If you want to know more please check our wiki with 2-way RX switch manual.

Block diagram

For more information about switch settings and usage, please refer to the manual

Example 1: AC or DC pass through for active antenna (DC)

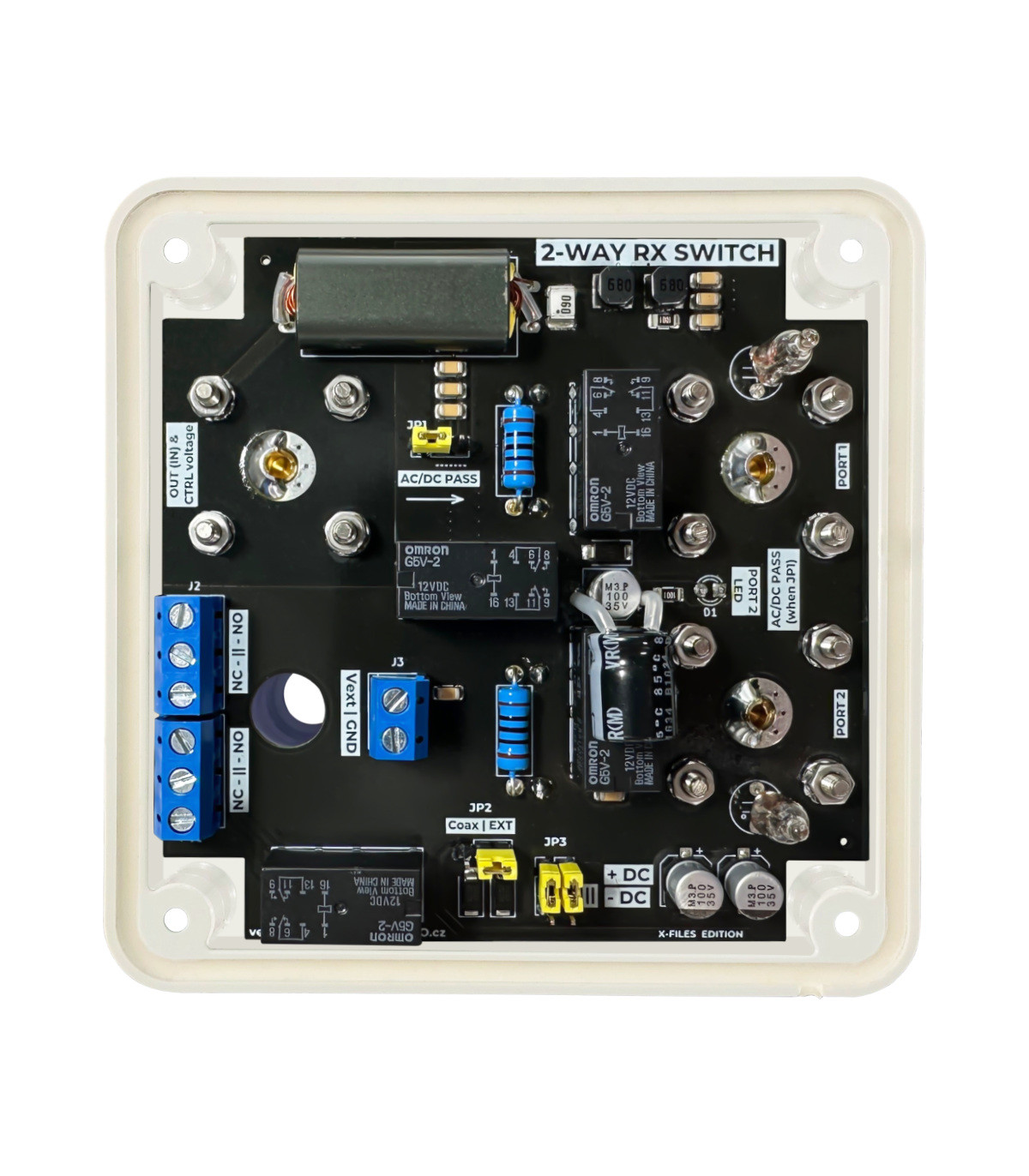

Using the Jumpers, it is possible to set both the control method and the voltage supply to the antenna port. This feature can be used to power an active antenna (MiniWhip), an antenna preamplifier (RX preamp BOX) or disconnect protection (ANT SAFE DISCONNECT).

Example 2: 4 directions with two Bi-DIR Beverage antennas

There is one of 4 examples for 4 directional array of two Bi-DIR Beverage antennas controlled over one coax cable. Direction switching is done by voltage. You can find more: technical article Where are your feeders?

Example 3: 4-WAY Beverage system (+ K9AY) with controller

You can use these switches for whole 4-way Beverage system including optional K9AY.

Example 4: 2-way RF switch + Audio switch

Another option is to use a single antenna switch for two receivers. Preferably, it is possible to use an internal relay with outputs and switch for example the Audio path.
