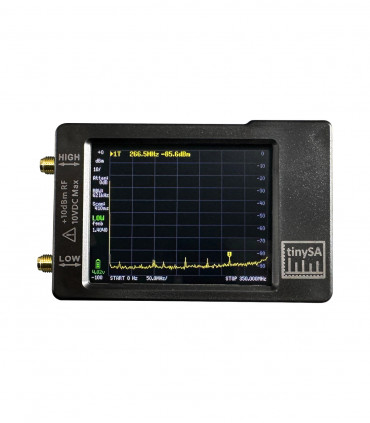

TinySA ultra spectrum analyzer

Handheld 4inch SA 100kHz to 6 GHz witch Signal Generator

Read moreShow less
193.60 € (tax incl.)
193.60 €
160.00 € (without tax)
in stock, shipped in 2-3 days

Price history     Price history

The lowest price in the 30 last days was 193.60 €

Add to compare0
Love
Add to wishlist
Description

This is a very powerful handheld Spectrum Analyzer with RF signal generator. The display is a 4 inch touch display with 480*320 pixels resolution and 16 bit depth. You can use resistive touch or Jog switch control. Color display showing max 450 points providing gapless covering up to the full frequency range. Switchable resolution bandpass filters from 200Hz to 850kHz. Built-in 20dB optional switchable LNA. There is microSD card slot for storing measurements, settings and screen captures Internal attenuators 0dB to 31dB (cannot be used in combination with LNA). Rechargeable battery allowing a minimum of 2 hours of portable use.


Applications

  • Spectrum Analyzer
  • RF generator
  • Spectrum monitoring
  • PC controlled SA+TG

Parameters

  • Display: Resistive touch, 4.0", 480x320 pixels
  • Displayed point: max. 450 per scan
  • Power supply: 5V USB (1.3 A Max)
  • Battery operation: up to 2 hours
  • SD card slot: microSD 32 GB card inluded
  • Audio output: 3.5 jack

Spectrum analyzer

  • Frequency range: 100 kHz ~ 800 MHz (normal mode)
  • Frequency range: 100 kHz ~ 6 GHz (ultra mode)
  • Max. input level: +6 dBm with 0 dB internal ATT
  • Input impedance: 50 Ω (input ATT > 10 dB)
  • Compression point: 1 dB at -1 dB with 0 dB internal ATT
  • Phase noise: -90 dB/Hz at 100 kHz offset, and -115 dB/Hz at 1 MHz offset
  • Dynamic range: 30 kHz RBW of 70 dB
  • Absolute Power lever accuracy: +/-2 db (after calibration)
  • Resolution filters: Manual (0.2, 1, 3, 10, 30, 100, 300, 600 and 850 kHz) or Auto
  • Built-in optional 20 dB LNA with Noise Figure of 5 dB
  • Screen resolution of 51, 101, 145, 290 or 450
  • Headphone output: AM only

Signal generator

  • Sine wave output: 100 kHz to 800 MHz
  • Output level: -110 dBm to -20 dBm
  • Square wave: up to 4.4 GHz
  • Output frequency resolution: 57.2 Hz
  • AM modulation depth between 10% and 100%
  • FM deviation between 1 kHz and 300 kHz

Reference generator spec

  • Optional square wave output: -35.6 dBm @ cal output
  • Frequency: 1 MHz, 2 MHz, 4 MHz, 10 MHz, 15 MHz or 30 MHz

Info & Details

PC control: tinysa.org
Measurement Examples: tinysa.org
Manual: tinysa.org


Included in package

TinySA ultra Spectrum analyzer
32 GB microSD card
2pcs SMA pigtal cable
SMA M-M adapter
Telescopic antenna with SMA (30 cm)
USB-C charging cable
Control pick

Paper box





tinySA ultra spectrum analyzer by qro.cz hamparts.shop



tinySA ultra spectrum analyzer by qro.cz hamparts.shop



Read moreShow less
