Bias Tee BOX DC

A bias tee is used to insert DC power into an HF signal to power remote antenna amplifiers or other devices.

Read moreShow less
48.79 € (tax excl.)
48.79 € without tax
59.04 €
connector
  • F
  • PL
Brand:
Add to compare0
Love
Description

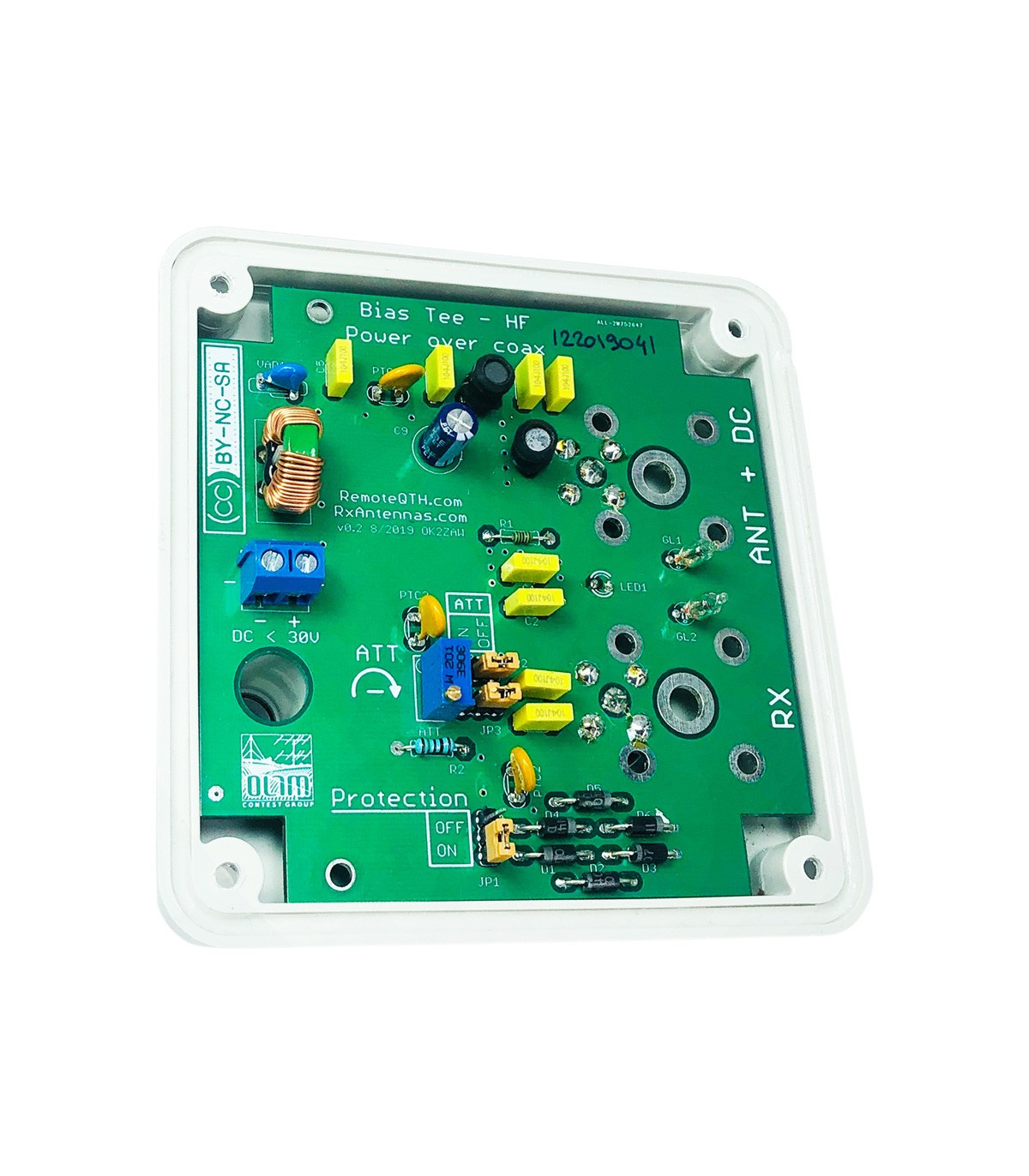

This bias tee box is used to insert DC power into an HF signal to power remote antenna amplifiers or other devices. It is usually positioned at the receiving end of the coaxial cable to pass DC power from an external source to the coaxial cable running to powered device. A bias tee consists of a feed inductor to deliver DC to a connector on the device side and a blocking capacitor to keep DC from passing through to the receiver. Bias tees are used in a variety of applications, but are generally used to provide an RF signal and (DC) power to a remote device where running two separate cables would not be advantageous.


Using

  • Providing an RF signal and (DC) power to a remote device over one coax
  • You can use bias tee on both sides as DC IN and OUT from RF coax
  • For preamplifier or Bi-dir beverage

Main functions

  • Broadband: 0.1 MHz to 60 MHz
  • Variable ATTENUATOR - image
  • Front-end protection with diodes - image
  • DC short protection about 1A7
  • Power supply common-mode filter
  • High voltage and current protections
  • LED diode indication of DC power on the coax
  • You can set ATT when you have too high gain of preamp
  • Quality connectors
  • IP56 box - recommended to protect it against water
  • Feeder size 100x100 mm
  • ASSEMBLED VERSION

Parameters

  • Supply voltage DC up to 24 V
  • Supply current up to 500 mA
  • Insertion loss lower than 1 dB - for minimal ATT


Available as

ASSEMBLED: ready to use
KIT: all parts + PCB and IP56 box - KIT VERSION
Connectors: PL SO-239 or F
PCB: only PCB

Manual

If you want to know more please check our wiki with Bias Tee Box DC manual.



version with PL SO-239 connectors

bias tee box pl so-239 connector qro.cz hamparts.shop

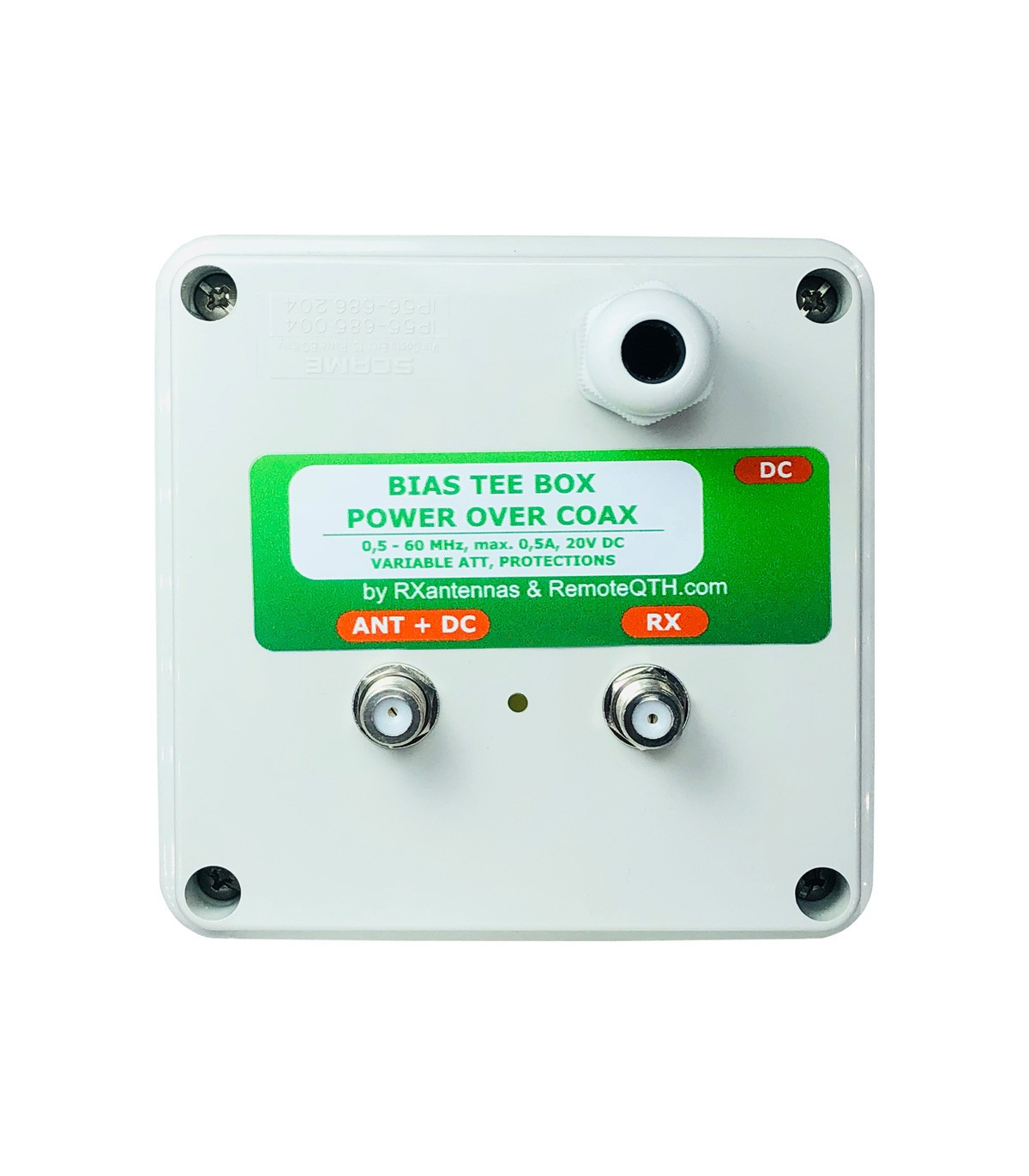

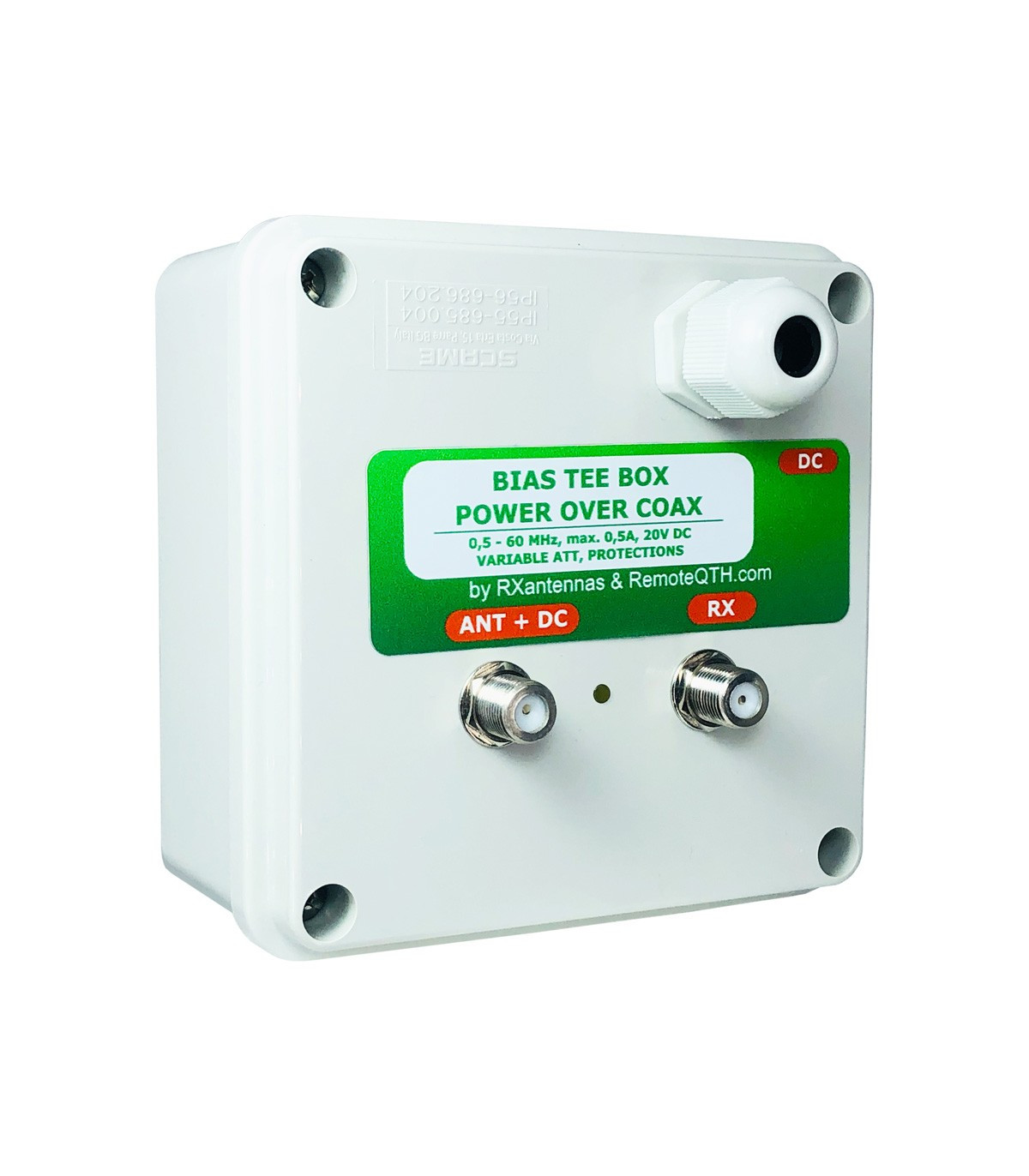

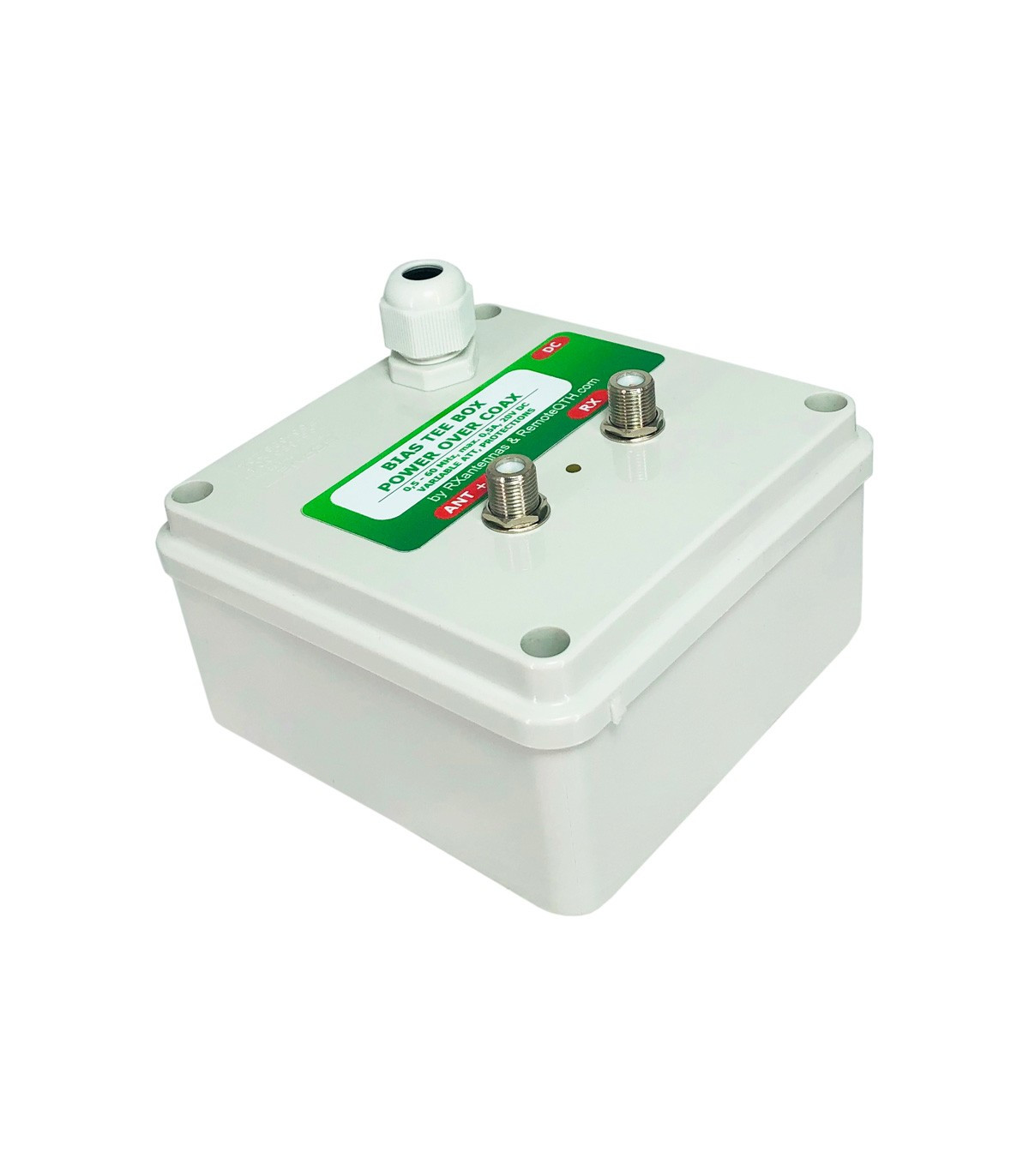

version with F connectors

bias tee box f connector qro.cz hamparts.shop



Bias Tee BOX with RX Preamp BOX

bias tee box dc with rx preamp box qro.cz hamparts.shop




ATT OFF: SWR, insertion loss

bias tee box dc measurement qro.cz hamparts.shop




ATT set to 10db: SWR, insertion loss

bias tee box dc measurement qro.cz hamparts.shop
Read moreShow less
Product Details

Data sheet

type
ASSEMBLED
design
in enclosure
usage
RX
impedance
both 50 & 75 Ohm
front-end protection
output
frequency range
0.1 MHz to 60 MHz

Specific References

ean13
1000090096494
