10 MHz TINY GPSDO

Main functions

• PLL-GPSDO 10 MHz
• 10 MHz sine wave output
• 1 PPM output
• GPS NMEA RS232 output

Parameters

• Supply voltage: DC 4.8 - 5.3 V
• Supply power: start < 4 W, running < 1.5 W
• GPS antenna voltage: DC 5 V/0.1 A
• Output 1PPS signal: square wave, 3.3 Vpp
• 10 MHz output: sine wave
• 10 MHz output power: 10 dBm ± 2 dB
• RS232 output: signal GPS NMEA, 9600 bps
• Accuracy: ± 25 µHz at 10 MHz
• Long time jitter typ. 16 mHz (GPS locked)
• 10 MHz OCXO from CTI
• Dimensions: 45x45x18 mm (W x H x L including connectors)

Warm up start

• The first start in new location can take around 10 minutes
• Depends on satellite count and GPS antenna position
• Standard warm up after start is less than 5 min

• GPS antenna

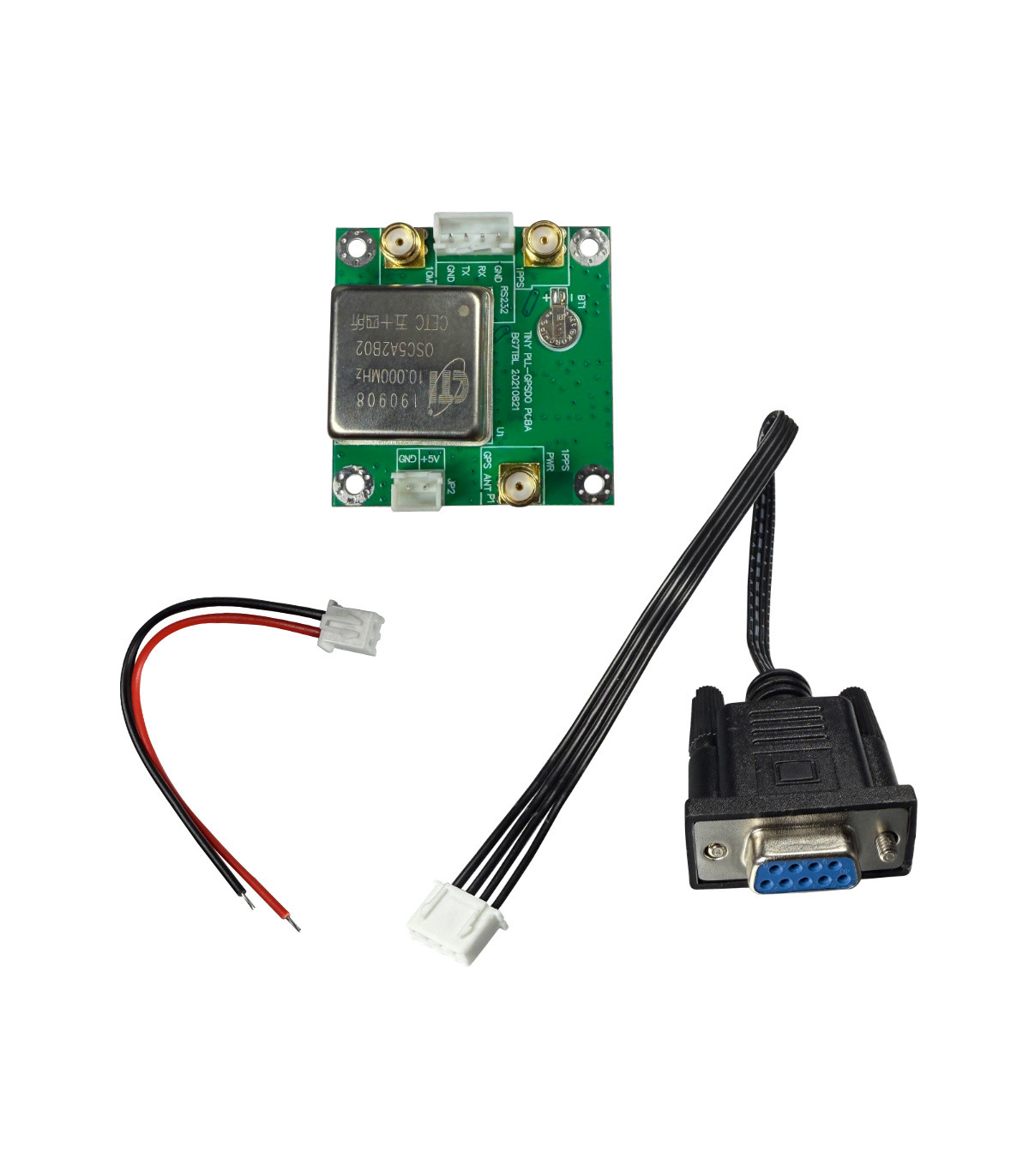

Included in package

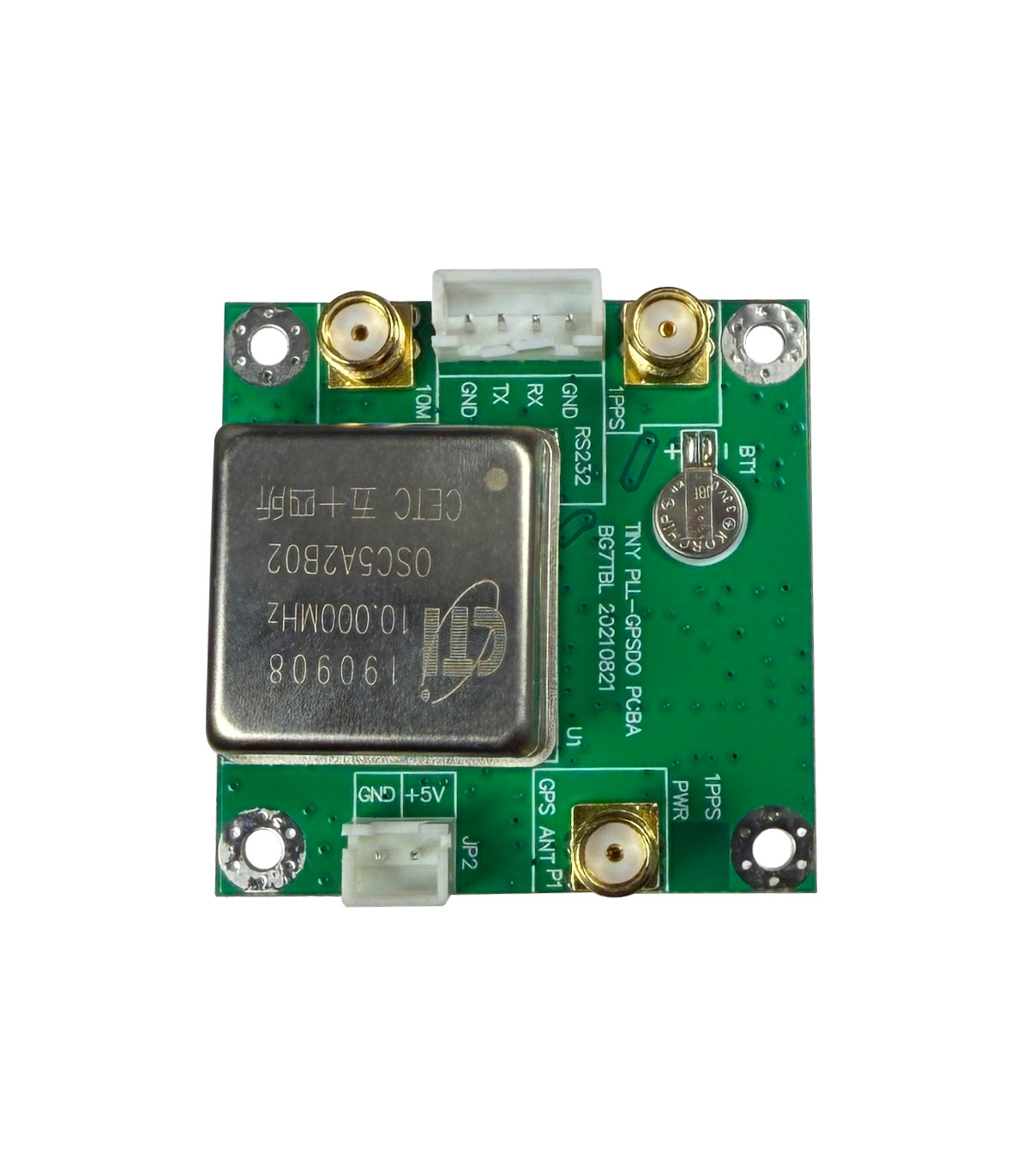

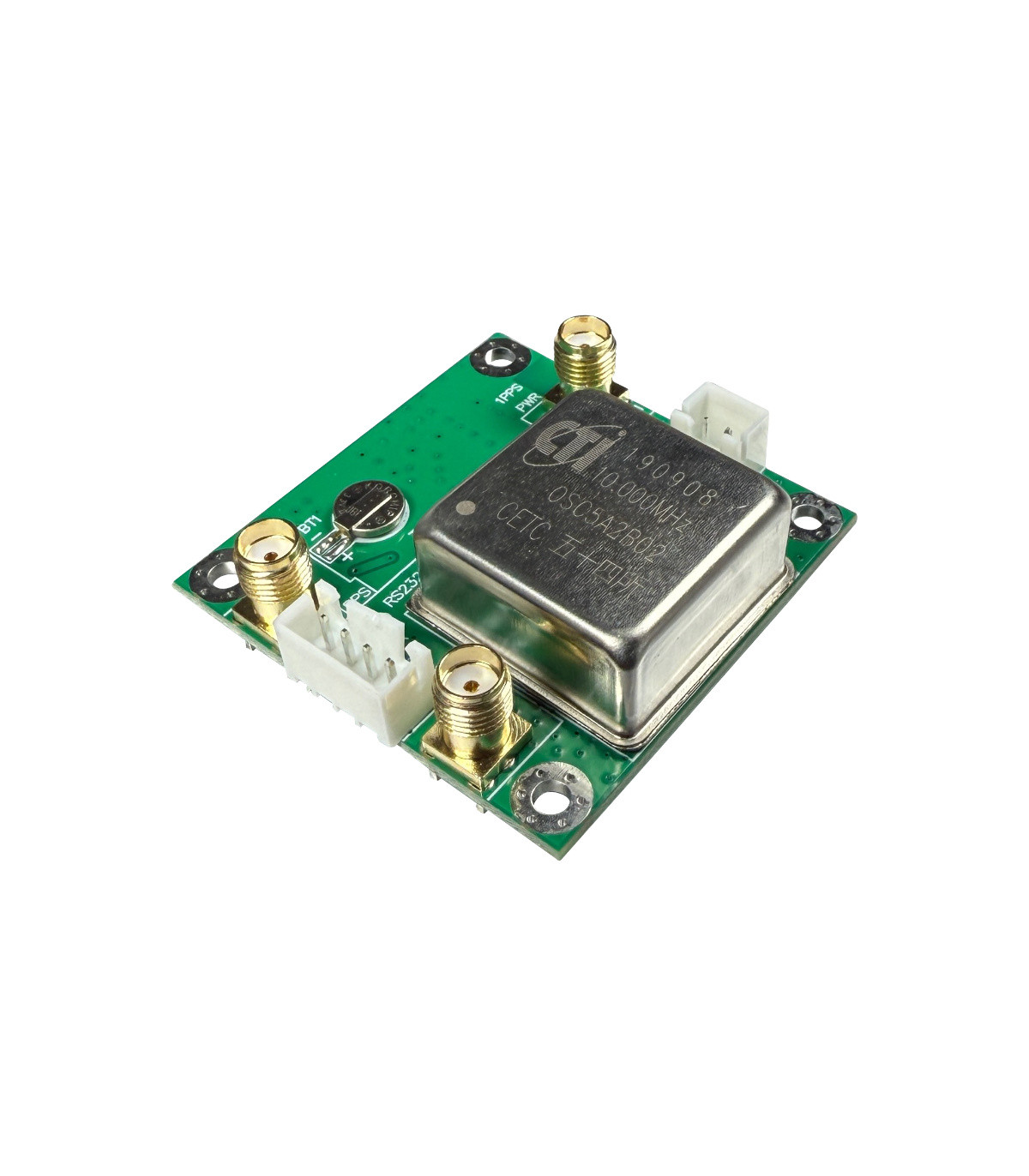

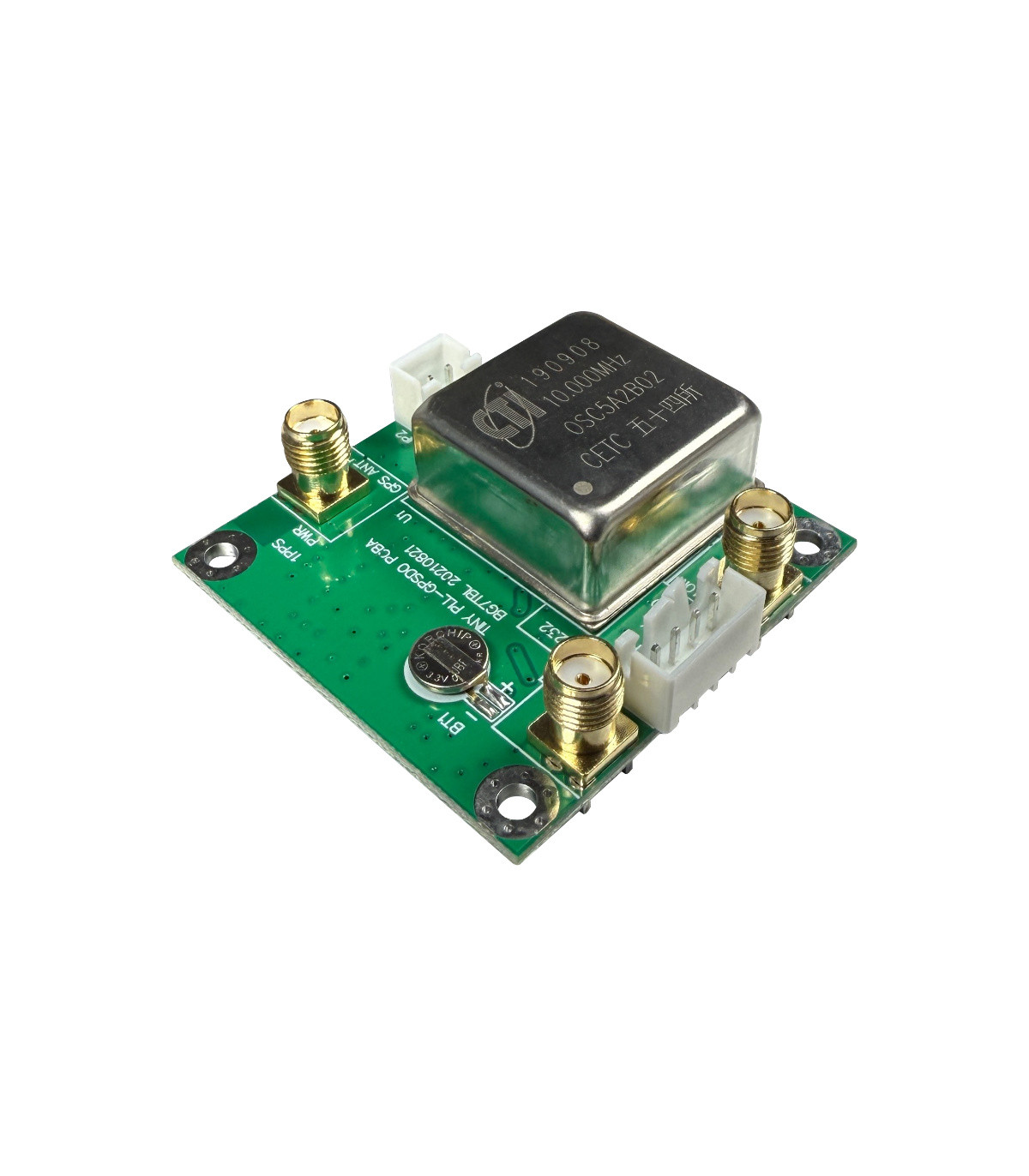

Tiny GPSDO PLL module

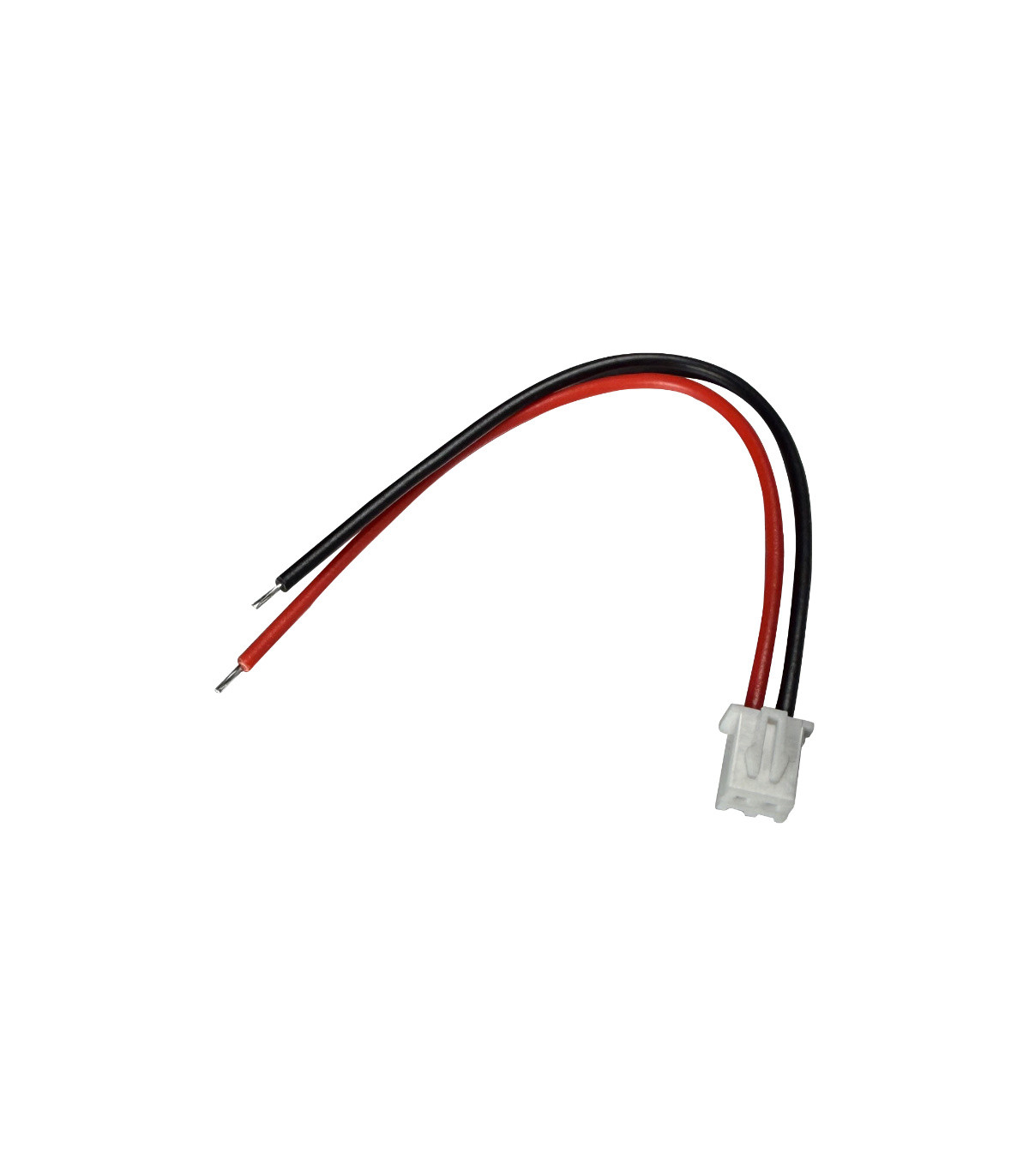

DC cable

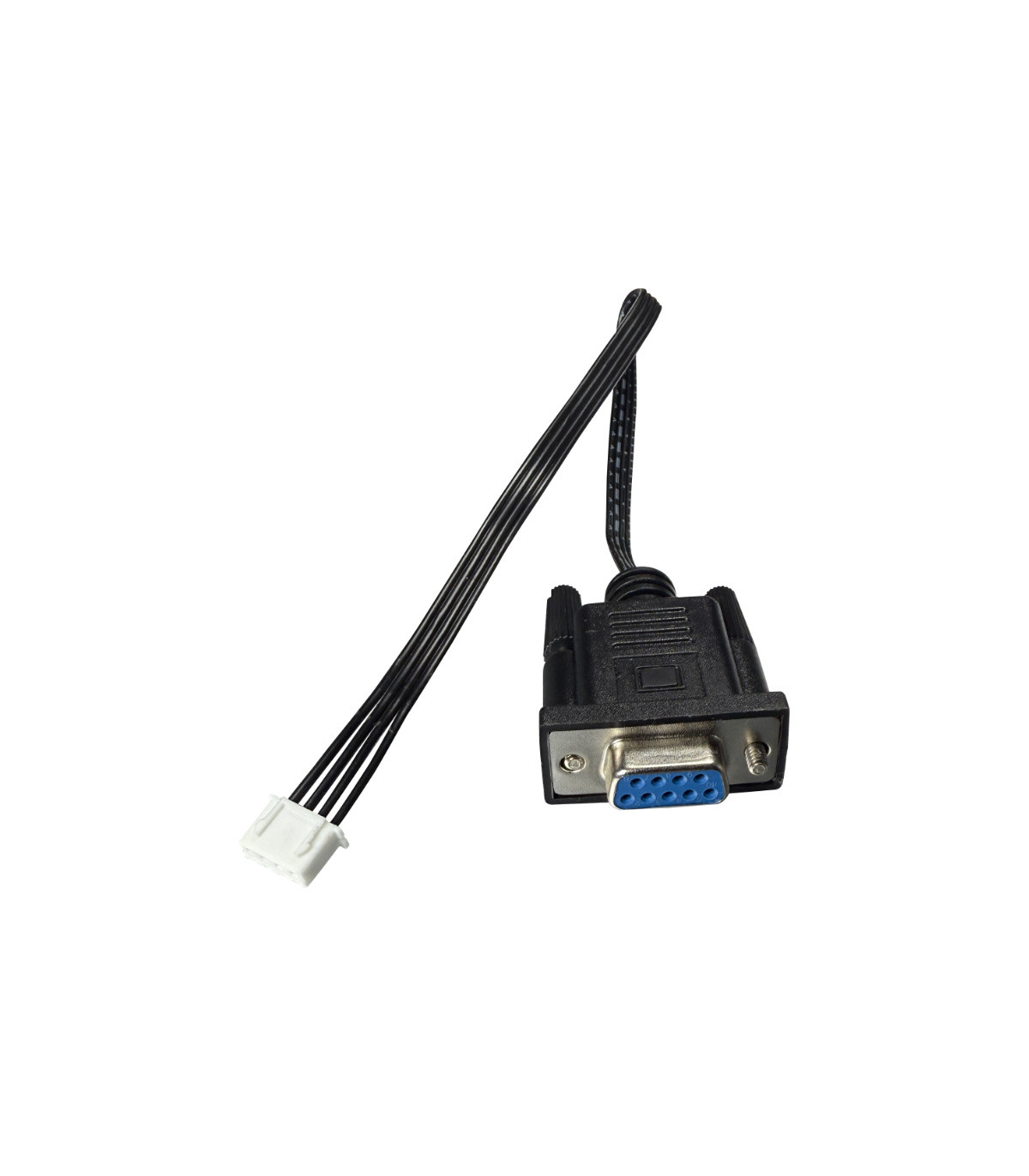

Adapter cable with D-SUB 9 for GPS NMEA RS232 date
