10 MHz Rubidium Frequency Standard with GPS
High precision Atomic Clock Rubidium frequency source with extra GPS lock
966.79 €
(tax incl.)
966.79 €
799.00 € (without tax)
799.00 € (without tax)
Add to compare0
Love
Add to wishlist

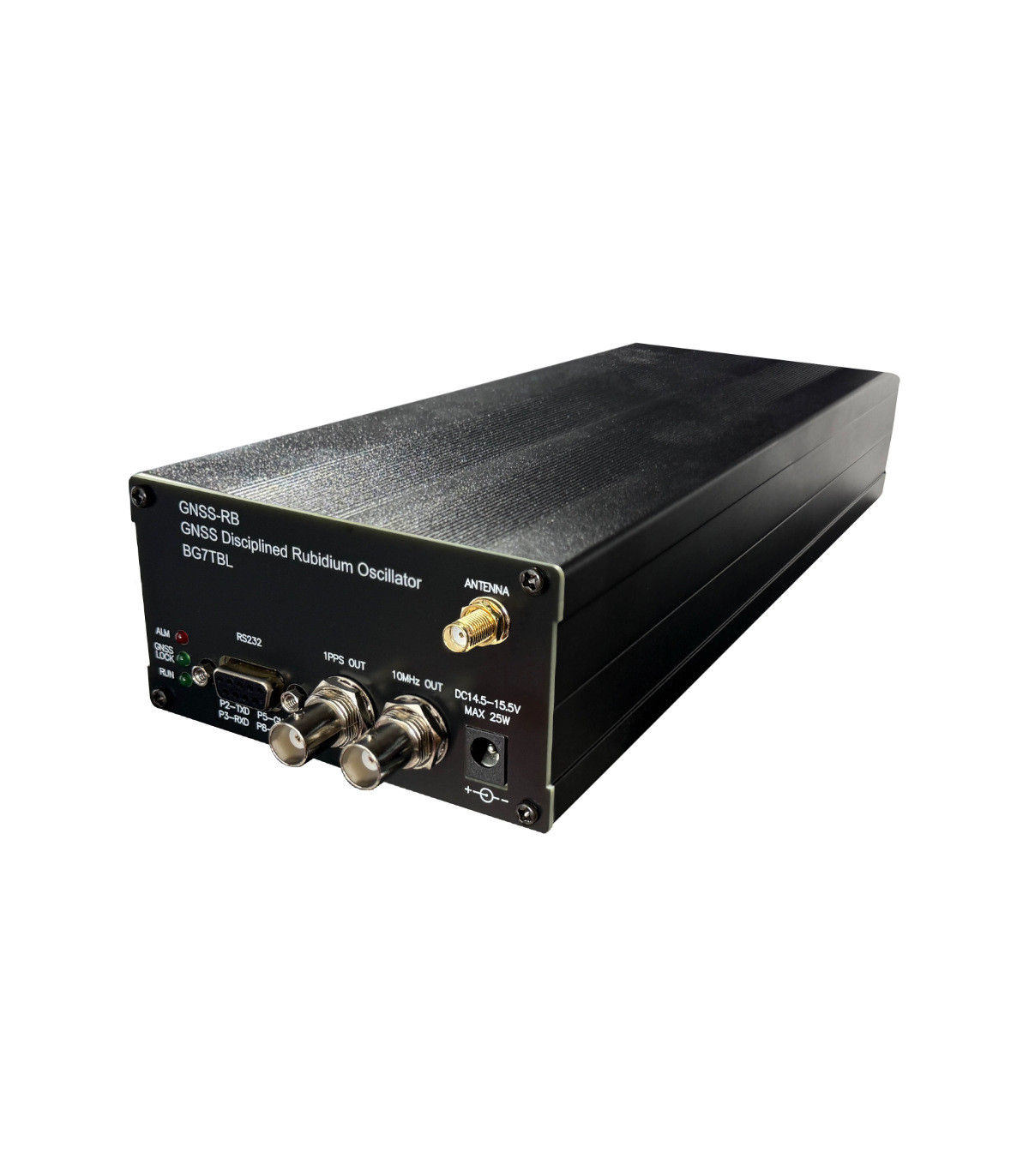

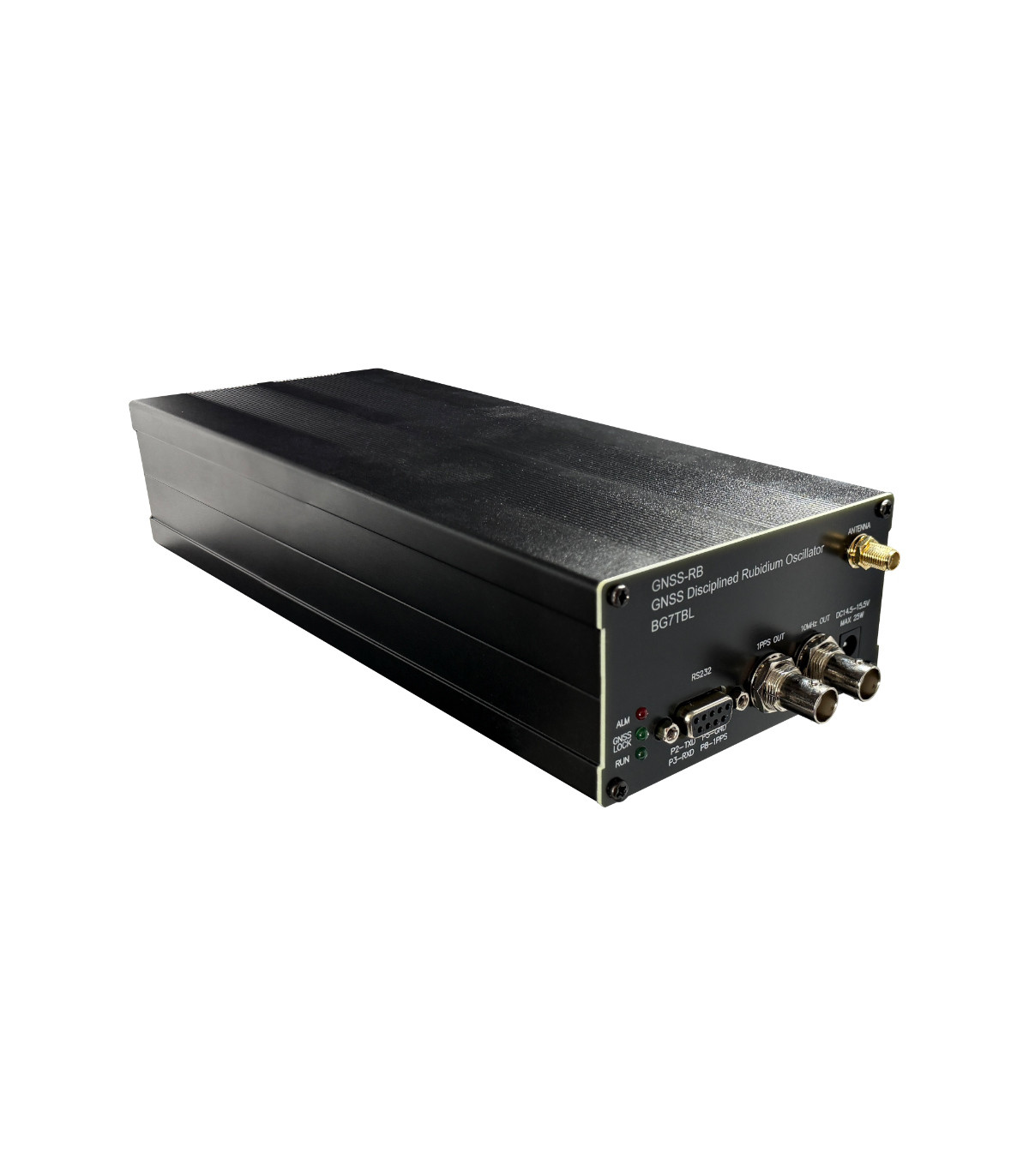

This is a highly accurate frequency standard based on a professional rubidium portable module, which is fine-tuned by a built-in GPS module. The rubidium standard itself is very accurate, but thanks to GPS synchronization, even greater frequency accuracy can be achieved. It also includes a 1 pps signal output and NMEA data. The package includes an outdoor GPS antenna with a magnet and a 5 m long coaxial cable. This frequency standard is an ideal reference signal source for laboratories or SDRs.
Main functions
- 10 MHz frequency standard
- GPS fine-tune accuracy
- Reference signal for your Lab
- SDR RX/TRX reference source
Parameters
- Supply voltage: DC 14.5 - 15.5 V / ≤ 25 W
- GPS antenna voltage: DC 5 V/0.1 A
- Output 1PPS signal: square wave, 3.3 Vpp
- 10 MHz output sine wave
- 10 MHz output power: 13 dBm +/- 2 dB
- Outputs BNC female
- LED indication
- RS232 output: signal GPS NMEA, 9600 bps
- Final accuracy typ. 2e-11 (0.0002hz @ 10MHz) < 24 hours
- Rubidium portable module typ. Symmetricon
- DC jack 5.5 x 2.1 mm
- Dimensions: 107 x 55 x 290 mm (W x H x L including connectors)
- DC plug included

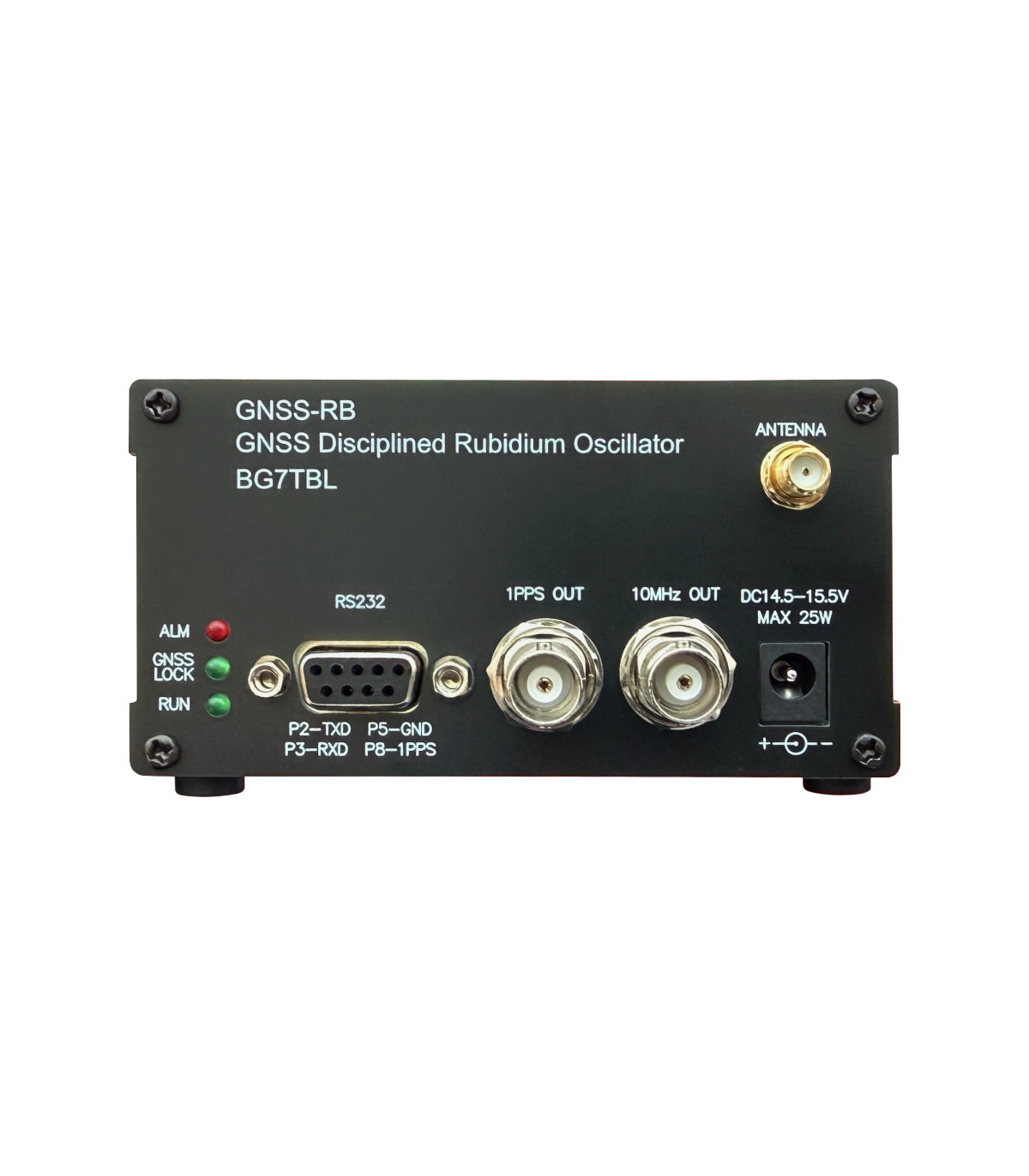

LED indicators
- ALM:
- Flash = Rb not locked
- ON = Rb deviation > 0.001 Hz
- OFF = Rb deviation < 0.001 Hz
- GNSS LOCK:
- ON = GPS locked
- OFF = GPS unlocked
- RUN:
- Flash = system running OK
Warm up start
- The first start in new location can take around 10 minutes
- Depends on satellite count and GPS antenan position
- There is also warm up time for Rb module
RECOMMENDATIONS TO BUY:
- SMA-BNC cable (total length about 50 cm)

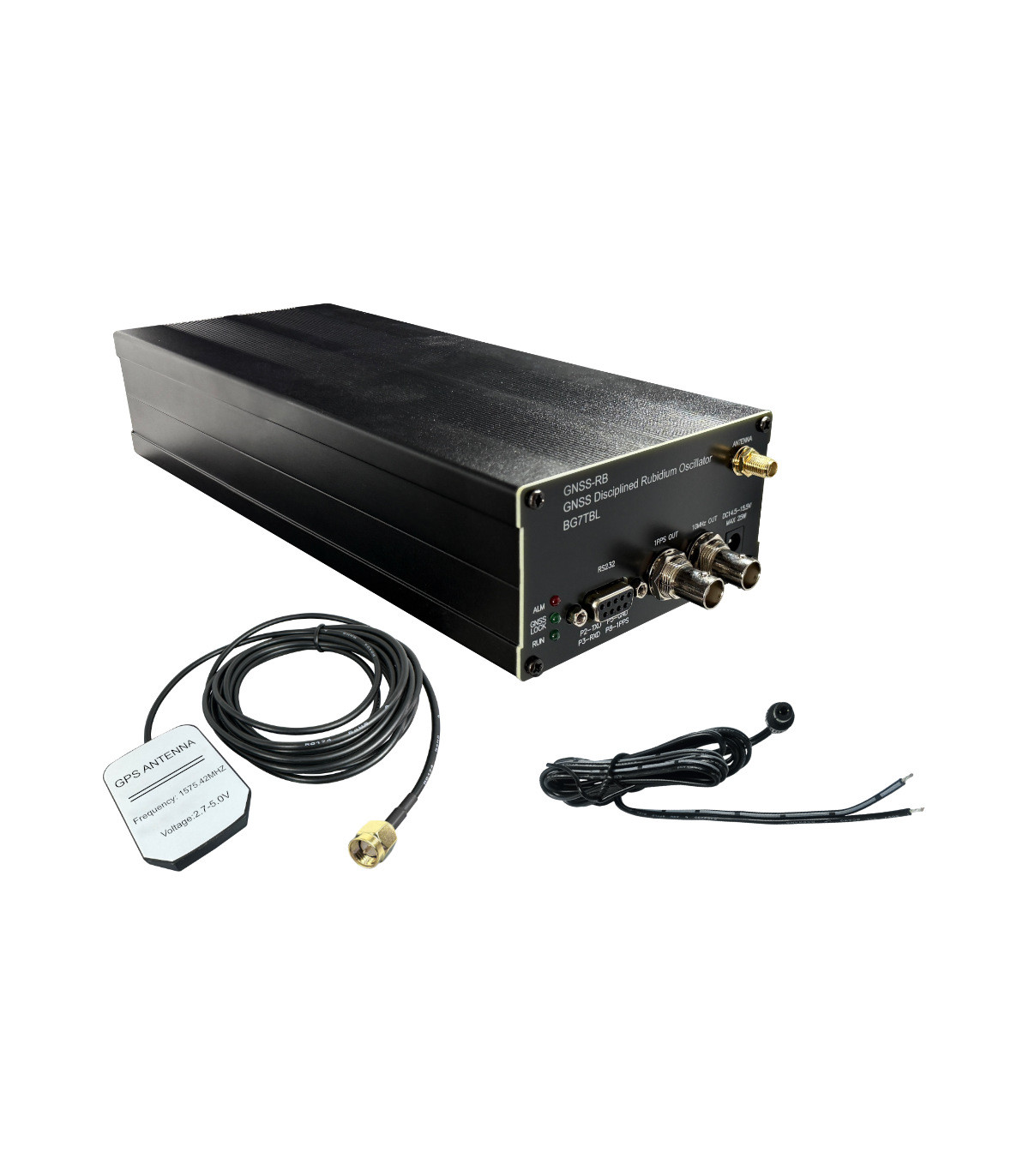

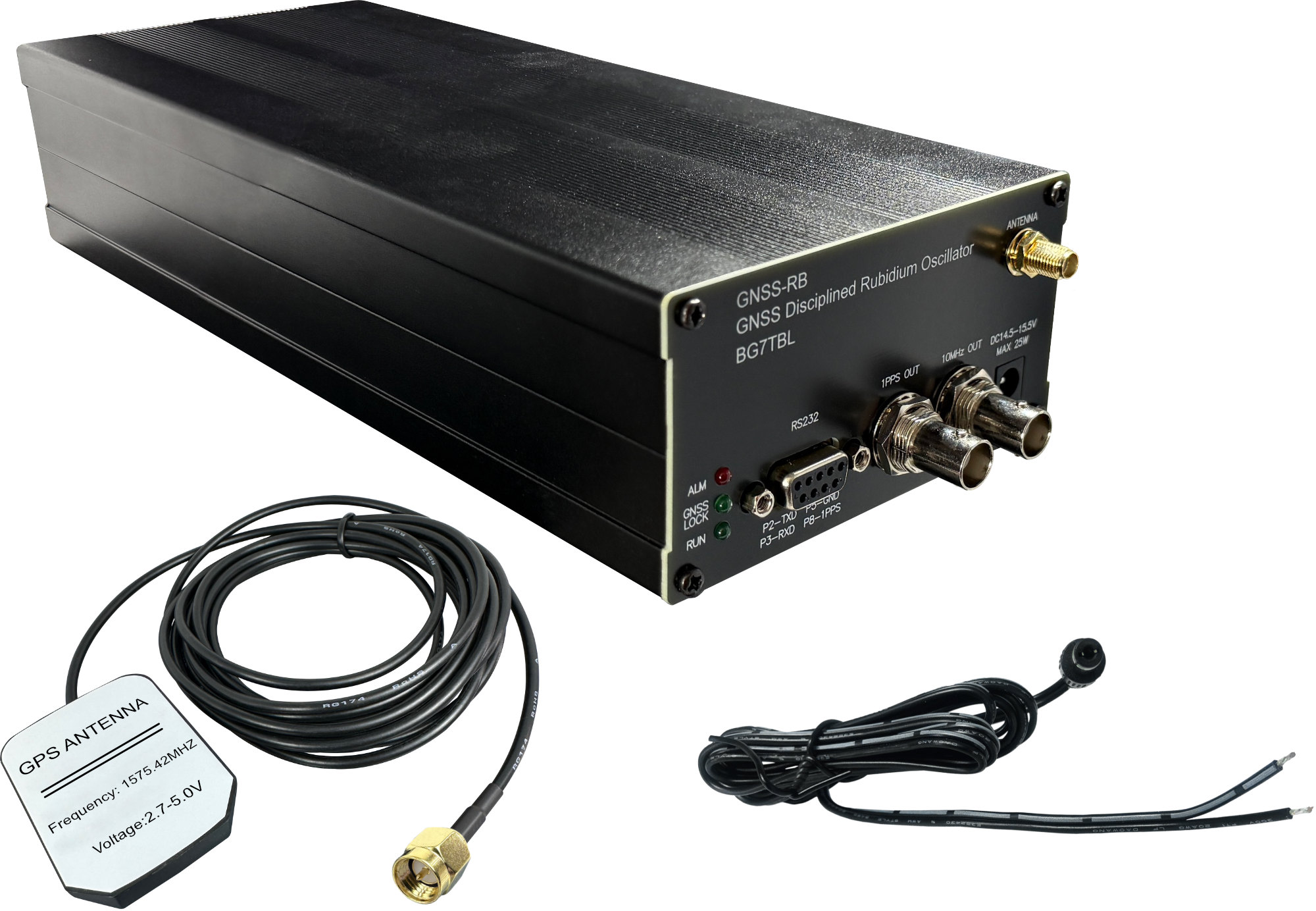

Included in package
Rubidium standard

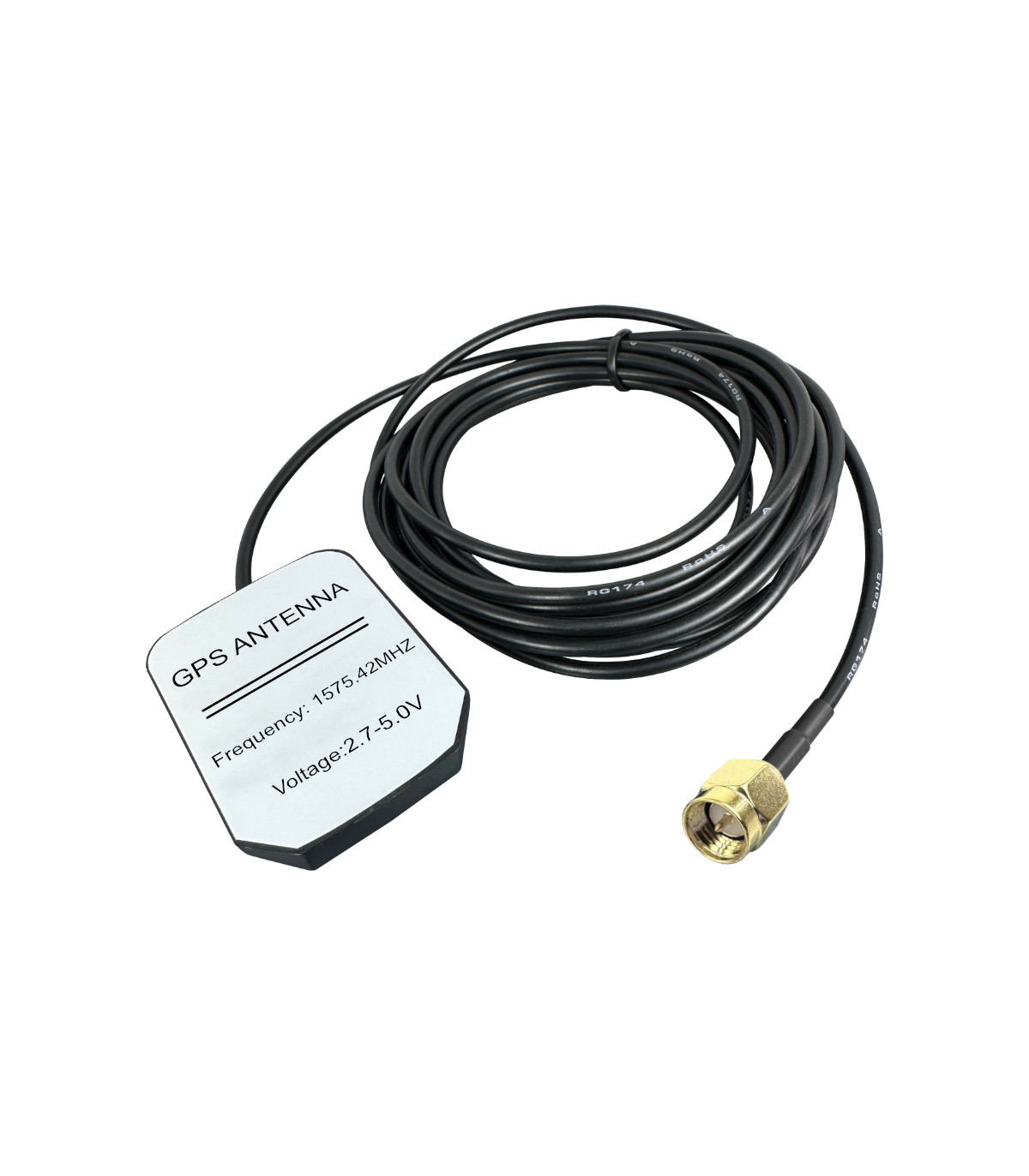

GPS antenna 5m long

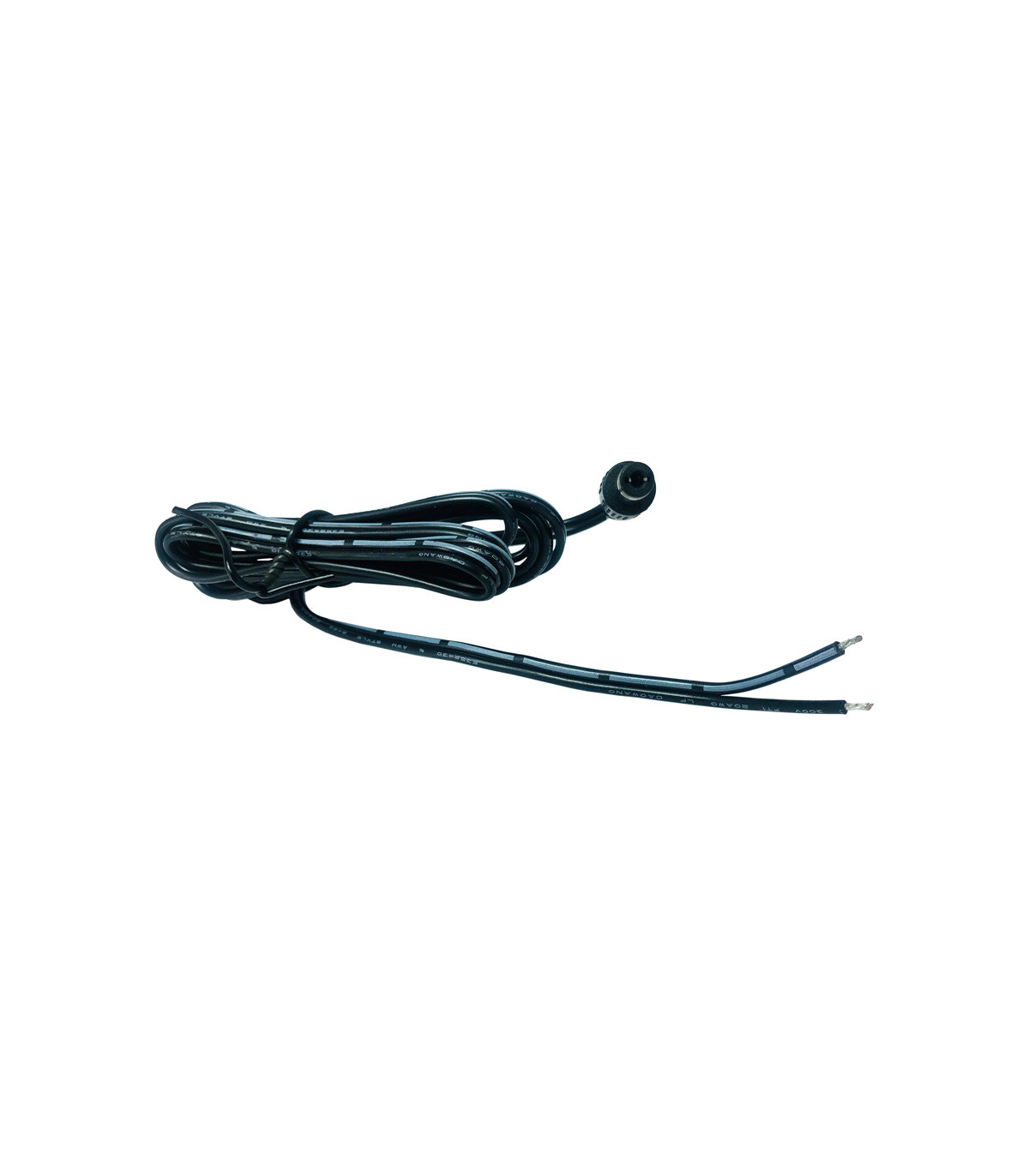

DC plug cable
