Remote RX antenna switch
- custom production -
This switch was made for Christoph OE2CRM. He is trying to catch the broadcast stations from all over the world at Medium Wave (MW) and Short Wave (SW). His remote QTH needed hardware to control all of his RX antennas including Bi-directional beverages, different RX loops, single wire beverages and also remote preamplifier boxes with power over coax placed in feed point of RX antenna.
This project has started in 2016 and used Remote manual IP SWITCH from RemoteQTH.com. After 5 years we upgraded IP Switching to Web-based one with much more features. Web-based relay box with Raspberry Pi 4 allows to control unlimited numbers of IP switches with customize lables, groups profiles. Switching can be done by web, mobile app or hardware switch keypad.
This project has started in 2016 and used Remote manual IP SWITCH from RemoteQTH.com. After 5 years we upgraded IP Switching to Web-based one with much more features. Web-based relay box with Raspberry Pi 4 allows to control unlimited numbers of IP switches with customize lables, groups profiles. Switching can be done by web, mobile app or hardware switch keypad.
We designed web-based remote controlled 9 RX antenna switch with common-mode filters, preamplifiers and build-in bias tee. There is the possibility of use time scheduled switching for easy operation.

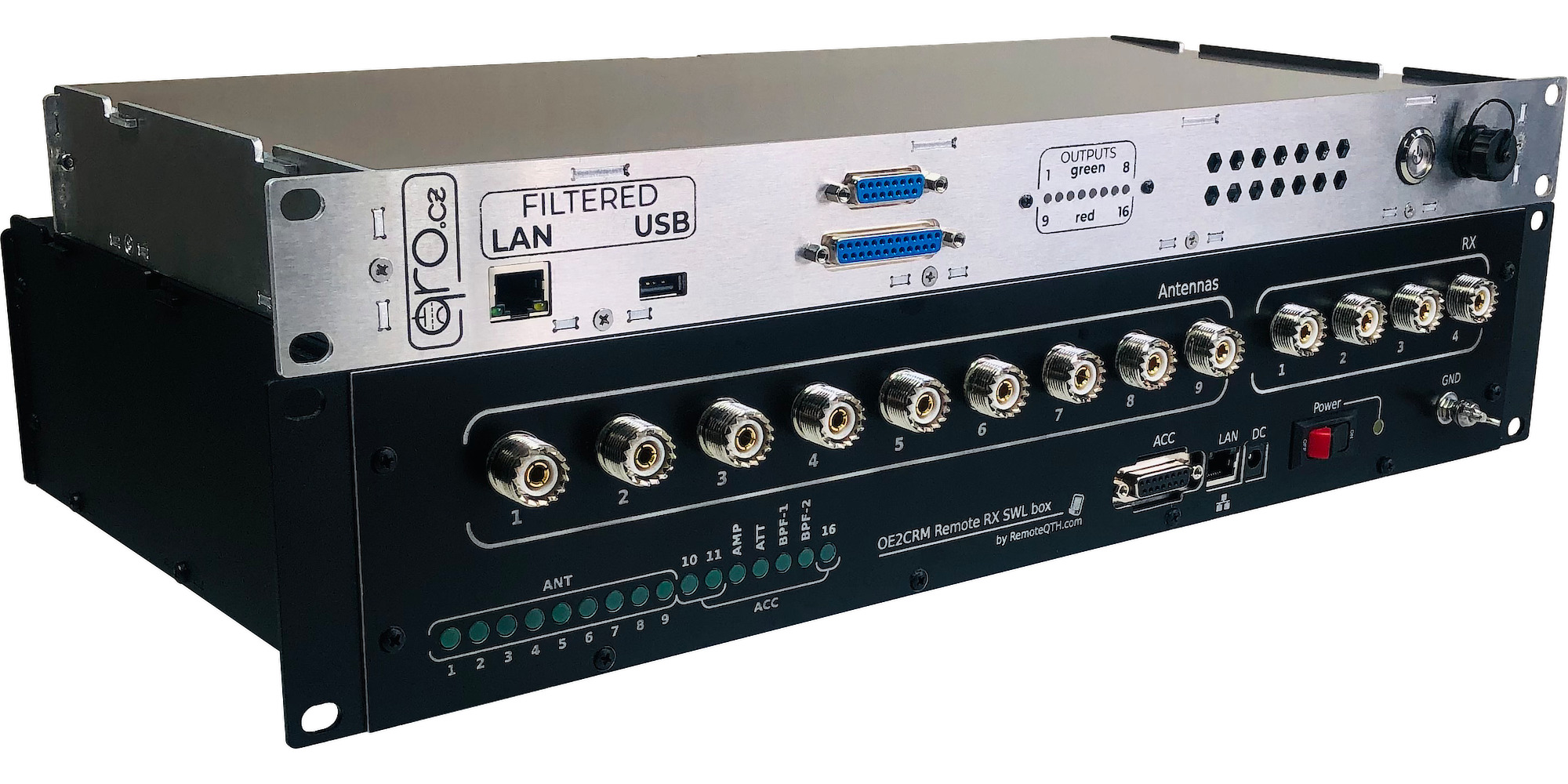

Remote 9 RX antenna switch box
function: antenna switch
date: 2016, upgrade May 2021
date: 2016, upgrade May 2021
- up to 9 RX antennas
- common-mode filters & protections
- build-in bias tee 12V out
- preamplifier 18dB & ATT 10dB
- LPF & BPF for MW & SW
Customized design of filters
Low, band, notch filters to meet your requirements.
Web-based switch box
function: web-based relays
date: May 2021
date: May 2021
- based at remoteSwitch.de
- unlimited remote switches/bands
- customize all lables
- create groups, profiles
- time scheduled switching
- filtered LAN & USB
- VPN
External relays connector PINOUT

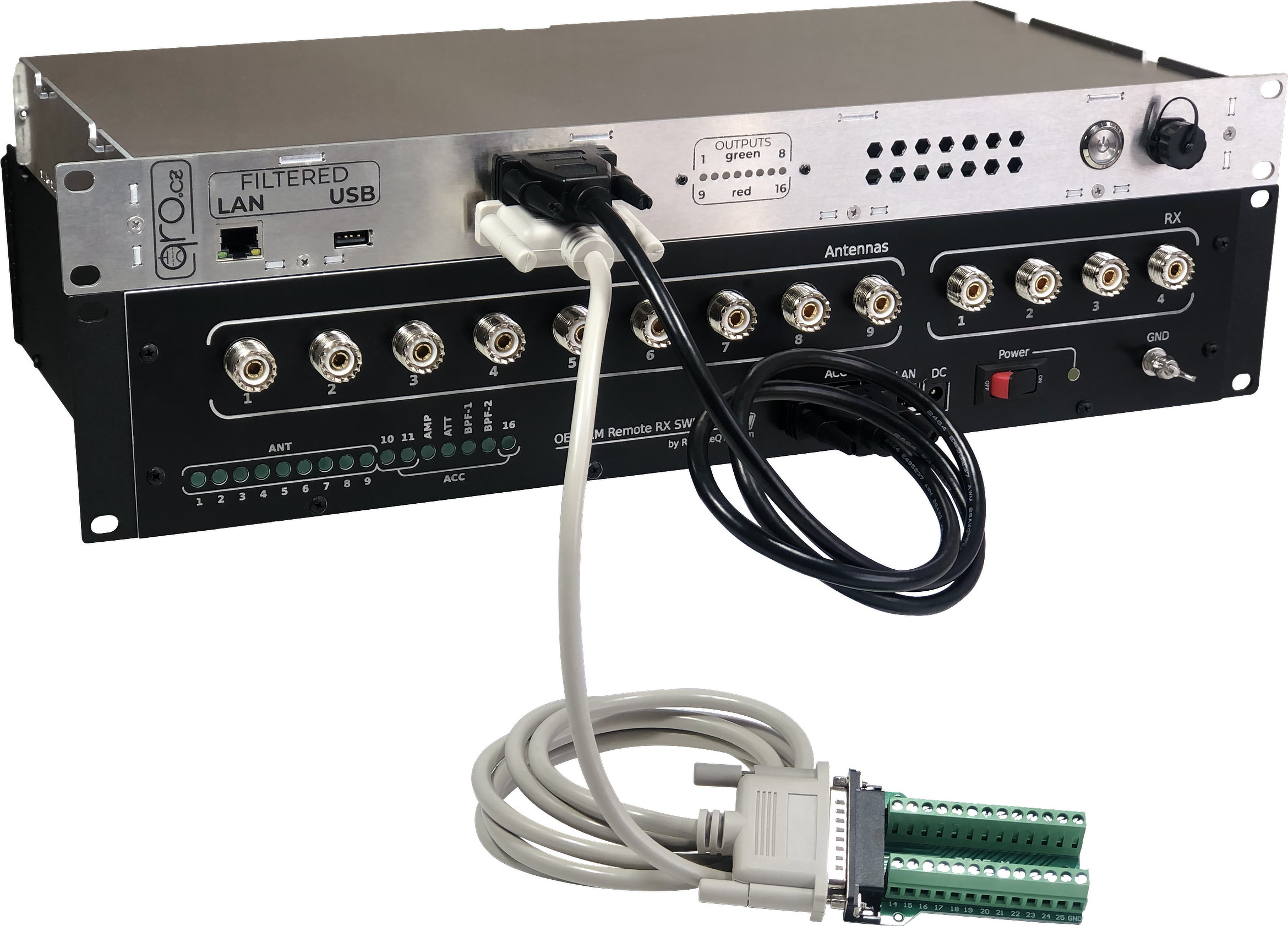

There is 25PIN female DB connector with output voltage, NO & NC relay contacts - controlled by webpage.
Example of web buttons
This is example with two banks for antenna switch and external relays. Fully configurable as ON/OFF, and one of x switch. This system is able to grow with your demands.
