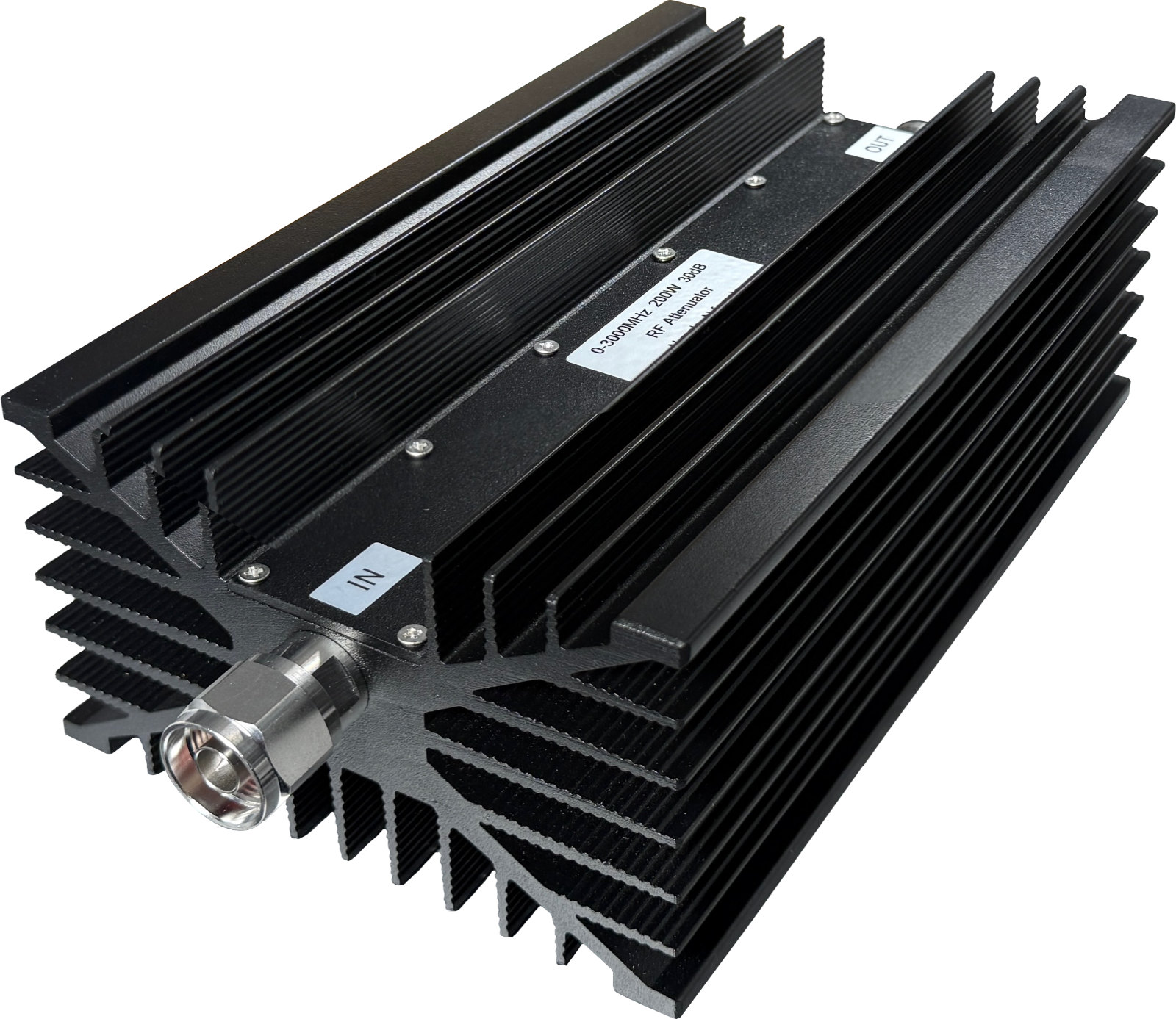

Attenuator 30dB 200W 3GHz

High power coaxial attenuator with N connectors

Read moreShow less
127.05 € (tax incl.)
127.05 €
105.00 € (without tax)
in stock, shipped in 2-3 days

Price history     Price history

The lowest price in the 30 last days was 127.05 €

Add to compare0
Add to wishlist

This is a power attenuator designed for measuring and testing purposes. The built-in attenuation is 30dB and can withstand power loads up to 200W.


  • Impedance: 50 Ohm
  • Frequency: DC to 3 GHz
  • Power rating: max. 200 W
  • Maximal attenuator error: 0.8 dB
  • Maximal SWR: 1:1.2
  • Connector: N male & N female
  • Input: N male
  • Output: N female
  • VSWR: ≤ 1.2
  • Temperature range: -55 to +125 ℃
  • Working temperature range: up to 85 ℃
  • Dimensions: 245x65x14 mm
  • Weight: 2.3 kg

NOTE: Make sure you have the right connection. The input port is labeled IN and is an N male connector. This port is capable of handling up to 200W of RF power. Otherwise, the attenuator will be destroyed.

POWER LOAD: For continuous power loads of more than 50W, the heatsink must be fan blown to ensure heat dissipation!

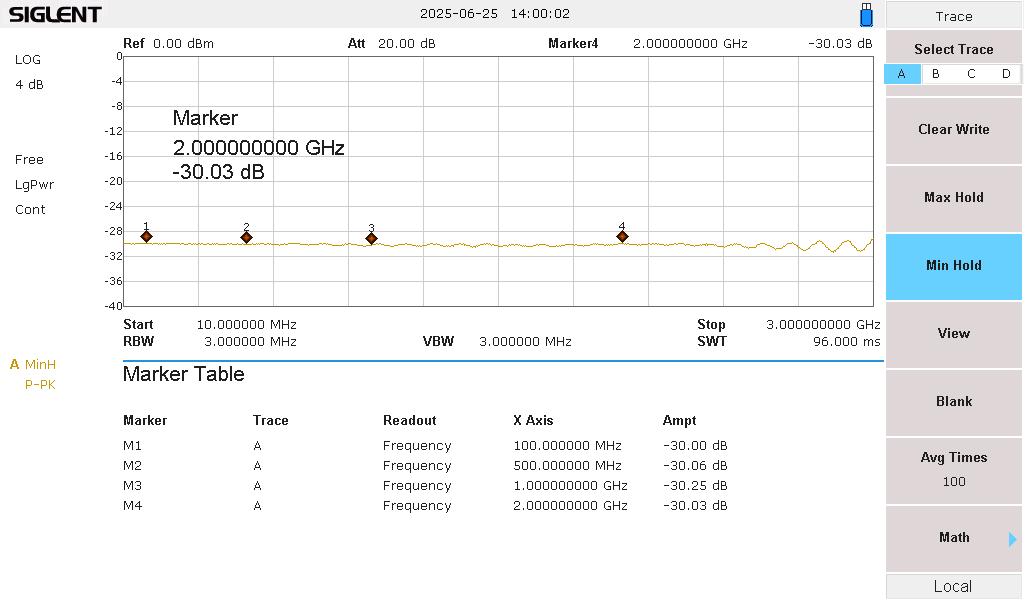

Attenuation to 1.5 Ghz

high power attenuator 30db 200w 3ghz measurement qro.cz hamparts.shop

S11 matching to 1.5 GHz

high power attenuator 30db 200w 3ghz measurement qro.cz hamparts.shop

high power attenuator 30db 200w 3ghz qro.cz hamparts.shop

Read moreShow less
Product Details

Data sheet

50 Ohm
frequency range
DC to 3 GHz
connector type
N female
N male
product weight (brutto)
2.5 kg
package dimensions
29x17x9 cm
